ISCAR Cutting Tools - Metal Working Tools - AVC-SDUCR/L : 3331863

Geometry Checker ×

Family Designation: AVC-SDUCR/L

Interchangeable boring heads carrying 55° rhombic inserts with 7° clearance.

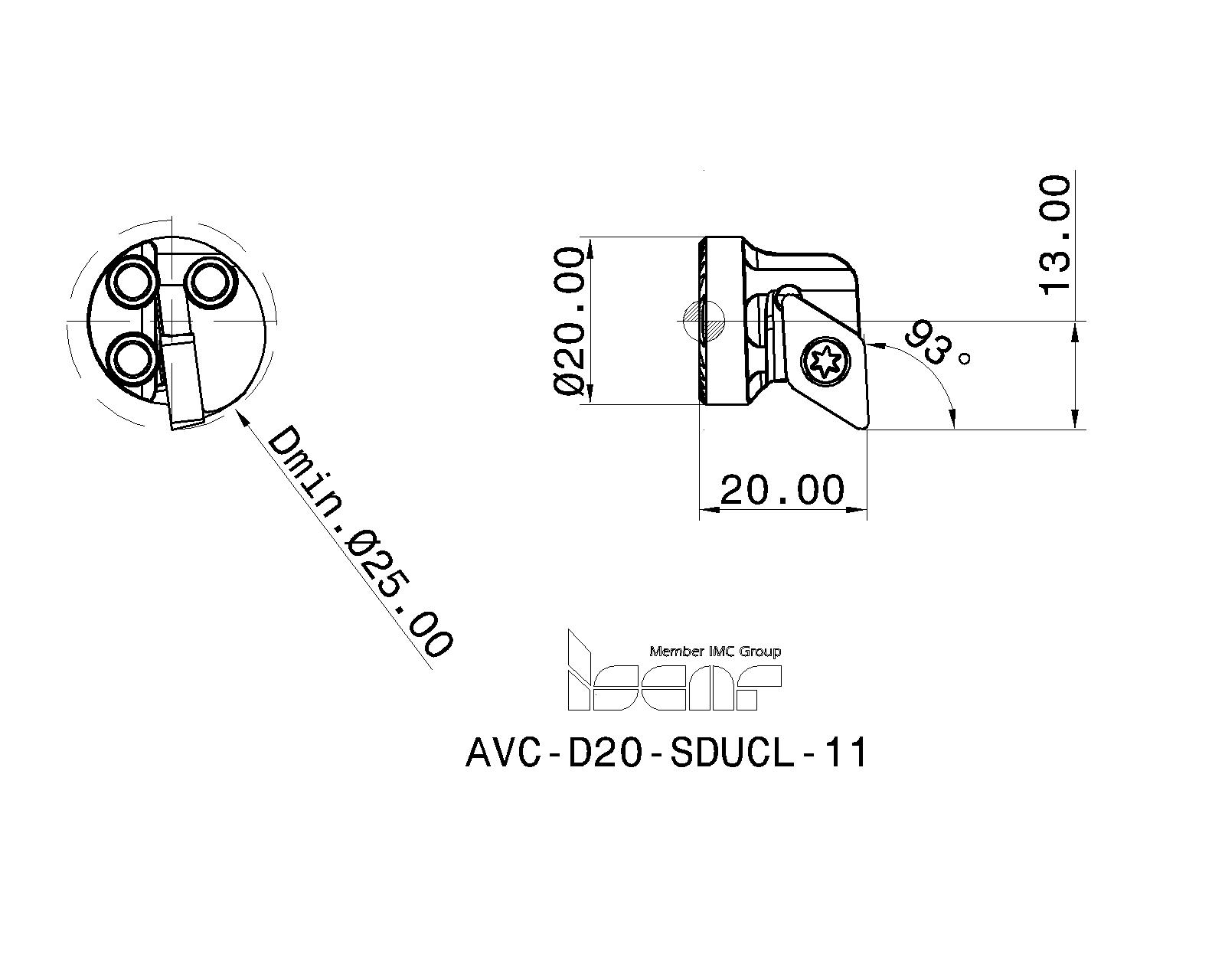

Representative Image

Item Designation: AVC-D20-SDUCL-11

SSC	WF	DCONMS	DMIN	LF	KAPR	IC	HAND	CSP	OAL	MIID	CCMS	GICAT	GIREM	giic
11~	13.00	20.00	25.00	20.00	93.0~	9.52~	L~	0	~	DCMT 3-2-14	CMS01C0200$$$$~	3331863		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3331863		1	144	344				<a href="javascript:OpenDxf('3331863', 'AVC-D20-SDUCL-11' , 'IscarDxf' , '3331863-AVC-D20-SDUCL-11');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3331863&itemDesc=AVC-D20-SDUCL-11"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3331863&itemDesc=AVC-D20-SDUCL-11"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>

Items Per Package : 1

Spare Parts
	7000225	SR 16-236 P (Optional, should be ordered separately)	Torx screw	Details
General recommendation for tightening torque:3 N*m
	7000265	T-15/5 (Optional, should be ordered separately)	Torx key flag	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
