Family Designation: AVC-DDUNR/L

Interchangeable boring heads carrying 55° rhombic inserts.

COOLANT THROUGH TOOL

Item Designation: AVC-D40-DDUNL-15T

SSC	WF	DCONMS	DMIN	LF	KAPR	IC	HAND	OAL	MIID	S	CCMS	CSP	GICAT	GIREM	giic
15~	27.00	40.00	50.00	38.00	93.0~	12.70~	L~	~	DNMG 442-F3M	6.35~	CMS01C0400$$$$~	1	3332992	DMIN of 50mm shank is DMIN of requested head + 10mm. DMIN of 60mm shanks is DMIN of requested head + 20mm	0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3332992		1	4	408				<a href="javascript:OpenDxf('3332992', 'AVC-D40-DDUNL-15T' , 'IscarDxf' , '3332992-AVC-D40-DDUNL-15T');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3332992&itemDesc=AVC-D40-DDUNL-15T"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3332992&itemDesc=AVC-D40-DDUNL-15T"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
DMIN of 50mm shank is DMIN of requested head + 10mm. DMIN of 60mm shanks is DMIN of requested head + 20mm

Items Per Package : 1

3D Representation	Light Detailed	3D Required

Assembly Video

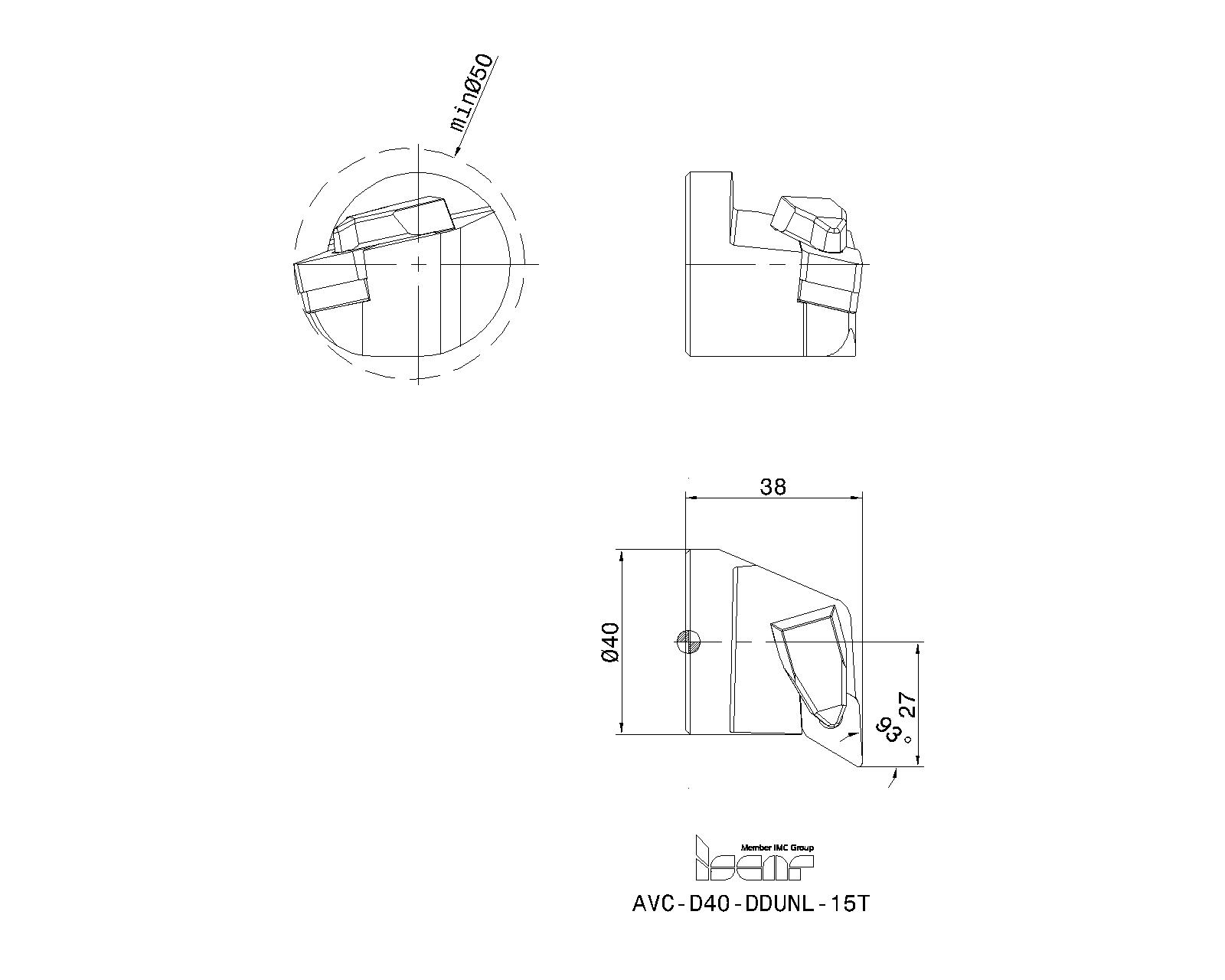

2D Representation	ISO	2D Required

Spare Parts
	5505710	RDT 433 (Optional, should be ordered separately)	55° Rhombic seats
	5505709	RDT 443 (Optional, should be ordered separately)	55° Rhombic seats
	7004794	DLS 4 (Optional, should be ordered separately)	Right-left screw	Details
	7000208	SR 14-506 M4X0.7 (Optional, should be ordered separately)	Torx screw	Details
Recommended tightening torque:2.5 N*m
	7000039	HW 3.0	Hex key	Details
	7000265	T-15/5 (Optional, should be ordered separately)	Torx key flag	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
	7004795	DLM 4 (Optional, should be ordered separately)	R-Clamp	Details
	7004793	DSP 4 (Optional, should be ordered separately)	Clamp spring	Details
