Family Designation: SCHR/L-41BF Grooving and turning tools with back and front clamping for Swiss-type and automatic machines.

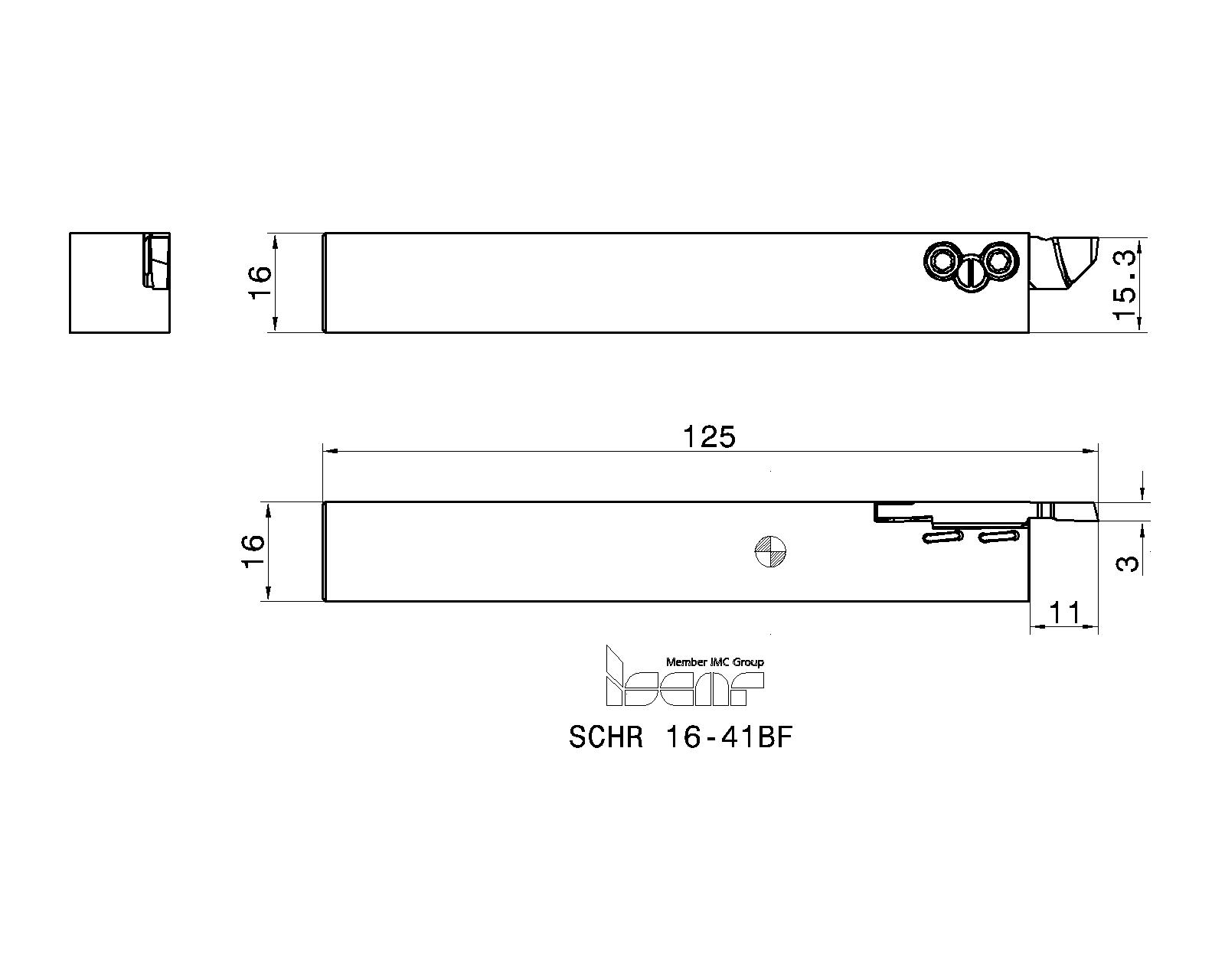

Right-hand shown
Right-hand shown
Item Designation: SCHR 16-41BF
3.0011.0016.0~16.0125.001.00~R~~3333598 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia
3333598 1160368<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3333598&cat=3333598&itemDesc=SCHR 16-41BF"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a><a href="javascript:OpenDxf('3333598', 'SCHR 16-41BF' , 'IscarDxf' , '3333598-SCHR 16-41BF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3333598&itemDesc=SCHR 16-41BF"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3333598&itemDesc=SCHR 16-41BF"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
3D Representation
2D Representation
  Spare Parts
3310542SR M4.5X0.75-L7.9Torx screw
7002096BLD T15/S7Torx blade
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
3314212SR M2X0.4-L3.5Screw
7002451BLD T10/S7Torx blade
For limiting torque, use optional 7007383 BLD 4 T10-3.2NM blade & 7007321 HSD 4-3.2NM handle.
