Family Designation: SCHR/L-41BF

Grooving and turning tools with back and front clamping for Swiss-type and automatic machines.

Right-hand shown

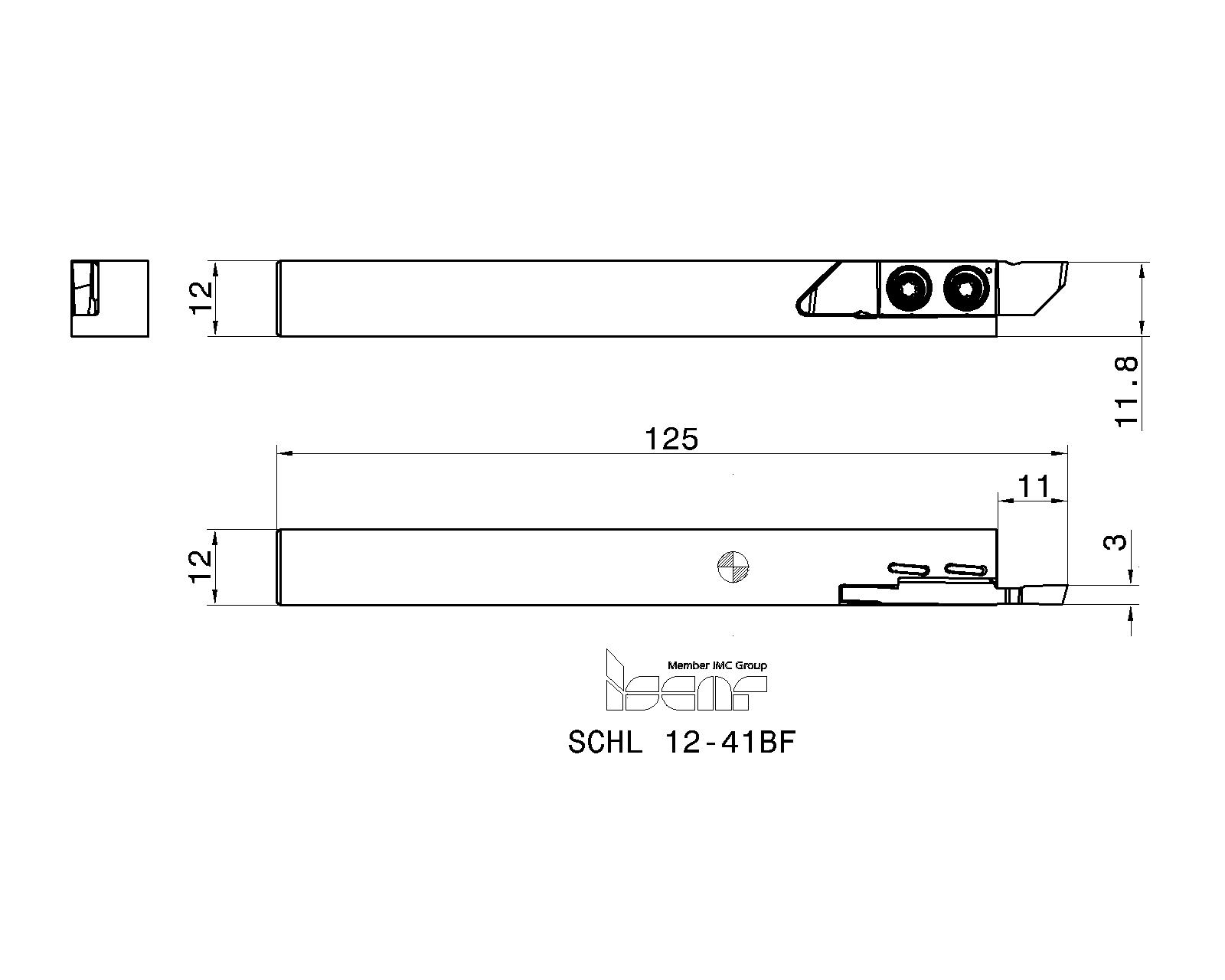

Item Designation: SCHL 12-41BF

CWX	CDX	H	B	OAL	CWN	HAND	APMX	GICAT	GIREM	giic
3.00	11.00	12.0~	12.0	125.00	1.00~	L~	~	3333599		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3333599		1	0	18				<a href="javascript:OpenDxf('3333599', 'SCHL 12-41BF' , 'IscarDxf' , '3333599-SCHL 12-41BF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3333599&itemDesc=SCHL 12-41BF"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3333599&itemDesc=SCHL 12-41BF"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

Spare Parts
	3310542	SR M4.5X0.75-L7.9	Torx screw	Details
	7002096	BLD T15/S7	Torx blade	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
	3314212	SR M2X0.4-L3.5	Screw	Details
	7002451	BLD T10/S7	Torx blade	Details
For limiting torque, use optional 7007383 BLD 4 T10-3.2NM blade & 7007321 HSD 4-3.2NM handle.
	7002244	SW6-SD	Handle	Details
