ISCAR Cutting Tools - Metal Working Tools - HSK-C# : 3335422

Geometry Checker ×

Family Designation: HSK-C#

CAMFIX (ISO 26623-1) holders with HSK ISO 12164-3 form A Tapered shanks.

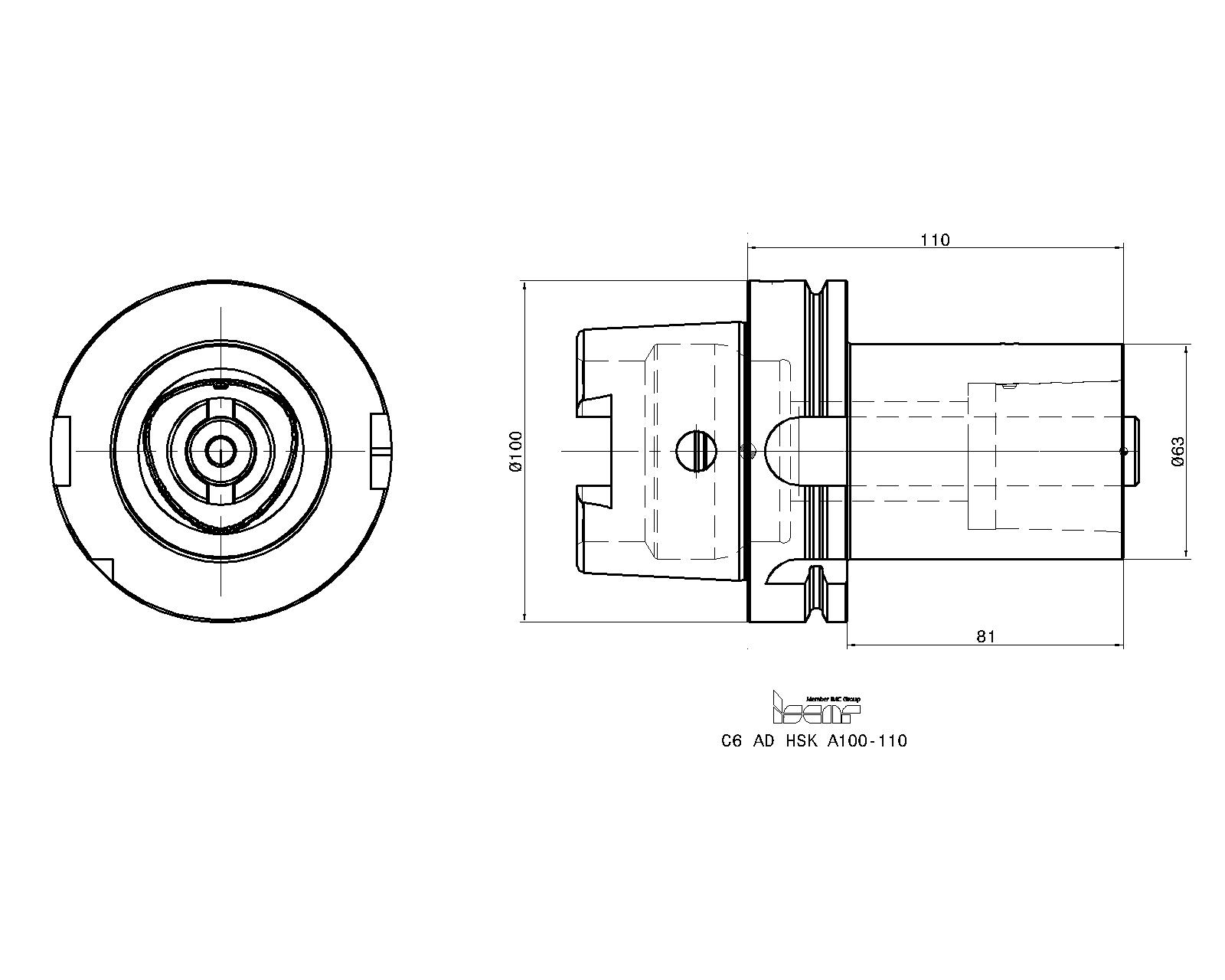

Item Designation: C6 AD HSK A100-110

DCONMS	DCONWS	LPR	LB	CDI		CSP	CCMS	GICAT	GIREM	giic
100.00	63.00	110.00	81.00	1	4.00	1~	HSK01C1000~	3335422	DIN69893-A	0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3335422		3	0	7				<a href="javascript:OpenDxf('3335422', 'C6 AD HSK A100-110' , 'IscarDxf' , '3335422-C6 AD HSK A100-110');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3335422&itemDesc=C6 AD HSK A100-110"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3335422&itemDesc=C6 AD HSK A100-110"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
DIN69893-A

Items Per Package : 1
Note: To enable clamping the part to be attached, first remove the cooling tube
