Family Designation: FFX4 ED

Endmills carrying small double-sided "bone shaped" inserts with 4 cutting edges for fast feed milling. Used for small size pockets milling.

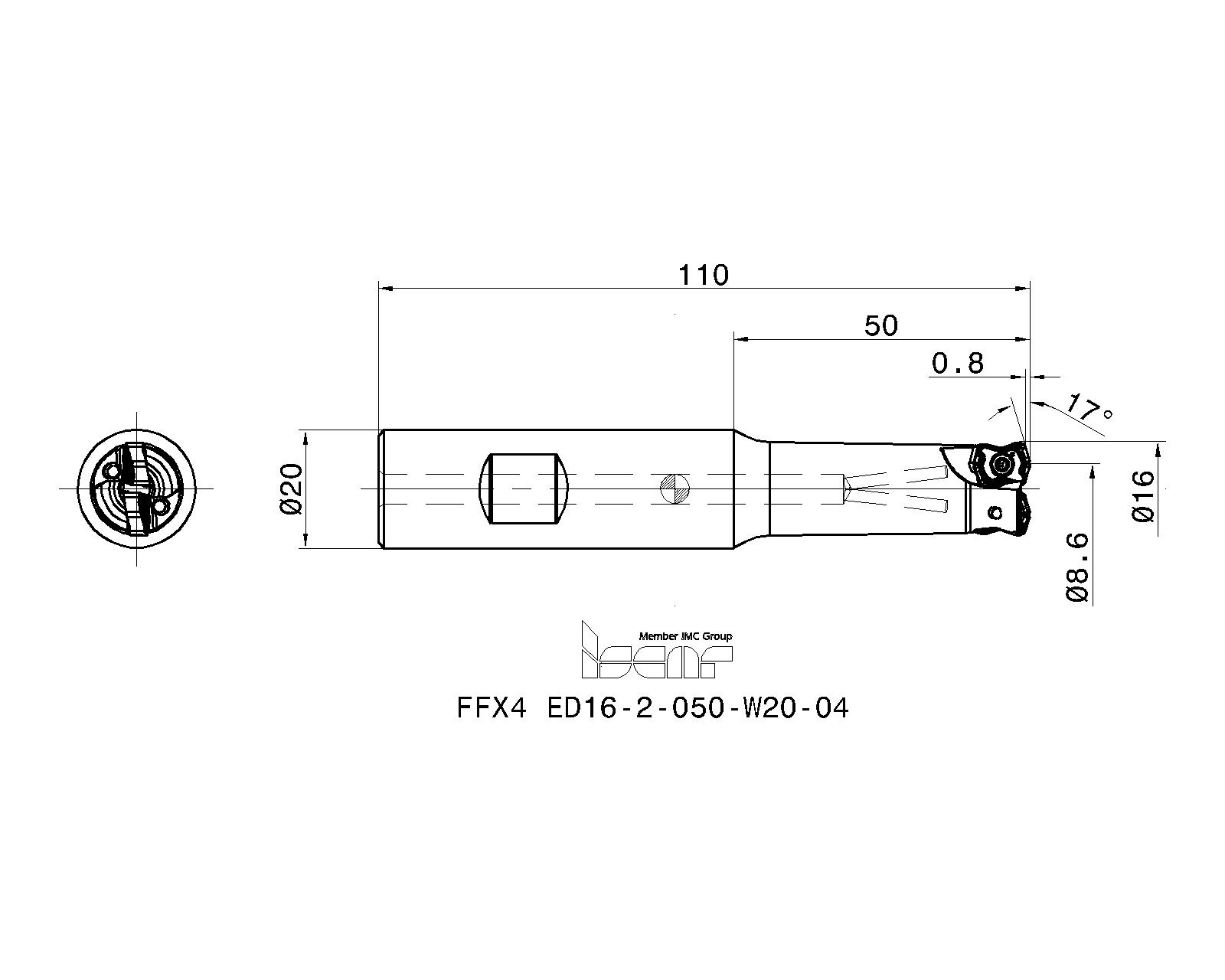

Item Designation: FFX4 ED16-2-050-W20-04

DCX	DC	APMX	AE	CICT	LH	KAPR	OAL	DCONMS	RMPX°	MDN	MDX	Shank	Rg	MIID		IC	NOF	CCMS	CSP	HAND	LU	ZEFF	GICAT	GIREM	giic
16.00	8.60	0.80	3.7	2	50.0	17.0	110.00	20.00	4.3	24.60	31.00	W	1.80	FFX4 XNMU 040310T	0.20	~	~	ZYL10G2000~	1~	~	~	~	3336672		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3336672		1	0	816				<a href="javascript:OpenDxf('3336672', 'FFX4 ED16-2-050-W20-04' , 'IscarDxf' , '3336672-FFX4 ED16-2-050-W20-04');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3336672&itemDesc=FFX4 ED16-2-050-W20-04"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3336672&itemDesc=FFX4 ED16-2-050-W20-04"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
To generate a straight surface without cusps, the width of cut must not exceed DC

Spare Parts
	7006316	SR M2.5X6-T7-60	Torx screw	Details
Recommended tightening torque:0.9 N*m
	7000270	T-7/51	Torx hand driver	Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
