ISCAR Cutting Tools - Metal Working Tools - ECK-H4M-CFR : 3338818

Geometry Checker ×

Family Designation: ECK-H4M-CFR

4 flute endmills with different helix (35° & 37°), chamfered cutting edges and variable pitch for chatter dampening with assorted radii. Used for high titanium removal rates. Full slot milling-up to 2XD.

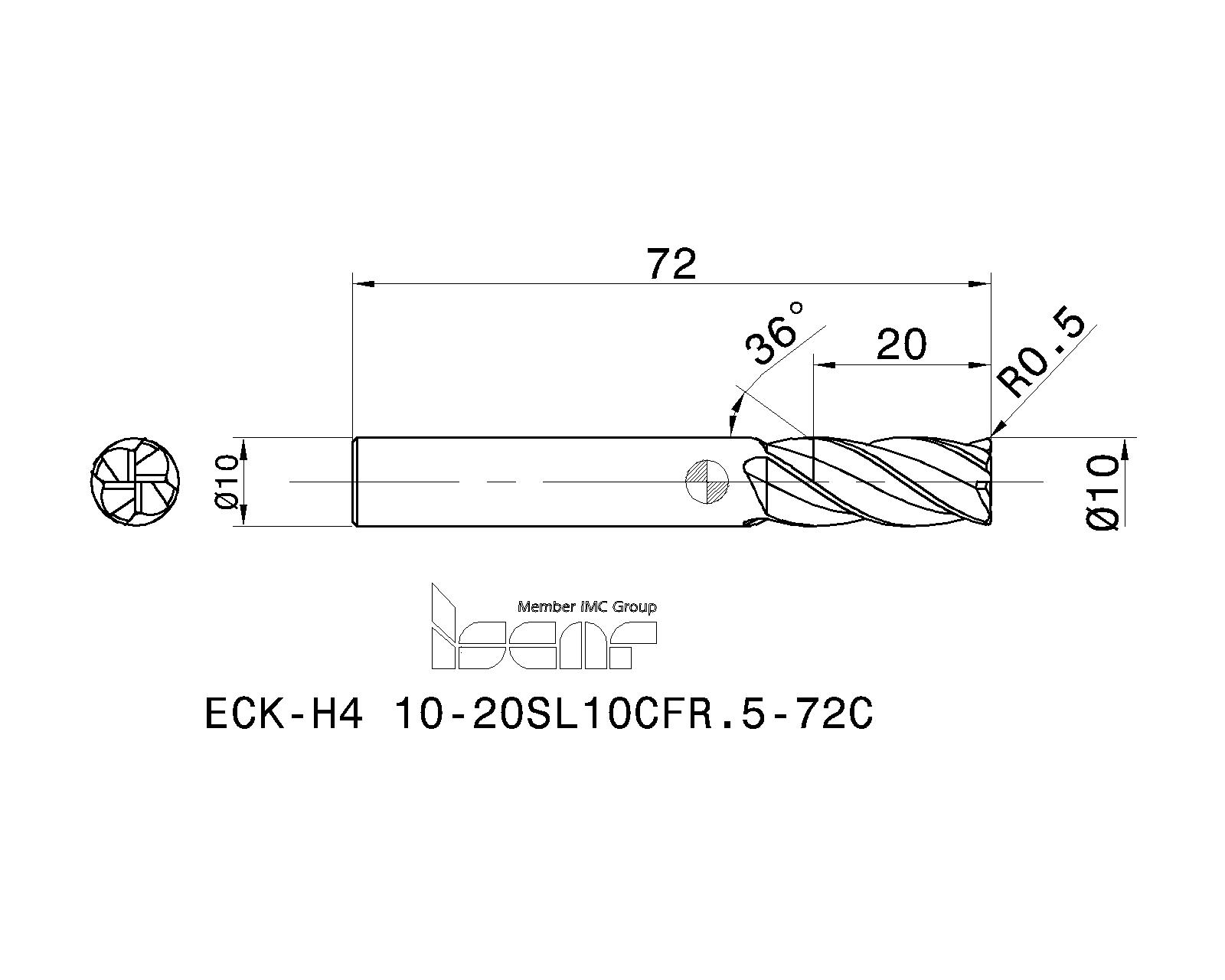

Item Designation: ECK-H4 10-20SL10CFR.5-72C

DC	DCONMS	APMX	OAL	NOF	RE	FHA	RMPX°	Shank	CSP	fz (min)	fz (max)	DCX	CCMS	COATP	GRDMFG	HAND	KAPR	LU	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
10.00	10.00	20.00	72.00	4	0.50	36.0	5.0	SL	1	0.03	0.07	10.00~	ZYL1G1000h$06~	~	IC900 ~	R~	90.0~	~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	3338818	Safe-Lock® by Haimer, helical grooves that prevent pull-out	1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3338818	IC900			3	0	0			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3338818&cat=3338818&itemDesc=ECK-H4 10-20SL10CFR.5-72C"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('3338818', 'ECK-H4 10-20SL10CFR.5-72C' , 'IscarDxf' , '3338818-ECK-H4 10-20SL10CFR.5-72C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3338818&itemDesc=ECK-H4 10-20SL10CFR.5-72C"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3338818&itemDesc=ECK-H4 10-20SL10CFR.5-72C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Safe-Lock® by Haimer, helical grooves that prevent pull-out

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
