Family Designation: ECK-H4M-CFR

4 flute endmills with different helix (35° & 37°), chamfered cutting edges and variable pitch for chatter dampening with assorted radii. Used for high titanium removal rates. Full slot milling-up to 2XD.

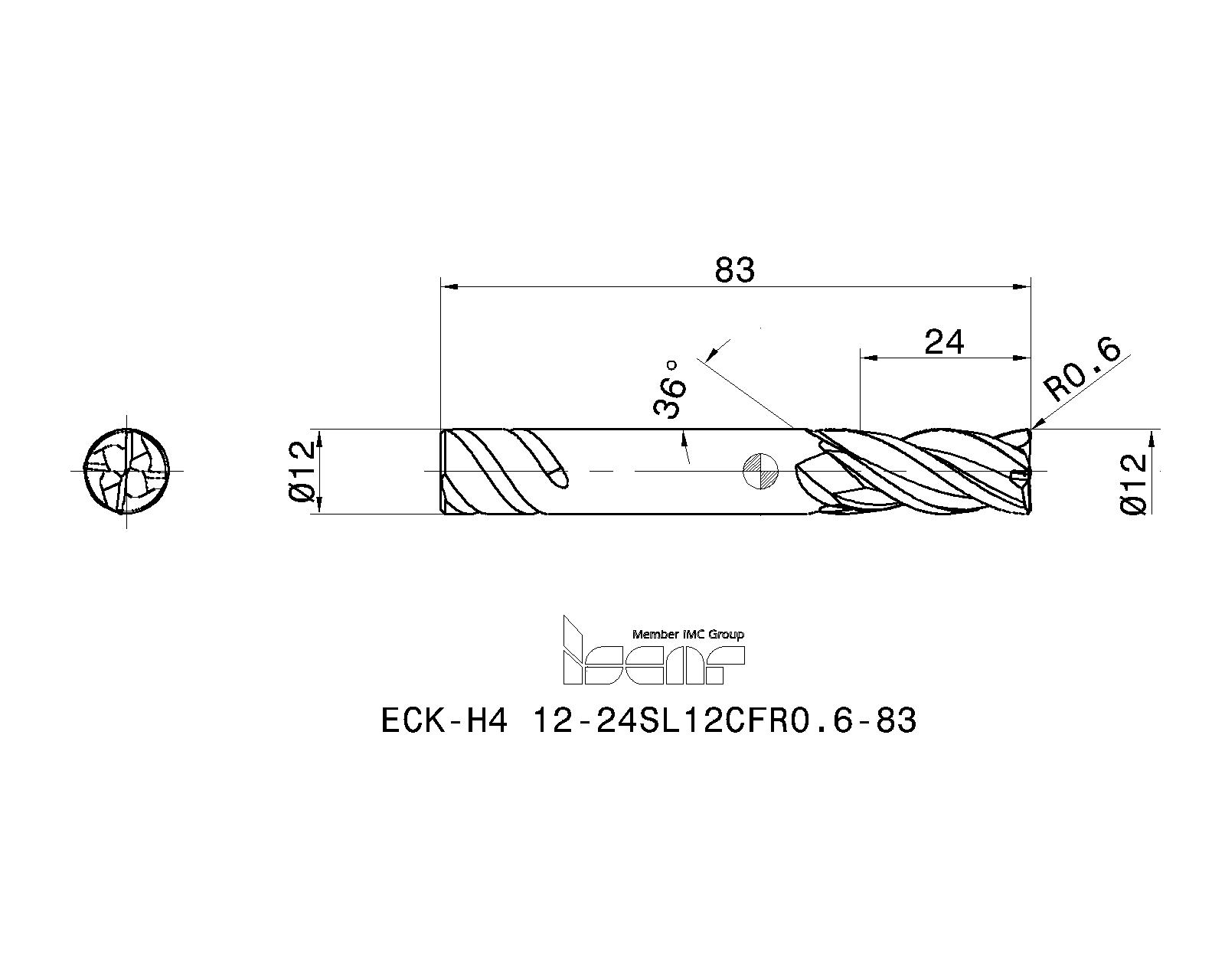

Item Designation: ECK-H4 12-24SL12CFR0.6-83

DC	DCONMS	APMX	OAL	NOF	RE	FHA	RMPX°	Shank	CSP	fz (min)	fz (max)	DCX	CCMS	COATP	GRDMFG	HAND	KAPR	LU	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
12.00	12.00	24.00	83.00	4	0.60	36.0	5.0	SL	0	0.04	0.08	12.00~	ZYL1G1200h$06~	~	IC900 ~	R~	90.0~	~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	3338819	Safe-Lock® by Haimer, helical grooves that prevent pull-out	1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3338819	IC900	Alternative		3	0	160				<a href="javascript:OpenDxf('3338819', 'ECK-H4 12-24SL12CFR0.6-83' , 'IscarDxf' , '3338819-ECK-H4 12-24SL12CFR0.6-83');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3338819&itemDesc=ECK-H4 12-24SL12CFR0.6-83"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3338819&itemDesc=ECK-H4 12-24SL12CFR0.6-83"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Safe-Lock® by Haimer, helical grooves that prevent pull-out

Items Per Package : 1

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
