Family Designation: E90SO-04

Endmills carrying 2 insert geometries, square inserts for 90° shouldering, square inserts for fast feed milling applications.

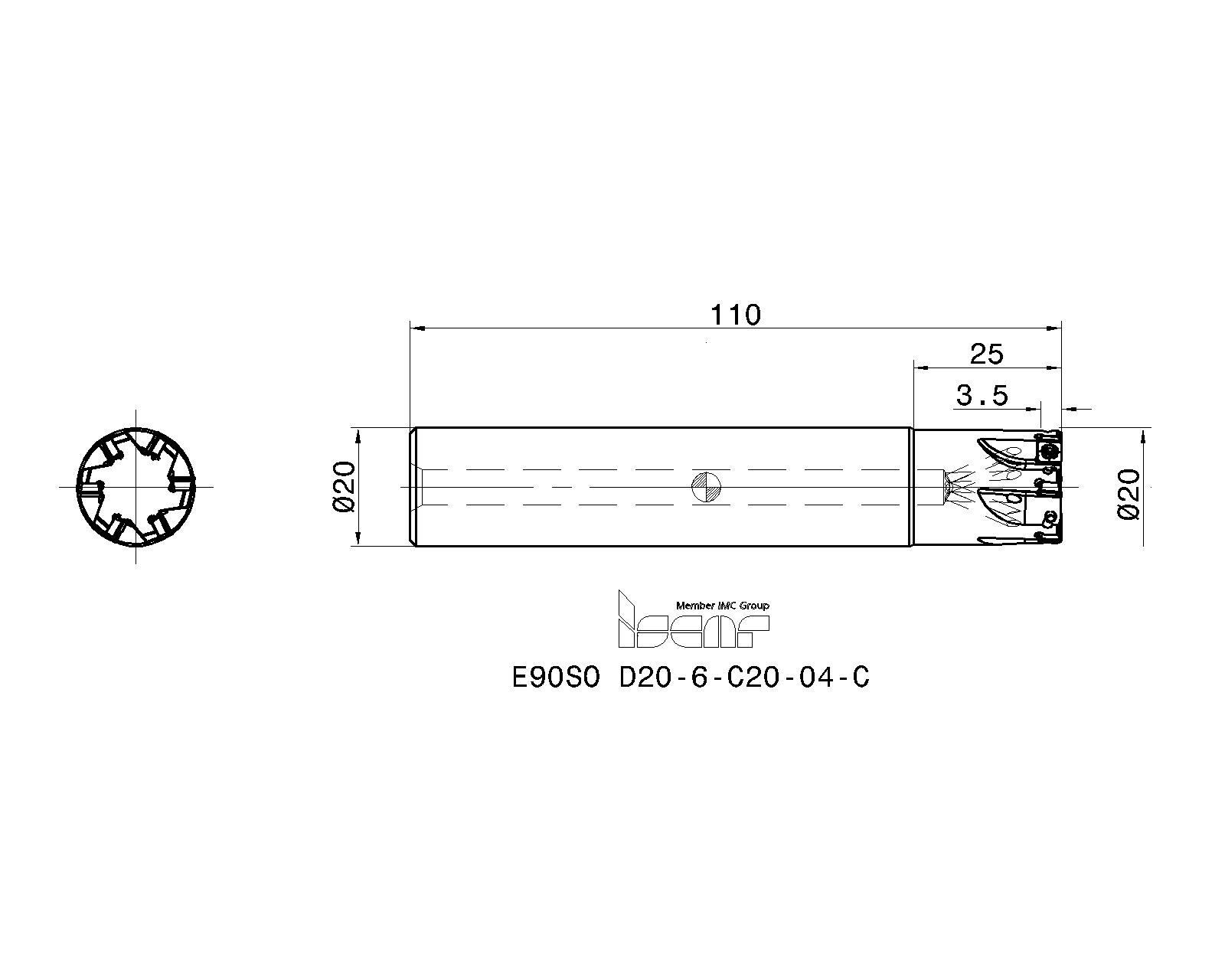

Item Designation: E90SO D20-6-C20-04-C

DC	APMX	DC_2	DCX_2	APMX_2	LU	OAL	DCONMS	Shank	CICT	RMPX°	HAND	KAPR	MIID	MIID_2		CCMS	NOF	CSP	DCX	ZEFF	GICAT	GIREM	giic
20.00	3.50	13.90	20.17	0.50	25.00	110.00	20.00	C	6	1.0	R~	90.0~	SOMT 040204 PNTR	SOMT 040208 PNR-FF	0.23	ZYL01G2000~	~	1~	~	~	3340320		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3340320		1	0	0				<a href="javascript:OpenDxf('3340320', 'E90SO D20-6-C20-04-C' , 'IscarDxf' , '3340320-E90SO D20-6-C20-04-C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3340320&itemDesc=E90SO D20-6-C20-04-C"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3340320&itemDesc=E90SO D20-6-C20-04-C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
A - with SOMT/CT 0402 insert
B - with SOMT 0402-FF insert (pocket seat must be modified)
Tightening torque 0.5 Nxm

Spare Parts
	7006178	TS 18041I/HG	Torx screw	Details
	7004613	T-6IP/51	Torx hand driver	Details
