Family Designation: DGN-MF

Double-sided inserts with a positive rake inclination, single cavity and negative land, for hard and soft materials, stainless steel, bearing steel and high temp alloys.

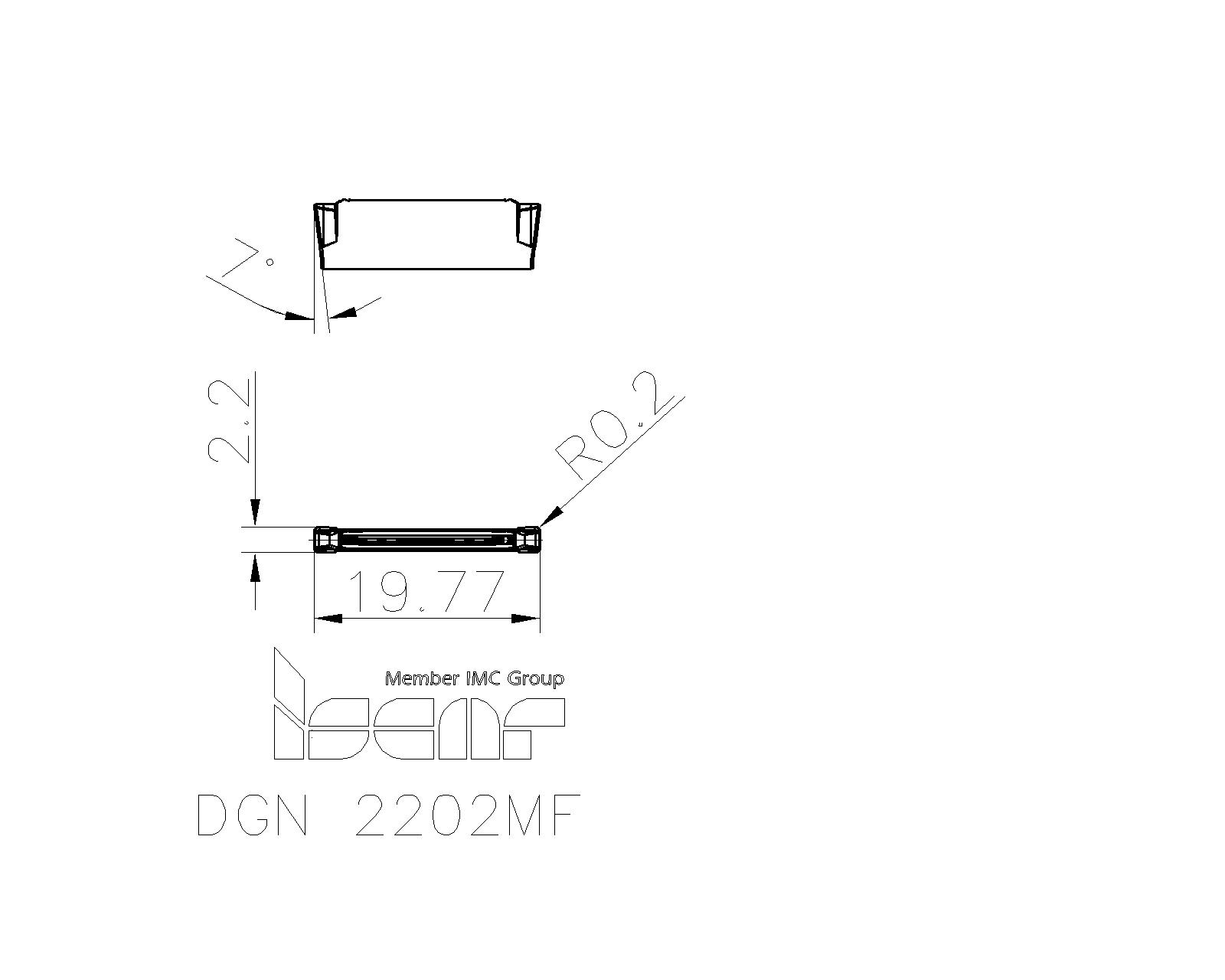

Item Designation: DGN 2202MF

CW	RE	CWTOL	CDX	INSL	CBMD	CEDC	fg (min)	fg (max)	HAND	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.20	0.20	0.040	18.00	19.90	~	2~	0.04	0.12	N~	L~	~	~	~	~	~	IC1010~	~	~	~	~	Steel~	Stainless Steel~				Carbide~	TiAlN, TiN ~	3340528		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	Add to favorites	Add to Assembly	GIFUT5	Stock Availability US EU E. Asia	DXF	STP	StockPerUser
3340524	IC1010			1	50			0		<a href="javascript:OpenDxf('3340524', 'DGN 2202MF' , 'IscarDxf' , '3340524-DGN 2202MF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3340524&itemDesc=DGN 2202MF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
3340528	IC1030			1	20			0		<a href="javascript:OpenDxf('3340528', 'DGN 2202MF' , 'IscarDxf' , '3340528-DGN 2202MF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3340528&itemDesc=DGN 2202MF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
