Family Designation: H690 EWN-04

90° endmills carrying H690 WNMU 0403 double-sided trigonal inserts with 6 helical cutting edges.

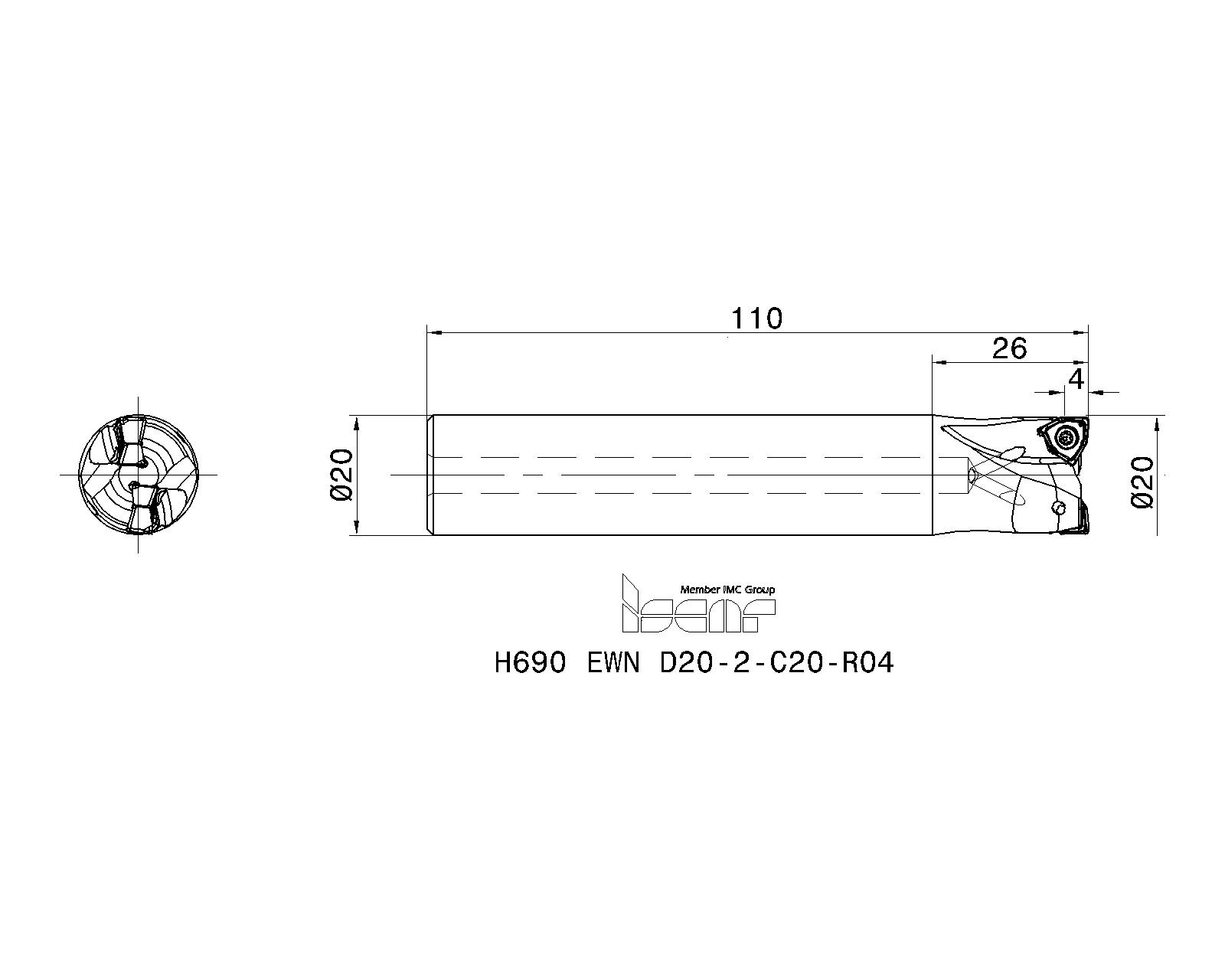

Item Designation: H690 EWN D20-2-C20-R04

DC	CICT	APMX	OAL	LH	DCONMS	Shank	RMPX°	CSP	HAND		KAPR	CCMS	DCX	LU	MIID	NOF	ZEFF	GICAT	GIREM	giic
20.00	2	4.00	110.00	26.0	20.00	C	1.5	1~	R~	0.42	90.0~	ZYL01G2000h$06~	~	~	H690 WNMU 0404-PNTR	2~	2~	3341088		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3341088		3	0	8				<a href="javascript:OpenDxf('3341088', 'H690 EWN D20-2-C20-R04' , 'IscarDxf' , '3341088-H690 EWN D20-2-C20-R04');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3341088&itemDesc=H690 EWN D20-2-C20-R04"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3341088&itemDesc=H690 EWN D20-2-C20-R04"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For adaptation, click on "More Info".
Insert clamping screw must be lubricated every indexing

Spare Parts
	7006316	SR M2.5X6-T7-60	Torx screw	Details
Recommended tightening torque:0.9 N*m
	7000270	T-7/51	Torx hand driver	Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
