Family Designation: ETS-XN09 T-SLOT endmills carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges.


 COOLANT THROUGH TOOL
Item Designation: ETS D32-11-W20-XN09
DC CICT  ZEFP DN SWM CW LU OAL DCONMS Shank  HAND MIID  KAPR  CCMS CSP  ZEFF GICATGIREMgiic
31.704216.0018.0010.8041.0095.0020.00W0.27R~XNMU 0904...90.0~ZYL10G2000h$06~1~~3343114 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileDXFSTPStock Availability
   US        EU     E. Asia
P21ITAStockPerUser
3343114 01280<a href="javascript:OpenDxf('3343114', 'ETS D32-11-W20-XN09' , 'IscarDxf' , '3343114-ETS D32-11-W20-XN09');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3343114&itemDesc=ETS D32-11-W20-XN09"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=3343114&itemDesc=ETS D32-11-W20-XN09"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=3343114&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

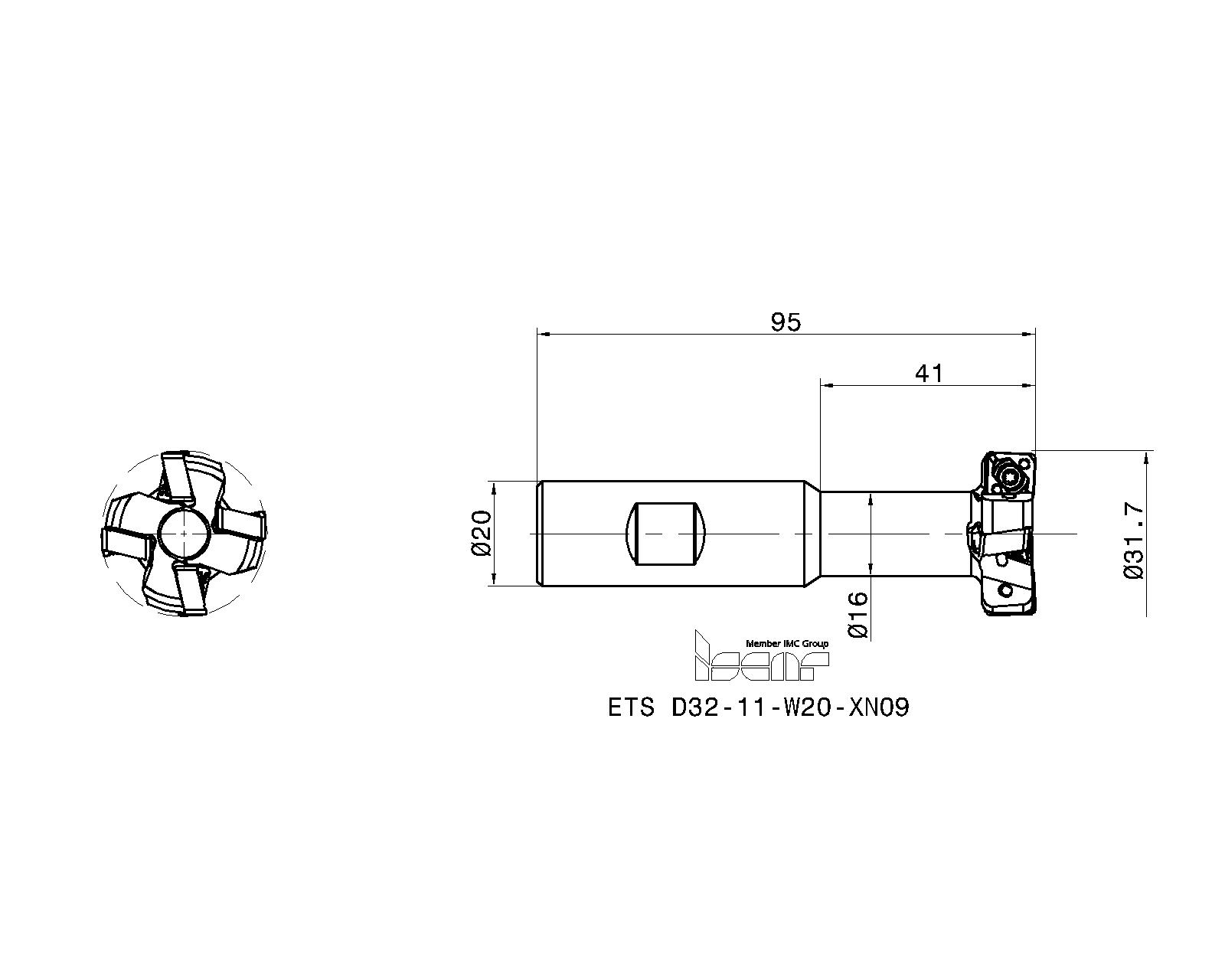

2D Representation
  Spare Parts
7006042SR 10508600Torx screw
Details
Recommended tightening torque:2 N*m
7003372T-9/51Torx hand driver
Details
For limiting torque, use optional 7007381 BLD 4 T09-2.0NM blade & 7007320 HSD 4-2.0NM handle.
