ISCAR Cutting Tools - Metal Working Tools - ETS-XN09 : 3343115

Geometry Checker ×

Family Designation: ETS-XN09

T-SLOT endmills carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges.

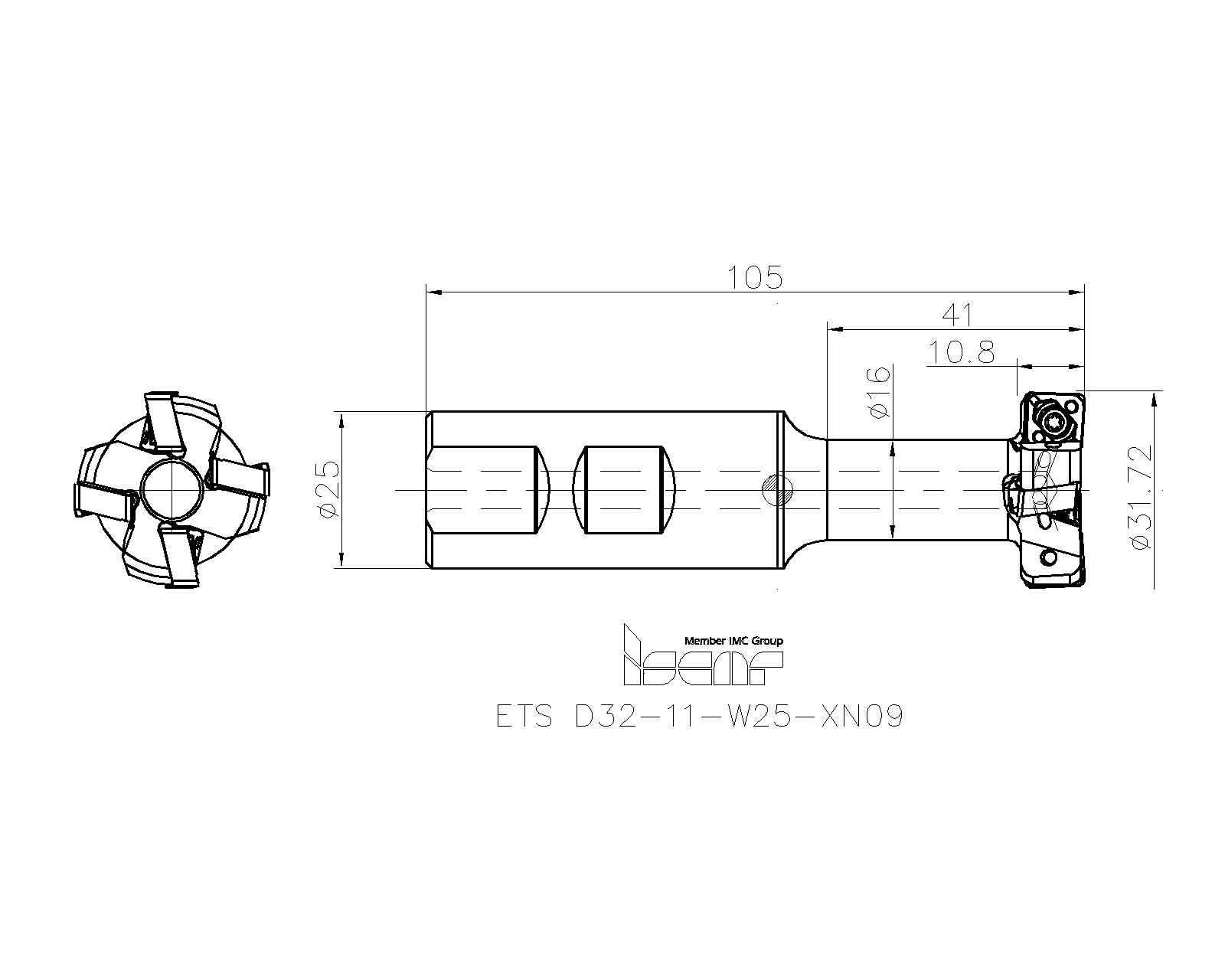

Item Designation: ETS D32-11-W25-XN09

DC	CICT	ZEFP	DN	SWM	CW	LU	OAL	DCONMS	Shank		HAND	MIID	KAPR	CCMS	CSP	ZEFF	GICAT	GIREM	giic
31.70	4	2	16.00	18.00	10.80	41.00	105.00	25.00	W	0.62	R~	XNMU 0904...	90.0~	ZYL10G2500h$06~	1~	~	3343115		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3343115		1	0	24			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3343115&cat=3343115&itemDesc=ETS D32-11-W25-XN09"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('3343115', 'ETS D32-11-W25-XN09' , 'IscarDxf' , '3343115-ETS D32-11-W25-XN09');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3343115&itemDesc=ETS D32-11-W25-XN09"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3343115&itemDesc=ETS D32-11-W25-XN09"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

Spare Parts
	7006042	SR 10508600	Torx screw	Details
Recommended tightening torque:2 N*m
	7003372	T-9/51	Torx hand driver	Details
For limiting torque, use optional 7007381 BLD 4 T09-2.0NM blade & 7007320 HSD 4-2.0NM handle.
