Family Designation: FFT3 EFM-03

Endmills carrying single-sided small trigon inserts for fast feed milling.

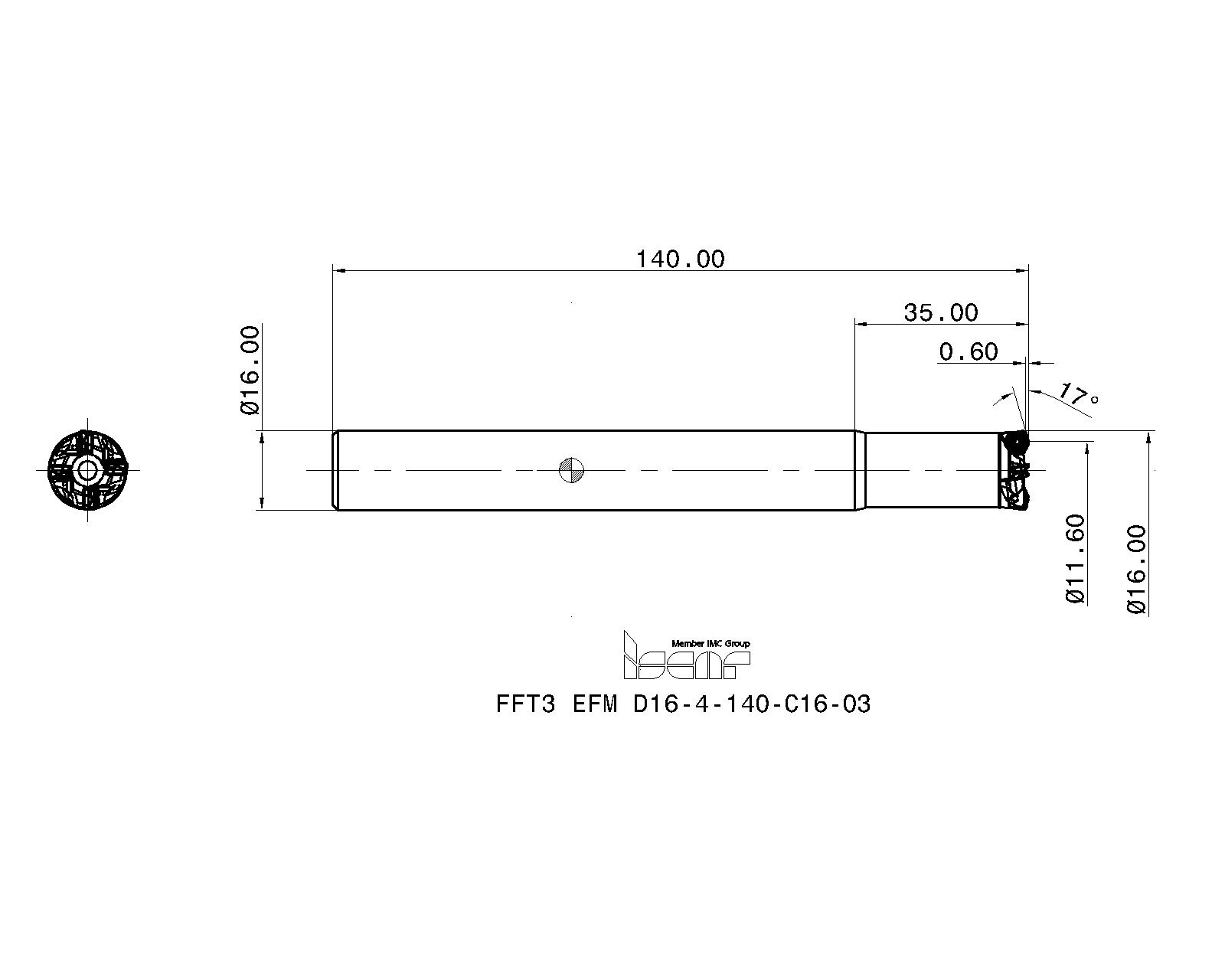

Item Designation: FFT3 EFM D16-4-140-C16-03

DCX	DC	APMX	AE	CICT	LU	LH	OAL	DCONMS	Shank	RMPX°	MDN	MDX	MIID		IC	KAPR	NOF	CCMS	CSP	HAND	ZEFF	GICAT	GIREM	giic
16.00	11.60	0.60	2.2	4	~	35.0	140.00	16.00	C	2.9	27.60	31.00	FFT3 WXMT 030206T	0.18	~	17.0~	~	ZYL01G1600h$06~	1~	~	~	3343674		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3343674		1	0	14				<a href="javascript:OpenDxf('3343674', 'FFT3 EFM D16-4-140-C16-03' , 'IscarDxf' , '3343674-FFT3 EFM D16-4-140-C16-03');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3343674&itemDesc=FFT3 EFM D16-4-140-C16-03"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3343674&itemDesc=FFT3 EFM D16-4-140-C16-03"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Radius for programming 1.1 mm
To generate a straight surface without cusps, the width of cut must not exceed DC

Spare Parts
	7006178	TS 18041I/HG	Torx screw	Details
Recommended tightening torque:0.5 Nxm
	7004613	T-6IP/51	Torx hand driver	Details
