Family Designation: HM390 ETP-MM-05

90° endmills with a MULTI-MASTER threaded adaptation carrying HM390 TPKT 0502... triangular inserts with helical cutting edges.

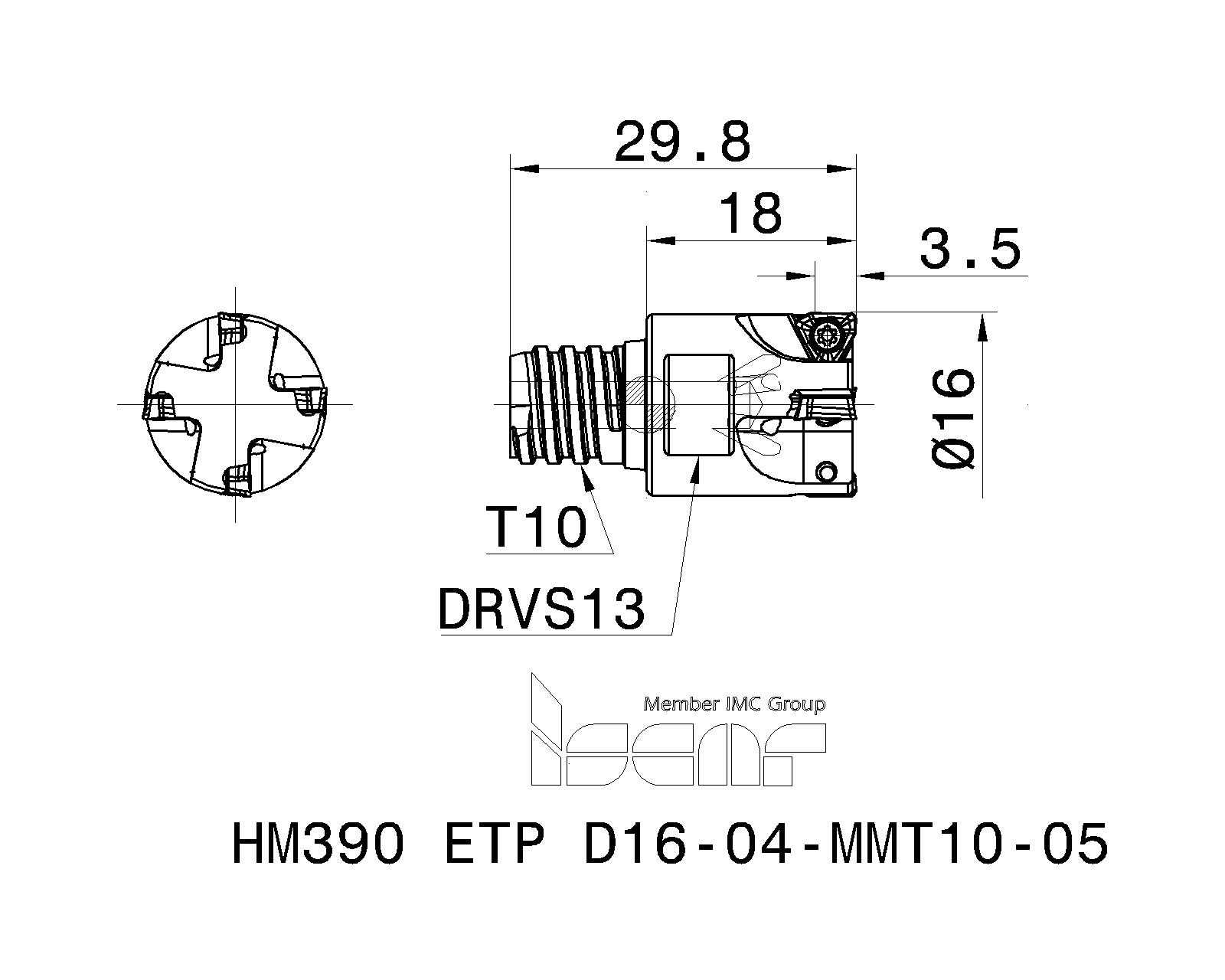

Item Designation: HM390 ETP D16-04-MMT10-05

DC	APMX	CICT	LF	DCONMS	THSZMS	OAL	DRVS	RMPX°		HAND	MIID	KAPR	NOF	CCMS	CSP	ZEFF	GICAT	GIREM	giic
16.00	3.50	4	18.00	15.60	T10	29.80	13.0	1.5	0.03	~	HM390 TPKT 0502PDR	90.0~	4~	SAI01C0150$$$$~	1~	~	3345999		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3345999		1	0	45				<a href="javascript:OpenDxf('3345999', 'HM390 ETP D16-04-MMT10-05' , 'IscarDxf' , '3345999-HM390 ETP D16-04-MMT10-05');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3345999&itemDesc=HM390 ETP D16-04-MMT10-05"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3345999&itemDesc=HM390 ETP D16-04-MMT10-05"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Insert tightening torque 0.5 N*m
For adaptation, click on "More Info"

Spare Parts
	7006178	TS 18041I/HG	Torx screw	Details
	7004613	T-6IP/51	Torx hand driver	Details
For optimal tightening torque, use 7007317 HSD 4-0.65NM + 7007375 BLD 4 T06-0.65NM optional torque limiting screwdriver.
