Family Designation: DCN C-5D

SUMOCHAM 5xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

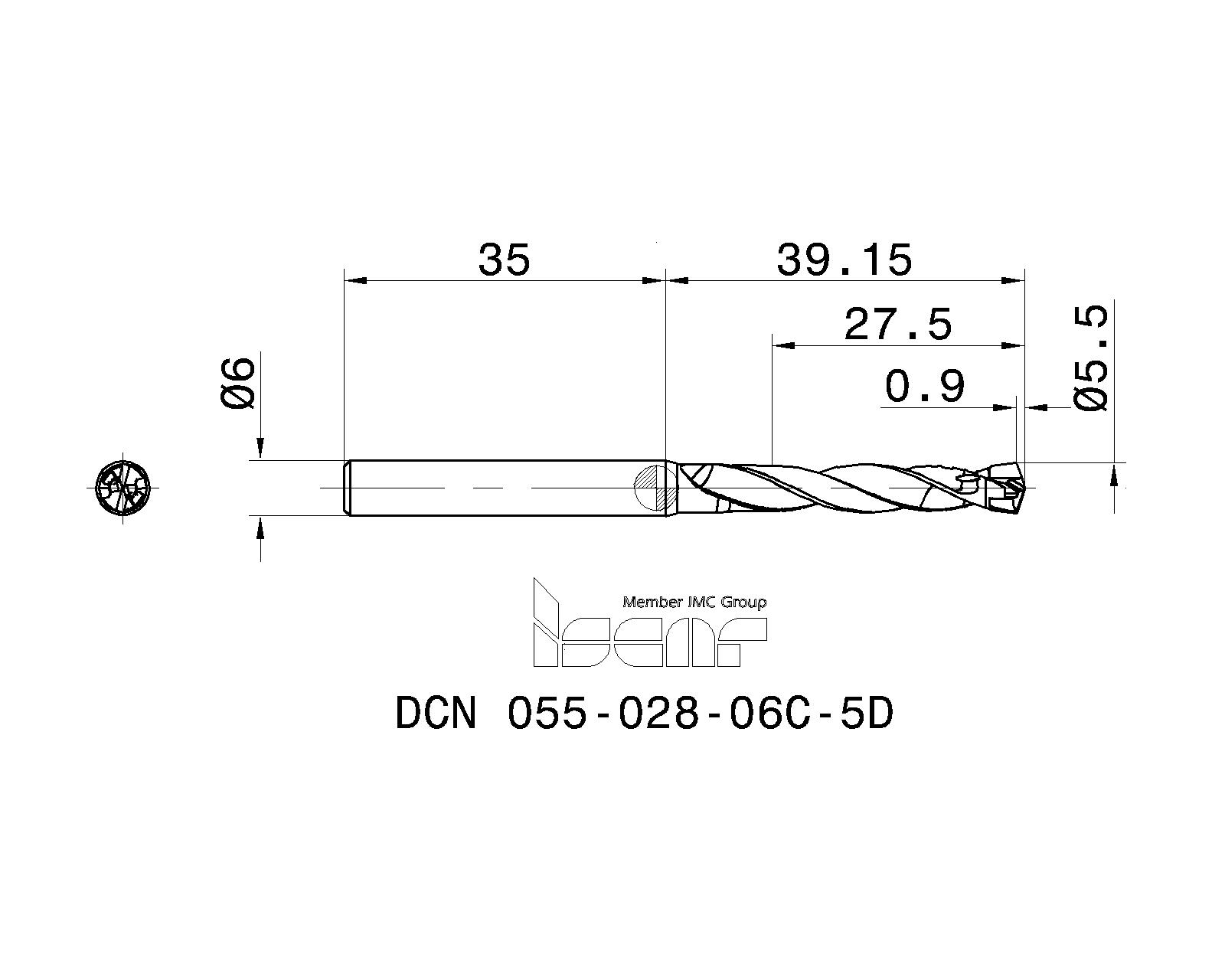

Item Designation: DCN 055-028-06C-5D

DCN	DCX	DCONMS	L	LU	L1	PL	LPR	LS	OAL	SSC	Shank	ULDR	ZEFF		CSP	MinTol	MaxTol	Semi- (Q)	Mod	MINI	BMC	TCDCONMS	CUBPMS	CCMS	LATTH	SFMT	MIID	FHA	ISCTMP	ClssID		BD	CCFMS	CCTMS	CNSC	CNT	CRKS	CXSC	CZCMS	DC	DF	GTC	HAND	IFS	IIC	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	ISYC	LCF	LF	LSCMS	LSCNMS	LTA	NOF	RPMX	SIG	SPI	TSYC	GICAT	GIREM	giic
5.50	5.90	6.00	27.0~	28.31	39.2~	0.810	40.15~	35.0	74.15	5.5	C~	5.0~	2~	Y~	1~	0.000~	0.050~	~	300~	All~	S~	h6~	F~	ZYL01F6000h$06~	~	Swiss~	ICP 055	25.0~	GEDRLR~	71E01A0608FE4~	0.03~	~	01~	ZYL~	~	~	~	~	6000~	5.50~	~	~	R~	~	IS$$33715291074780~	~	~	~	~	~	306-10~	~	~	~	~	39.34~	2~	~	~	~	~	3346490	The SK DCN key is supplied with the insert	0

Catalog No	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA
3346490			288	392	14				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3346490&itemDesc=DCN 055-028-06C-5D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3346490&itemDesc=DCN 055-028-06C-5D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3346490&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
The SK DCN key is supplied with the insert

Items Per Package : 1
Do not mount smaller drilling heads other than the specified range of the drill body
