Family Designation: DCN C-3D

SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

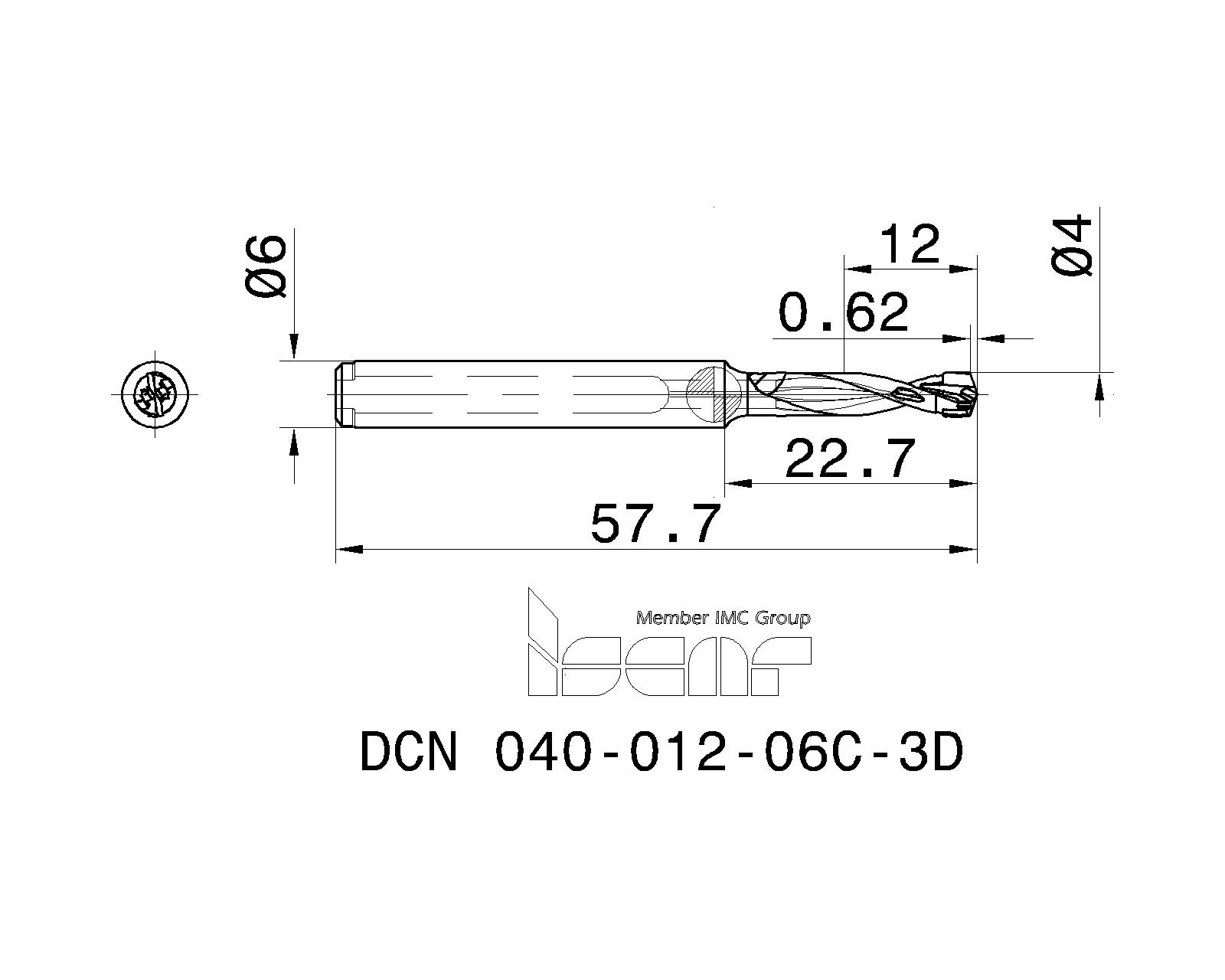

Item Designation: DCN 040-012-06C-3D

DCN	DCX	DCONMS	LU	PL	LS	OAL	SSC	ZEFF	CSP	MIID	DC	CCMS	HAND	IFS	NOF	GICAT	GIREM	giic
4.00	4.40	6.00	12.62	0.620	35.0	57.70	4.0	2~	1~	ICP 040	4.00~	ZYL01F6000h$06~	R~	~	2~	3346594	The SK DCN key is supplied with the insert	0

Catalog No	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA	StockPerUser
3346594			64	656	10				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3346594&itemDesc=DCN 040-012-06C-3D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3346594&itemDesc=DCN 040-012-06C-3D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3346594&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
The SK DCN key is supplied with the insert

Items Per Package : 1
Do not mount smaller drilling heads other than the specified range of the drill body

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
