Family Designation: FFT3 EFM-MM 02 Small diameter endmills with a MULTI-MASTER threaded adaptation that mount single-sided triangular inserts for fast feed milling


Item Designation: FFT3 EFMD10/.39-3MMT06-02
DCX  DC APMX AE  CICT  LF DCONMS THSZMS OAL DRVS  RMPX°  MDN  MDX  HAND MIID  KAPR  CCMS CSP  GICATGIREMgiic
10.004.200.602.9310.009.70T0616.308.04.714.2019.00R~FFT3 TXMT 0201205T14.0~0.01SAI01C0000$$$$~1~3346810 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3346810 800<a href="javascript:OpenDxf('3346810', 'FFT3 EFMD10/.39-3MMT06-02' , 'IscarDxf' , '3346810-FFT3 EFMD10 .39-3MMT06-02');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3346810&itemDesc=FFT3 EFMD10/.39-3MMT06-02"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3346810&itemDesc=FFT3 EFMD10/.39-3MMT06-02"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
For adaptation, click on "More Info"
Radius for programing 1.1 mm
To generate a straight surface without cusps, the width of cut must not exceed DC
3D Representation
Assembly Video

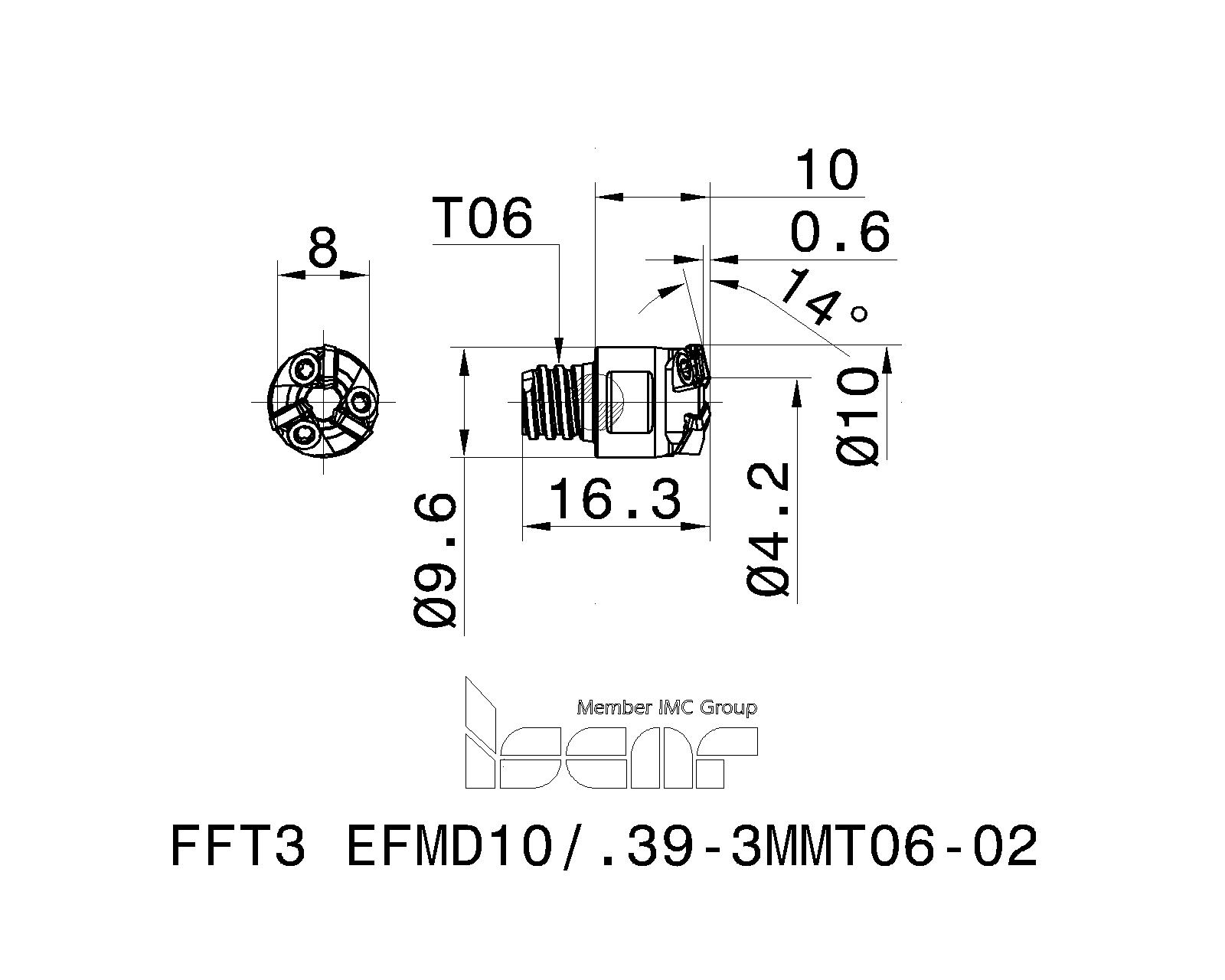

2D Representation
  Spare Parts
3348063SR M2X0.4-2.9 T6-HGTorx screw
Details
Recommended tightening torque:0.5 N*m
3343204T-6/5 MAGNET 3X3Torx key flag
