Family Designation: MTE D

Indexable threading endmills with Weldon shank and coolant holes.

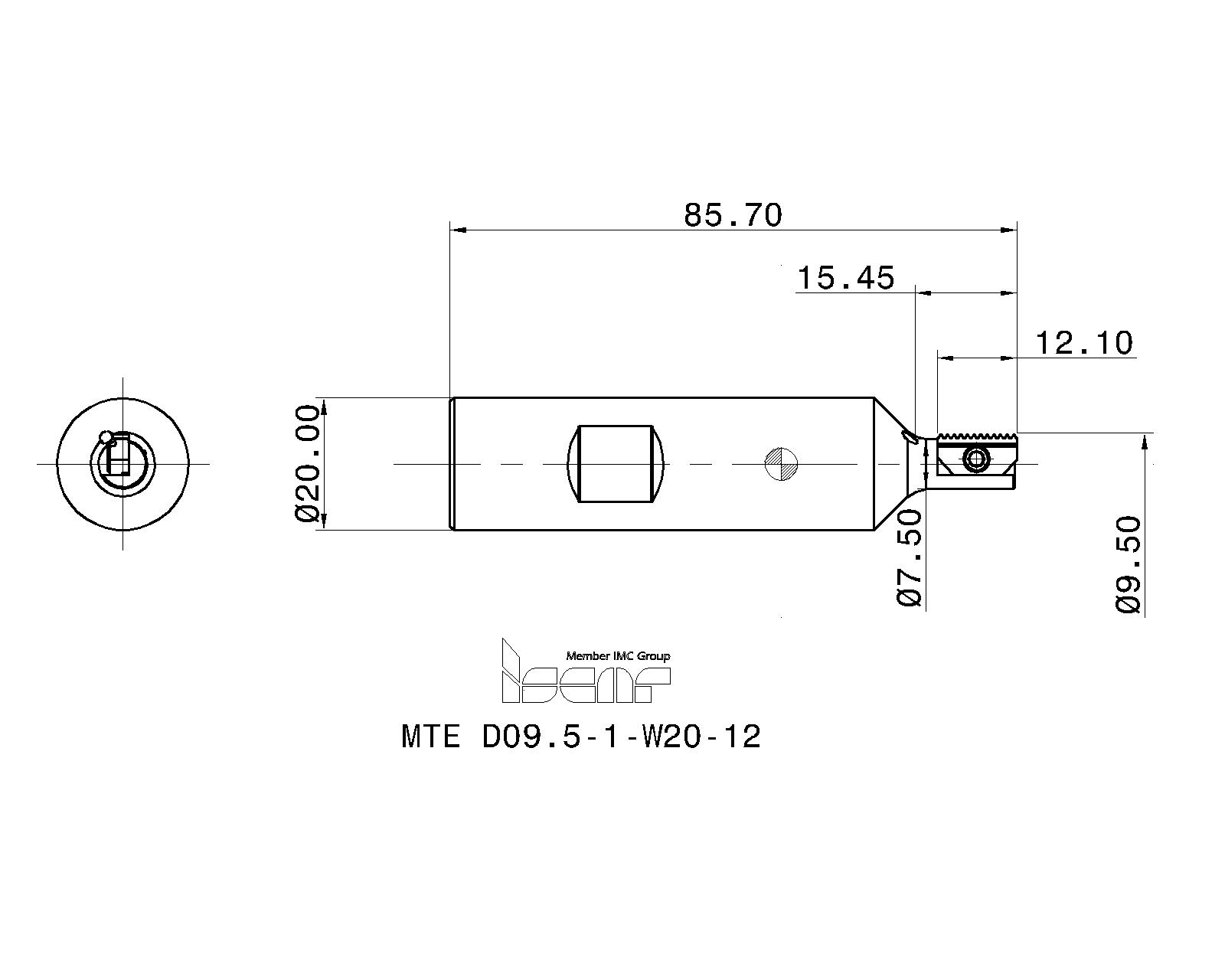

Item Designation: MTE D09.5-1-W20-12

APMX	DC	NOF	DCONMS	BD	LU	OAL	Shank		CSP		CICT	HAND	CCMS	GICAT	GIREM	giic
12.00	9.50	1	20.00	7.50	15.5	85.00	W	1.2	1~	0.16	1~	R~	ZYL10h$06~	3346912	Not suitable for inserts: MT LNHT 1202 18NPTF, MT LNHT 1202 18NPT, MT LNHT 1202 19BSPT, MT LNHT 1202 I1.75ISO	0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3346912		1	0	2			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3346912&cat=3346912&itemDesc=MTE D09.5-1-W20-12"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('3346912', 'MTE D09.5-1-W20-12' , 'IscarDxf' , '3346912-MTE D09.5-1-W20-12');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3346912&itemDesc=MTE D09.5-1-W20-12"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3346912&itemDesc=MTE D09.5-1-W20-12"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Not suitable for inserts: MT LNHT 1202 18NPTF, MT LNHT 1202 18NPT, MT LNHT 1202 19BSPT, MT LNHT 1202 I1.75ISO

Items Per Package : 1
For adaptation click on "More Info".
All endmills are equipped with a bore for internal coolant
Tool cutting diameter should not exceed 2/3 of thread bore diameter

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required

Spare Parts
	3301062	SR M2.5-T8-MT	Torx screw	Details
	7002348	BLD T08/M7	Torx blade	Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
	7002212	SW4-SD	Handle	Details
