ISCAR Cutting Tools - Metal Working Tools - MTE D-C : 3346919 - MTE D21-1-C16C-21-B
Geometry Checker ×

Family Designation: MTE D-C Indexable threading endmills with long cylindrical carbide shanks and coolant holes.


 COOLANT THROUGH TOOL
Item Designation: MTE D21-1-C16C-21-B
APMX DC DCONMS LU OAL Shank   CICT  CSP  CCMS GICATGIREMgiic
21.0021.0016.00163.00206.30C4.81~1~0.60ZYL01~3346919 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3346919 1064<a href="javascript:OpenDxf('3346919', 'MTE D21-1-C16C-21-B' , 'IscarDxf' , '3346919-MTE D21-1-C16C-21-B');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3346919&itemDesc=MTE D21-1-C16C-21-B"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3346919&itemDesc=MTE D21-1-C16C-21-B"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
For holders with a long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang)
3D Representation
Assembly Video

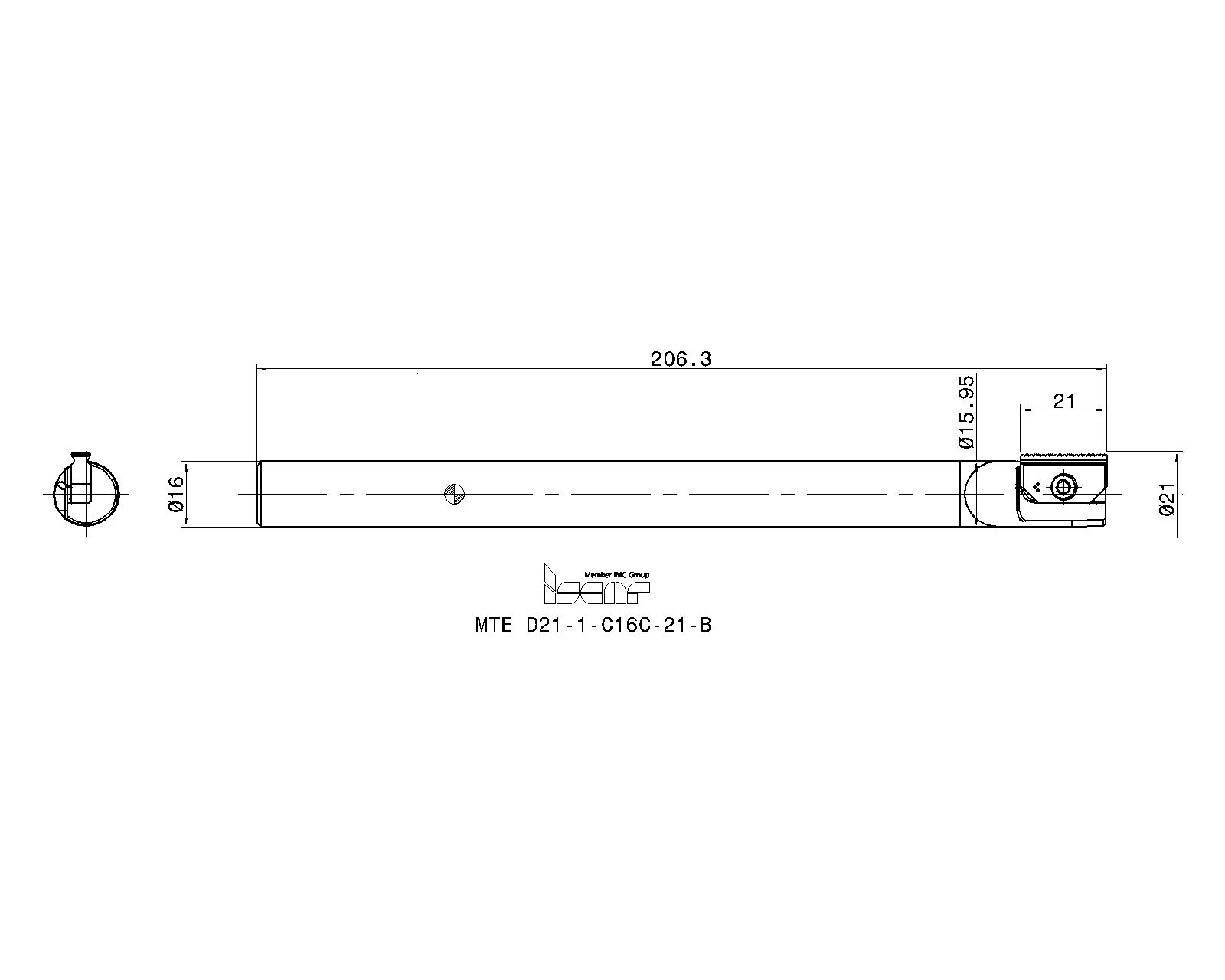

2D Representation
  Spare Parts
3301063SR M4-IP15-MTTorx screw
Details
7003093BLD IP15/S7Torx blade
For limiting torque, use optional 3309306 BLD 4 IP15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
7002244SW6-SDHandle
