Family Designation: TJS-GJET-ER32 Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding.
For ER-SPR collets use "AA" type only

For ER-SPR collets use "AA" type only

 COOLANT THROUGH TOOL

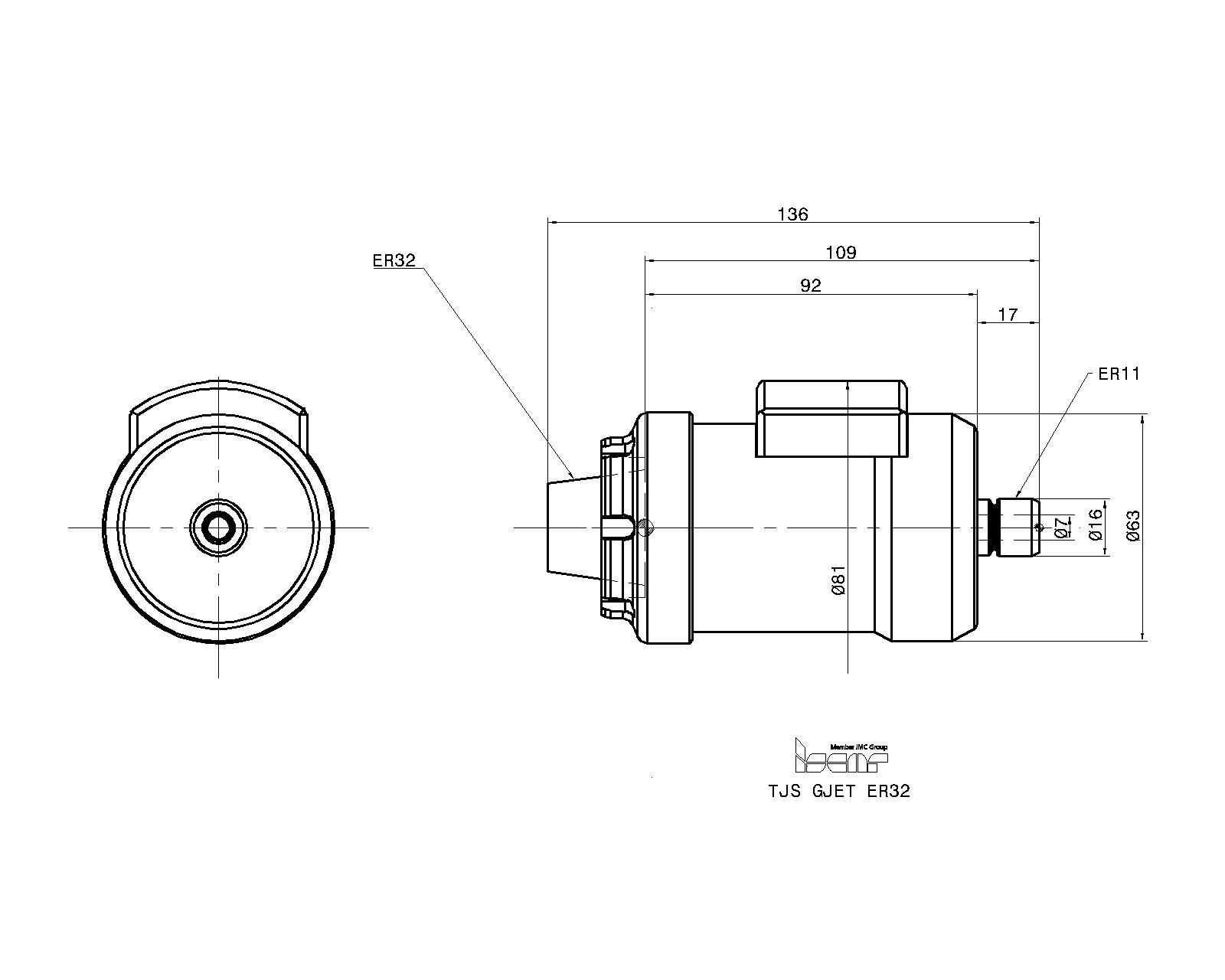

Item Designation: TJS GJET ER32
BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONXWS  CSP  RPMN  RPMX  DCP  GICATGIREMgiic
16.0054.9263.0081.0017.0024.0036.4478.0095.84109.00138.007.001~350005500001.303355061 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesAdd to AssemblyGTCStock Availability
   US        EU     E. Asia		STPSTPLStockPerUser
3355061 15128<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=3355061&itemDesc=TJS GJET ER32"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3355061&itemDesc=TJS GJET ER32"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a><a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3355061&itemDesc=TJS GJET ER32"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>
Items Per Package : 1
Minimum coolant pressure 20 bar and flow rate 12 l/min
The spindle provides only external strong coolant jet around the tool
Battery not supplied
For user guide, click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
4517225NUT ER11 GHSMini ER clamping nut
Used on SPINJET spindles
4517226WRENCH ER11 SMSWrench for ER chuck nut
Details
Wrench for NUT ER11 GHS for SPINJET
7000036HW 2.0Hex key
Details
3355066TJS SHAFT LOCK KEYShaft Lock Key
Details
4560137TJS TSD DISPLAY-EUR
(Optional, should be ordered separately)		Display
