Family Designation: DCN C-3D

SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

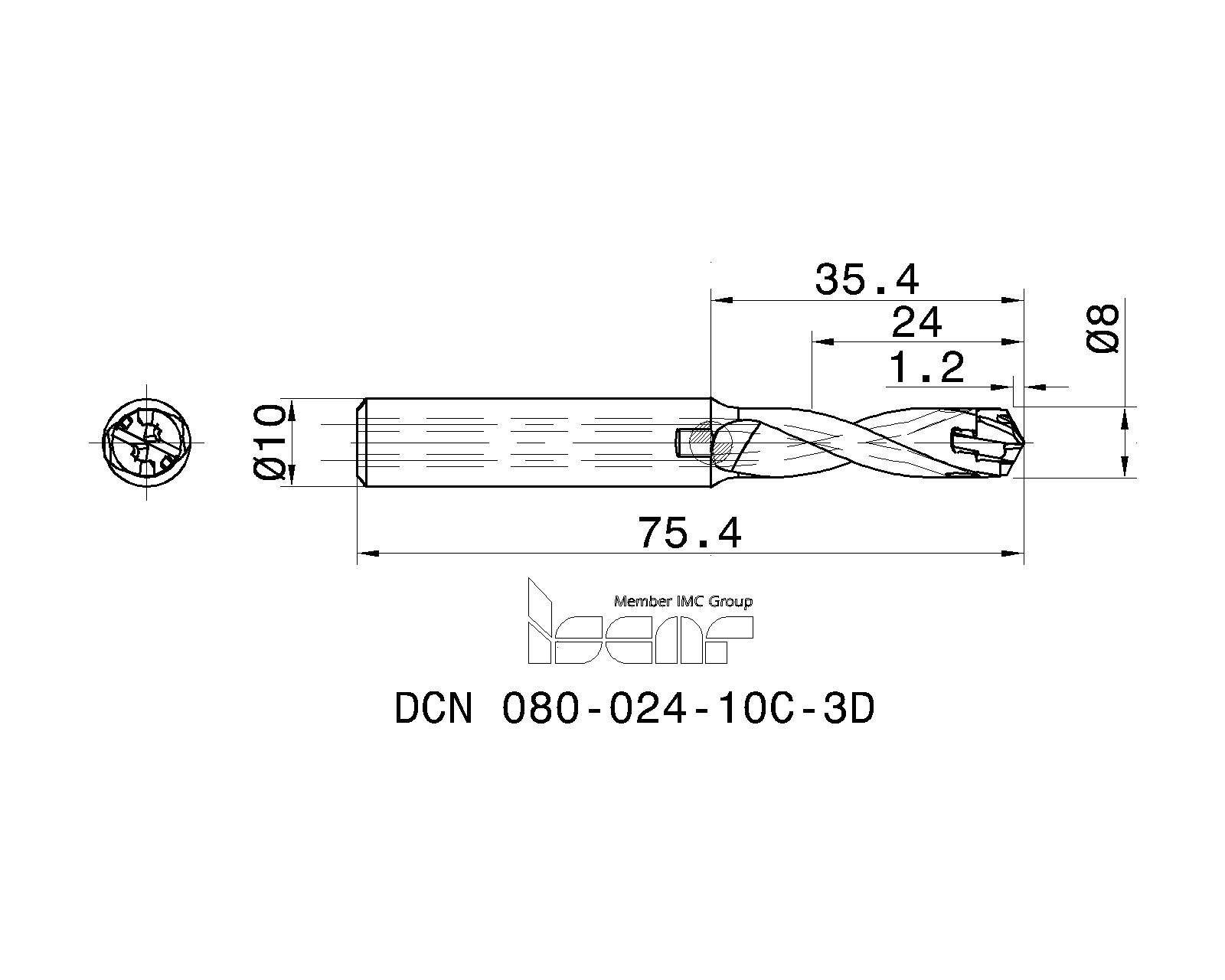

Item Designation: DCN 080-024-10C-3D

DCN	DCX	DCONMS	LU	PL	LS	OAL	SSC	ZEFF	CSP	MIID	DC	CCMS	HAND	IFS	NOF	GICAT	GIREM	giic
8.00	8.40	10.00	25.20	1.200	40.0	75.40	8.0	2~	1~	ICP 080	8.00~	ZYL01G1000h$06~	R~	~	2~	3359497		0

Catalog No	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA	StockPerUser
3359497			96	72	4				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3359497&itemDesc=DCN 080-024-10C-3D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3359497&itemDesc=DCN 080-024-10C-3D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3359497&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1
Do not mount smaller drilling heads other than the specified range of the drill body

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7005259	K DCN 6-9.99	Clamping key	Details
