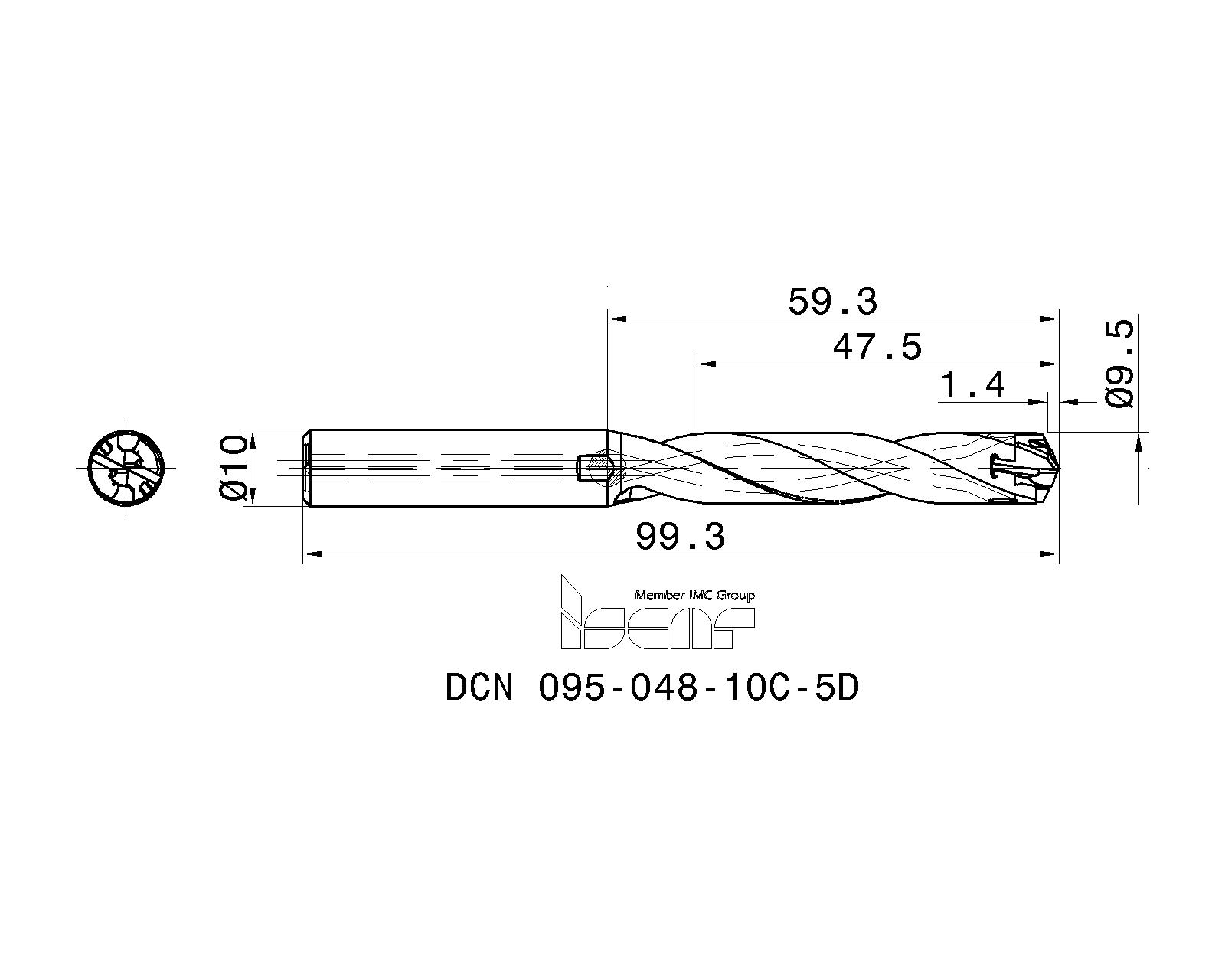

Family Designation: DCN C-5D

SUMOCHAM 5xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

Item Designation: DCN 095-048-10C-5D

DCN	DCX	DCONMS	L	LU	L1	PL	LPR	LS	OAL	SSC	Shank	ULDR	ZEFF		CSP	MinTol	MaxTol	Semi- (Q)	Mod	MINI	BMC	TCDCONMS	CUBPMS	CCMS	LATTH	SFMT	MIID	FHA	ISCTMP	ClssID		BD	CCFMS	CCTMS	CNSC	CNT	CRKS	CXSC	CZCMS	DC	DF	GTC	HAND	IFS	IIC	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	ISYC	LCF	LF	LSCMS	LSCNMS	LTA	NOF	RPMX	SIG	SPI	TSYC	GICAT	GIREM	giic
9.50	9.90	10.00	~	48.94	59.3~	1.440	59.30~	40.0	99.30	9.0	C~	5.0~	2~	Y~	1~	0.000~	0.050~	~	~	All~	S~	h6~	~	0000h$06~	~	Swiss~	ICP 095	~	GEDRLR~	71E01A0608FE4~	0.00~	~	~	~	~	~	~	~	0000~	9.50~	~	~	R~	~	IS$$248568951213885~	IS$$258829168632385~	~	~	~	~	306-10~	~	~	~	~	57.86~	2~	~	~	~	~	3359504		0

Catalog No	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA
3359504			80	8	4				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3359504&itemDesc=DCN 095-048-10C-5D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3359504&itemDesc=DCN 095-048-10C-5D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3359504&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1
Do not mount smaller drilling heads other than the specified range of the drill body

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7005259	K DCN 6-9.99	Clamping key	Details
