Family Designation: D3N R-1.5D

Exchangeable head 3 flute drills with internal coolant holes and round shank, drilling depth 1.5xD

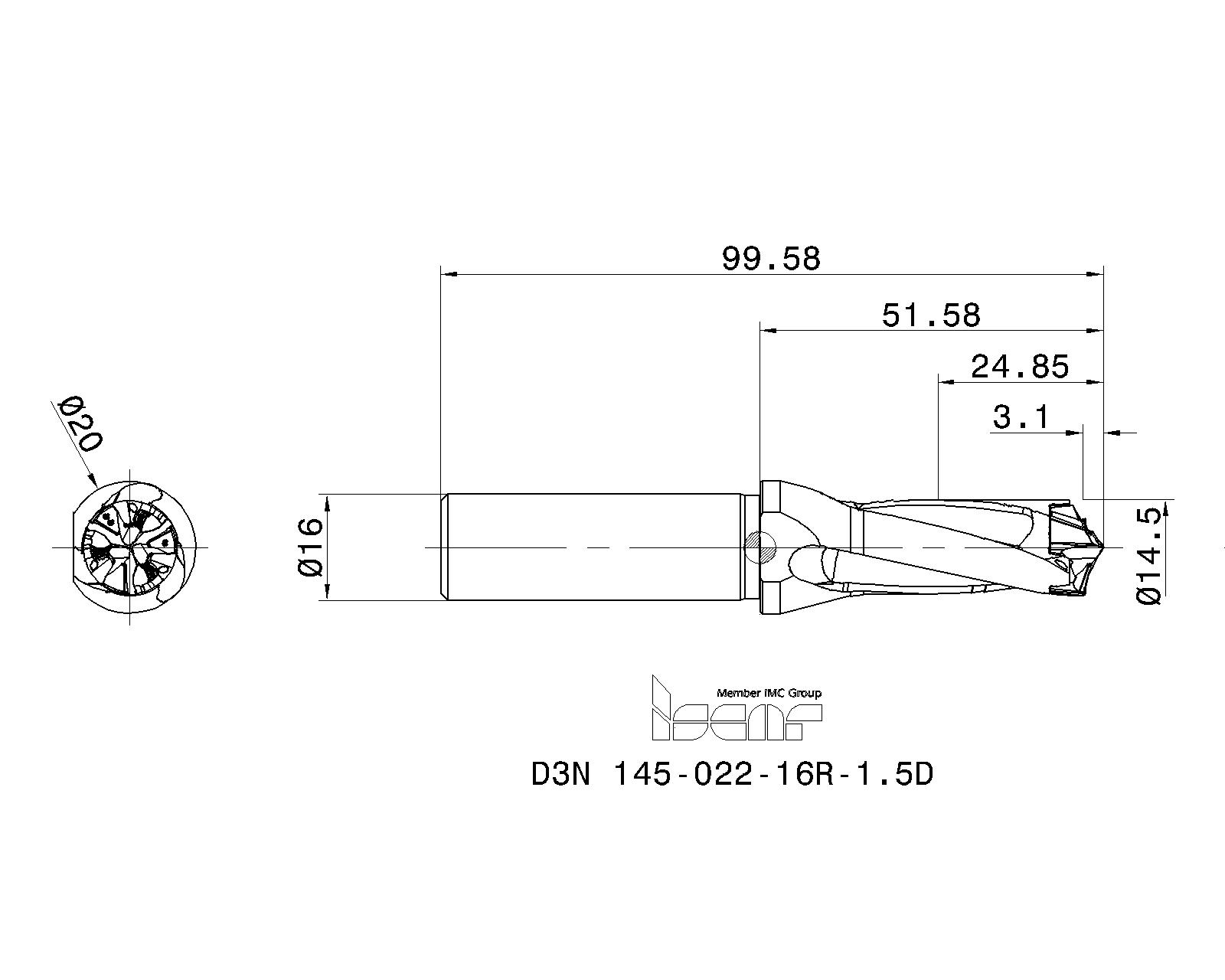

Item Designation: D3N 145-022-16R-1.5D

DCN	DC	DCX	DCONMS	DF	LU	LPR	PL	OAL	SSC	MIID	CSP	CCMS	HAND	IFS	NOF	GICAT	GIREM	giic
14.50	14.50~	14.90	16.00	20.00	24.85	51.58	3.100	99.58	14	H3P 145	1~	ZYL11G1600~	R~	~	3~	3362991		0

Catalog No	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA	StockPerUser
3362991			0	49	6				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3362991&itemDesc=D3N 145-022-16R-1.5D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3362991&itemDesc=D3N 145-022-16R-1.5D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3362991&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1
Do not mount smaller drilling heads other than the specified range of the drill body

Spare Parts
	3346621	K D3N 14-15.99	Clamping key
