Family Designation: ELB

Solid carbide lens-shaped(Barrel) endmills for 3D profiling. For semi-finish & finishing applications.

Representative Image

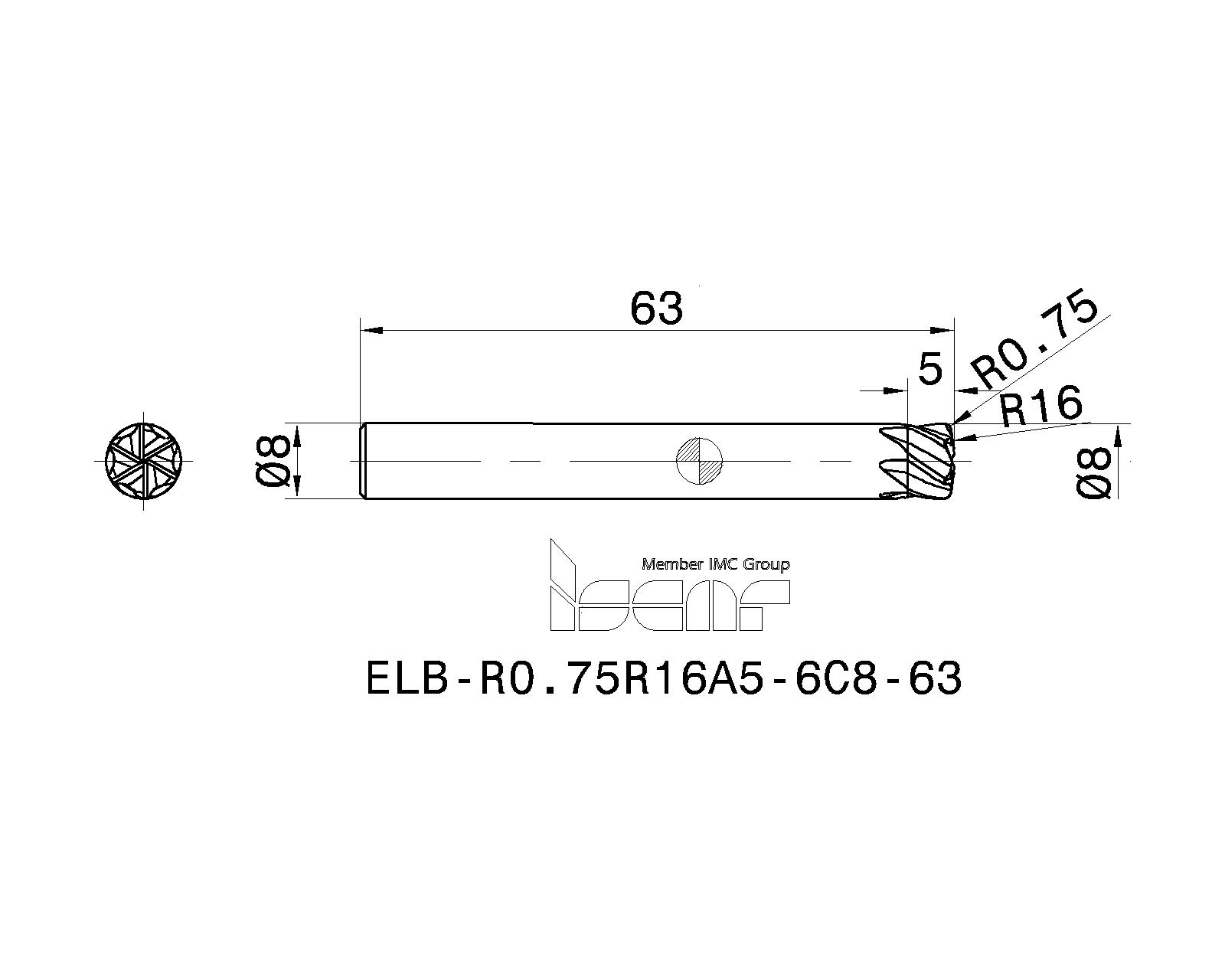

Item Designation: ELB-R0.75R16A5-6C8-63

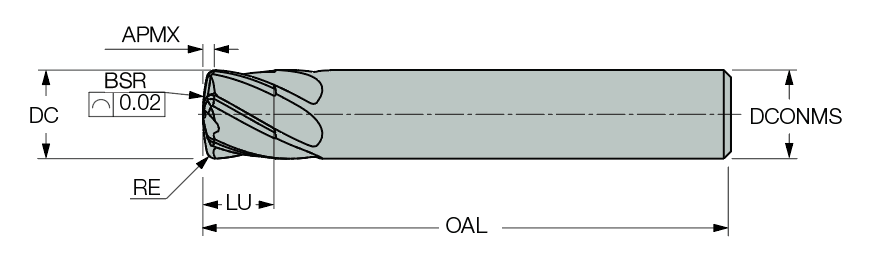

DC	BSR	RE	LU	APMX	DCONMS	NOF	KAPR	OAL	Shank	CSP	HAND	ZEFF	CCMS	COATP	GRDMFG	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
8.00	15.00	0.75	5.00	1.10	8.00	6	90.0~	63.00	C	0~	~	~	0000~	~	IC902 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3366916		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3366916	IC902			3	0	24			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3366916&cat=3366916&itemDesc=ELB-R0.75R16A5-6C8-63"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'GTC', 'ItemPage');"></a>	<a href="javascript:OpenDxf('3366916', 'ELB-R0.75R16A5-6C8-63' , 'IscarDxf' , '3366916-ELB-R0.75R16A5-6C8-63');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3366916&itemDesc=ELB-R0.75R16A5-6C8-63"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3366916&itemDesc=ELB-R0.75R16A5-6C8-63"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>

Items Per Package : 1
