Family Designation: EOB

Solid carbide oval-shaped (Barrel) endmills for 3D profiling. For semi-finishing & finishing applications.

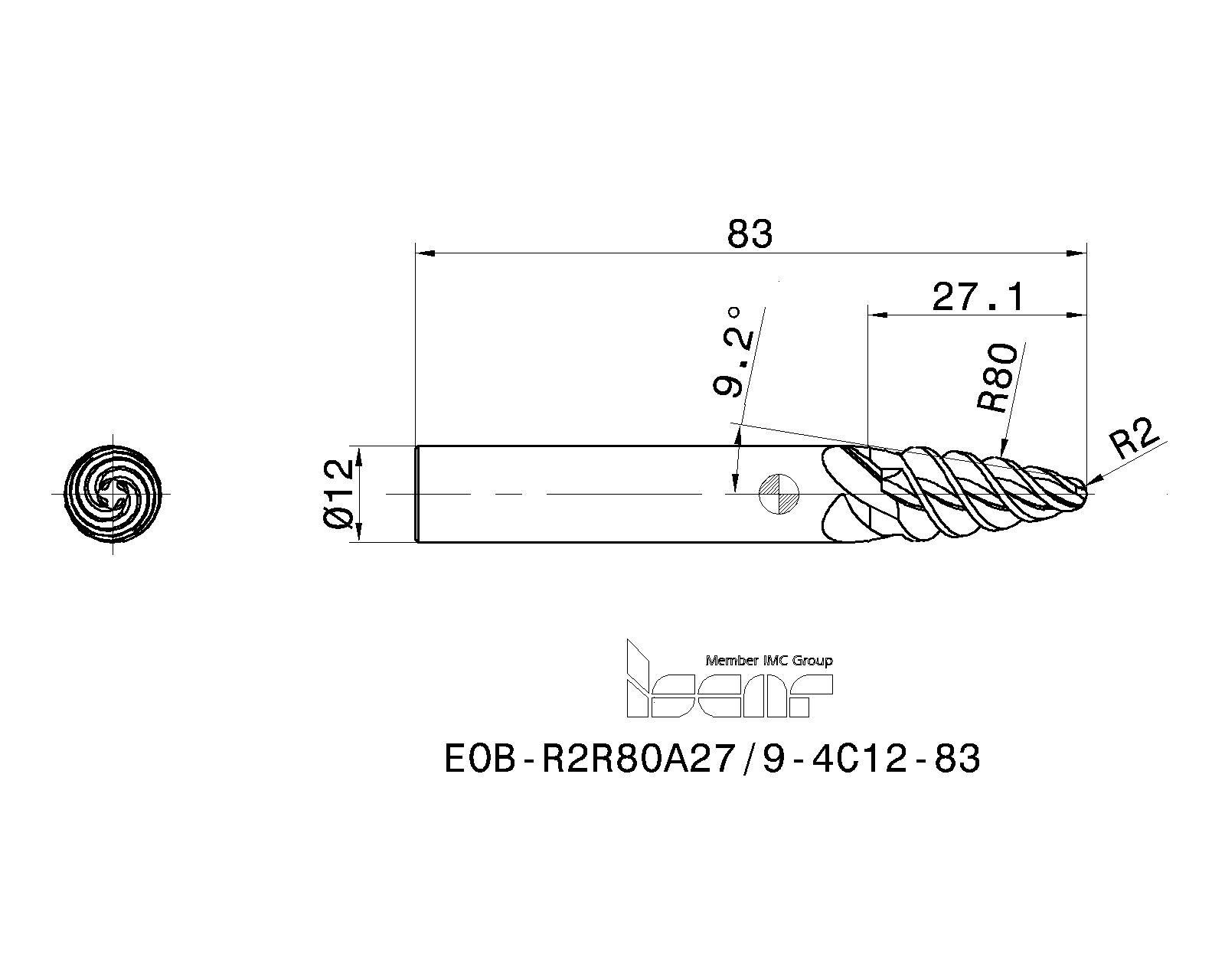

Item Designation: EOB-R2R80A27/9-4C12-83

DCONMS	RE	DCX	DC	PRFRAD	APMX	PRFA	NOF	OAL	Shank	CSP	HAND	ZEFF	CCMS	COATP	KAPR	GRDMFG	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
12.00	2.00	12.00~	4.00~	80.00	27.10	18.38	4	83.00	C	0~	~	~	0000~	~	80.8~	IC902 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~		Superalloys and titanium~	Carbide~	TiAlN ~	3366925		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3366925	IC902			3	0	31			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3366925&cat=3366925&itemDesc=EOB-R2R80A27/9-4C12-83"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('3366925', 'EOB-R2R80A27/9-4C12-83' , 'IscarDxf' , '3366925-EOB-R2R80A27 9-4C12-83');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3366925&itemDesc=EOB-R2R80A27/9-4C12-83"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3366925&itemDesc=EOB-R2R80A27/9-4C12-83"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
