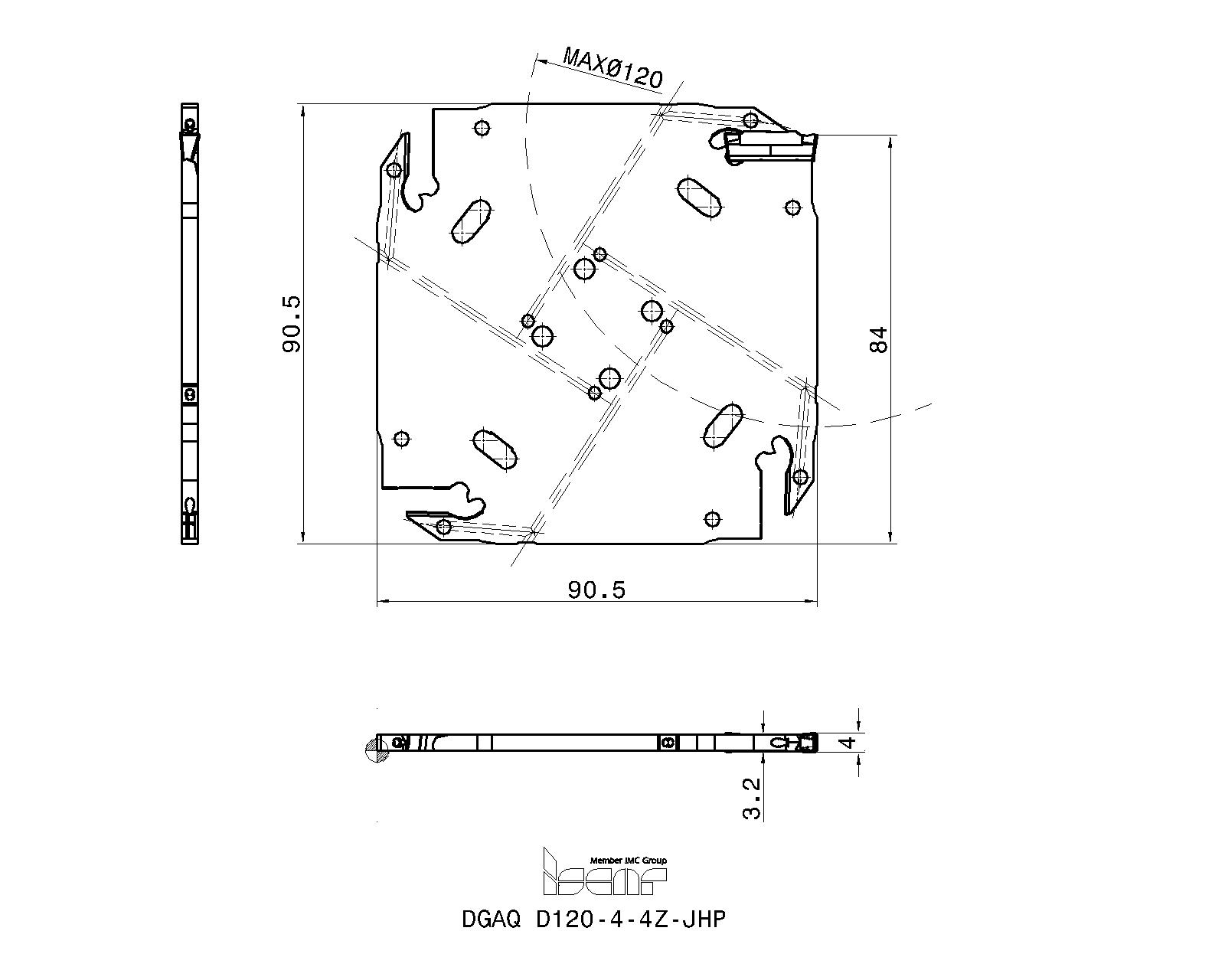

Family Designation: DGAQ-JHP Parting and grooving square adapters with internal coolant holes carrying DO-GRIP inserts.


 140 BAR (2000 PSI) MAX.
Item Designation: DGAQ D120-4-4Z-JHP
OAL OAH CWN  CWX  WB HF CUTDIA  MIID  CSP  HAND GICATGIREMgiic
90.5090.504.004.003.2084.0120.0DGN 41N~3367519 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3367519 164320<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3367519&cat=3367519&itemDesc=DGAQ D120-4-4Z-JHP"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a><a href="javascript:OpenDxf('3367519', 'DGAQ D120-4-4Z-JHP' , 'IscarDxf' , '3367519-DGAQ D120-4-4Z-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3367519&itemDesc=DGAQ D120-4-4Z-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3367519&itemDesc=DGAQ D120-4-4Z-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
When using 2 and 3mm double-sided inserts, the depth of cut is limited up to 19mm. For larger depth, use a DGNM type single-ended insert.
3D Representation
2D Representation
  Spare Parts
3368387SR M4X9-SEAL-JHPTorx screw
Details
7006324JHP COPPER SEAL 1/8"Seal washer
Details
7001923EDG 33A
(Optional, should be ordered separately)		Extractor
Details
