Family Designation: DGN-LF/LFT

Double-sided parting and grooving inserts, first choice for stainless steel applications.

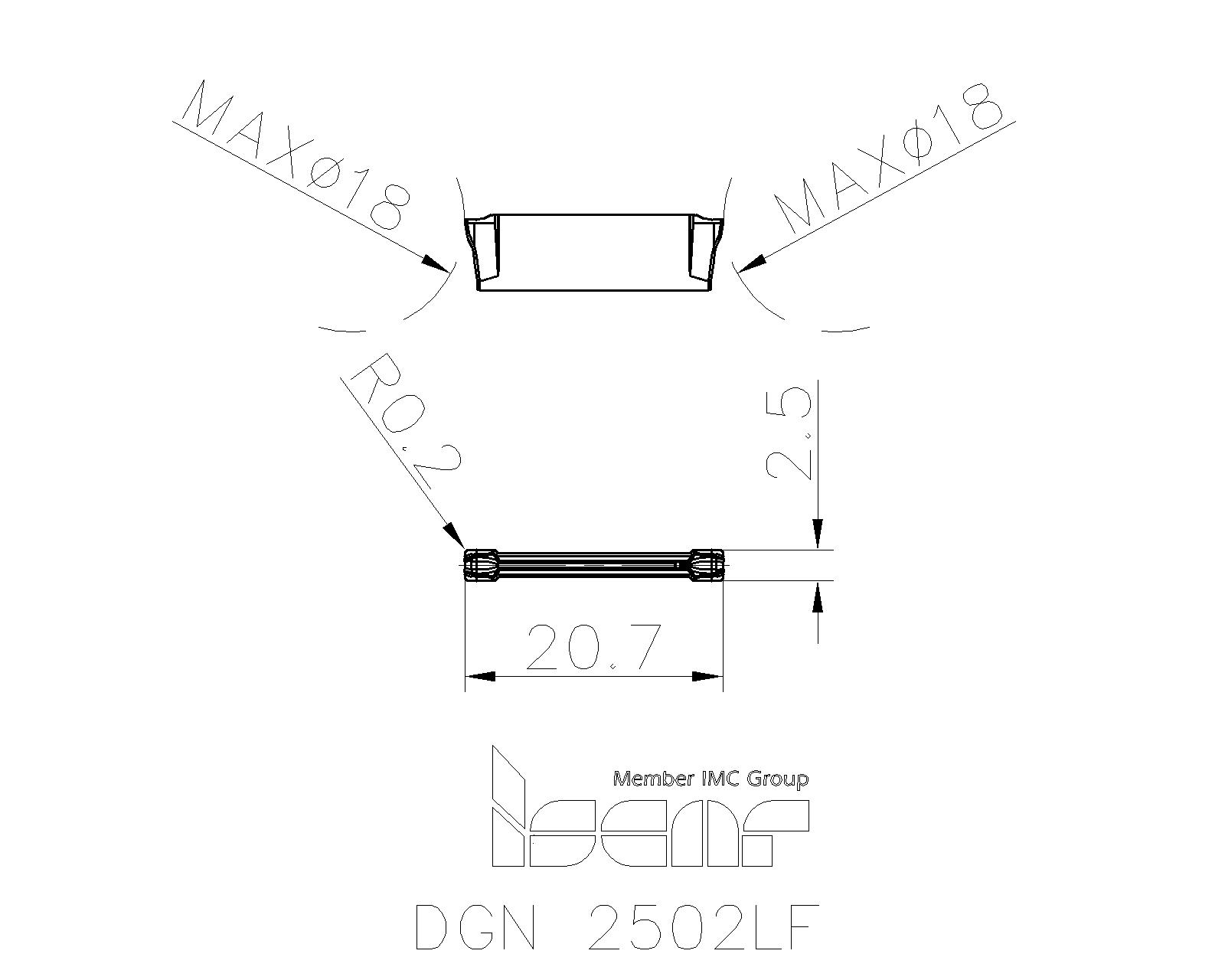

Item Designation: DGN 2502LF

CW	CWTOL	RE	RETOL	CDX	INSL	fg (min)	fg (max)	HAND	CBMD	CEDC	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.50	0.030	0.20	0.020	18.00	19.80	0.03	0.08	N~	~	2~	L~	-~	~	0~	-~	-~	IC1010~	7~	-~	-~	0~	Steel~	Stainless Steel~				Carbide~	TiAlN, TiN ~	3368316		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	Add to favorites	Add to Assembly	GIFUT5	Stock Availability US EU E. Asia	DXF	STP	StockPerUser
3368315	IC1010			1	60			0		<a href="javascript:OpenDxf('3368315', 'DGN 2502LF' , 'IscarDxf' , '3368315-DGN 2502LF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3368315&itemDesc=DGN 2502LF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
3368316	IC1030			1	30			0		<a href="javascript:OpenDxf('3368316', 'DGN 2502LF' , 'IscarDxf' , '3368316-DGN 2502LF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3368316&itemDesc=DGN 2502LF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10
The LFT chipformer features basically the same design as the LF chipformer, except that it is reinforced by a T-land to improve its durability in interrupted-cut or on hard materials applications. It can be applied at higher feeds than the LF chipformer

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
