Family Designation: AVC-D80-VH

Perpendicular Adaptor for External Square-Shank Tools

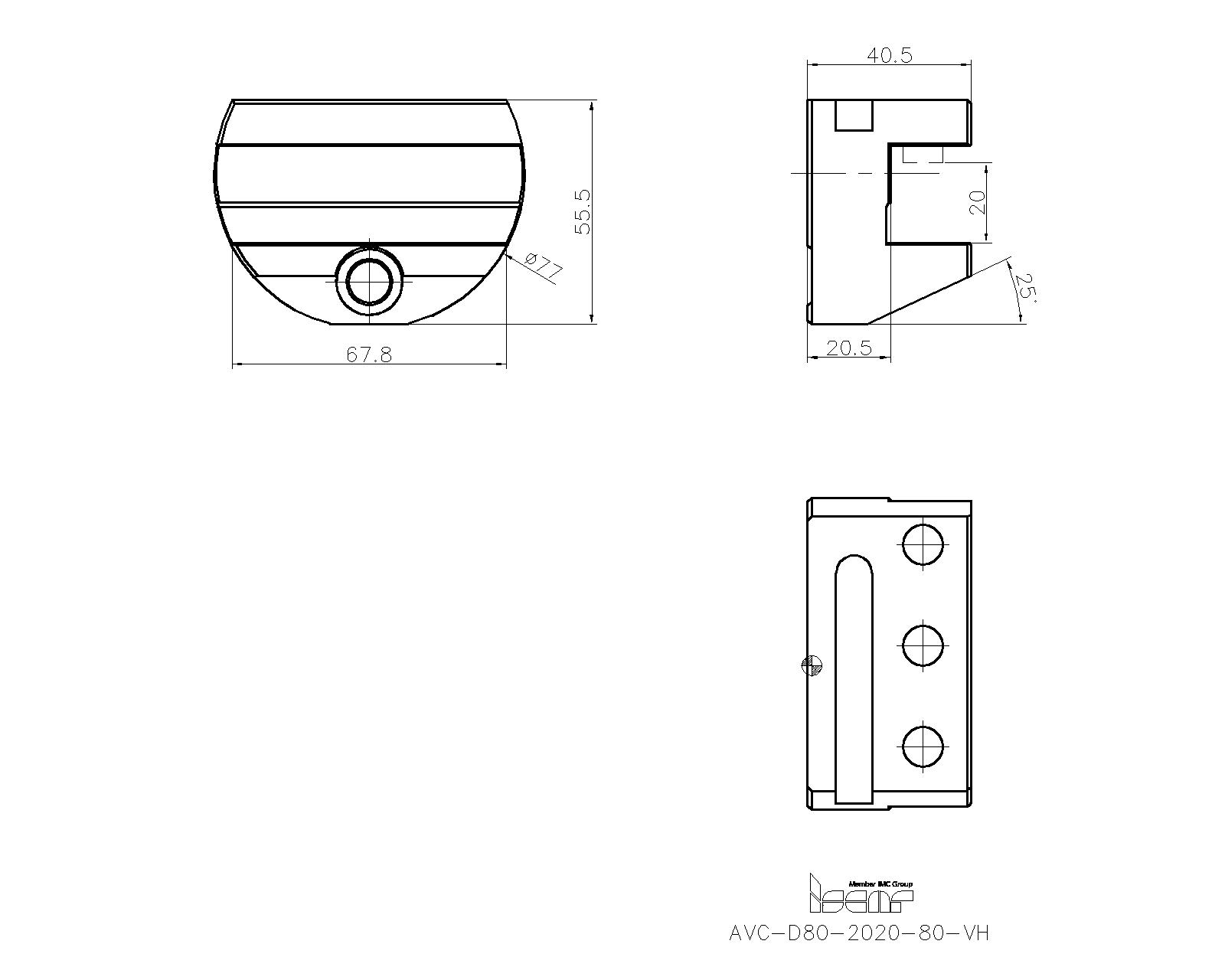

Representative Image

Item Designation: AVC-D80-2020-80-VH

LSCWS	OAH	DCONMS	LF	HF	OAL	RHCAL	CSP	GICAT	GIREM	giic
67.80	55.50	77.00	20.50	20.0	40.50	25.0	0~	3369292		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3369292		6	0	32				<a href="javascript:OpenDxf('3369292', 'AVC-D80-2020-80-VH' , 'IscarDxf' , '3369292-AVC-D80-2020-80-VH');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3369292&itemDesc=AVC-D80-2020-80-VH"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3369292&itemDesc=AVC-D80-2020-80-VH"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>

Items Per Package : 1

3D Representation

Light

Detailed

Assembly Video

Spare Parts
	7000720	SR M10X16 DIN913	Socket set with flat	Details
