Family Designation: TGTBY-JHP Y-axis intermediate prismatic holders for TANG-F-GRIP and DO-F-GRIP square JHP adapters on multi-task machines for parting and grooving.
TGTBY R32-D82R-JHP with TGAQ Shown

TGTBY R32-D82R-JHP with TGAQ Shown

 140 BAR (2000 PSI) MAX.
Item Designation: TGTBY L32-D82L-JHP
OAH HF OAW LF LB CUTDIA OAL  HTPRM HAND OAL_2  CSP  GICATGIREMgiic
42.0065.816.00150.0062.0082.0153.0032.00L156.401~3372442 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3372442 3024<a href="javascript:OpenDxf('3372442', 'TGTBY L32-D82L-JHP' , 'IscarDxf' , '3372442-TGTBY L32-D82L-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3372442&itemDesc=TGTBY L32-D82L-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3372442&itemDesc=TGTBY L32-D82L-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
Can be used also for X-axis (multi-task machines) - location pin should beremoved
For animation and set up procedure click on "More Info"
The tool types shown are currently unavailable in the USA, Canada, China, Japan and Korea
3D Representation
Assembly Video

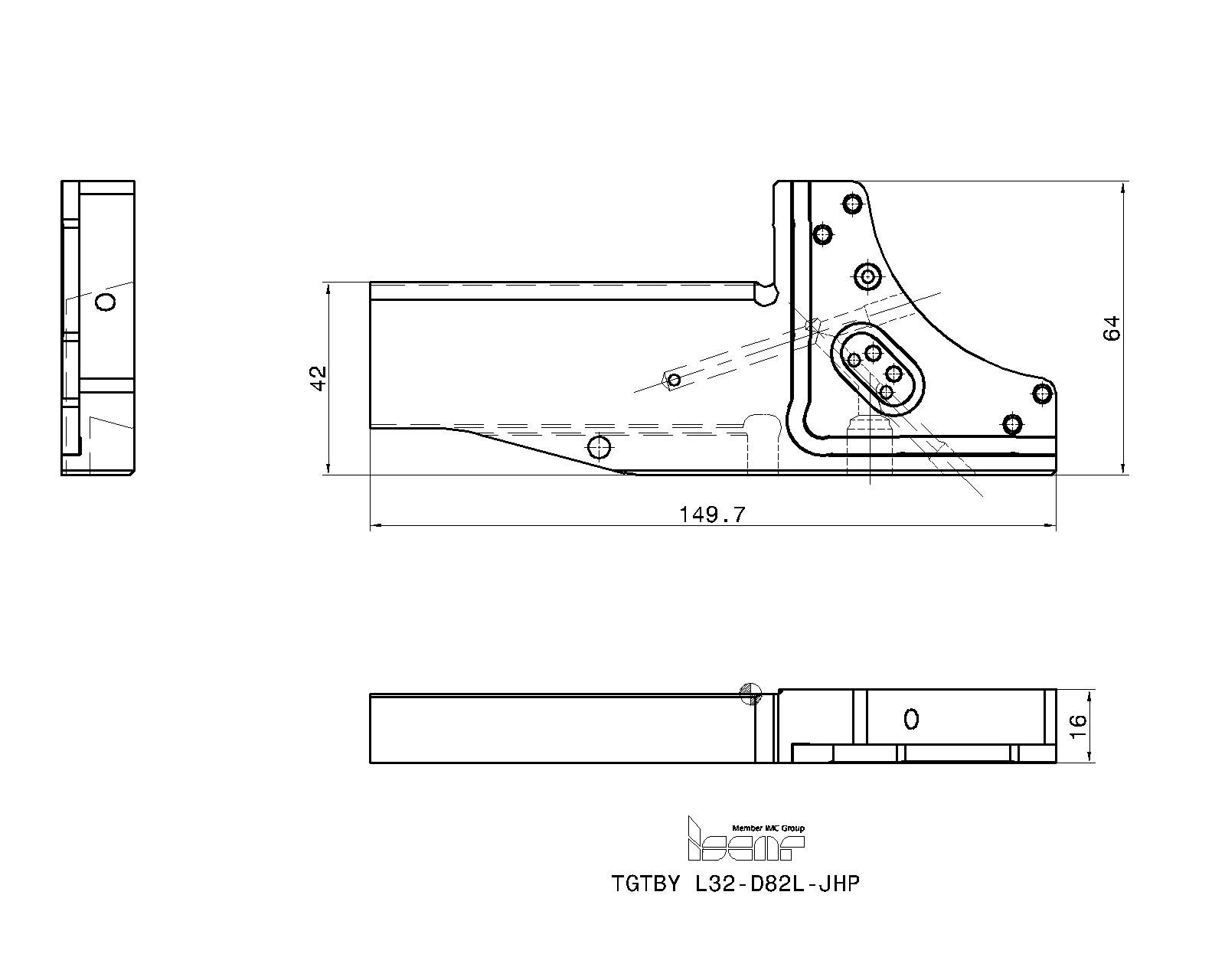

2D Representation
  Spare Parts
3365983SR ISO 14580 M4X10Clamp screw
Details
3368387SR M4X9-SEAL-JHPTorx screw
Sealing screw		Details
0604840OR 16X2 NBRO-ring
Details
7006324JHP COPPER SEAL 1/8"Seal washer
Details
7002090BLD T20/S7Torx blade
Details
For limiting torque, use optional 7007026 BLD 6 T20 blade & 7007221 TSA 6 5-14 handle.
7002244SW6-SDHandle
Details
7006612PLG G1/8 TL360Plug
Details
7000045HW 5.0Hex key
Details
7006583SIDE THRUST PIN 3mmPin
Details
