ISCAR Cutting Tools - Metal Working Tools - HFPAD-JHP : 3375974 - HFPAD 4R-44-T14-JHP
Geometry Checker ×

Family Designation: HFPAD-JHP Adapters for face grooving and turning, for 40-3000mm diameter range. Part of the MODULAR-GRIP system.

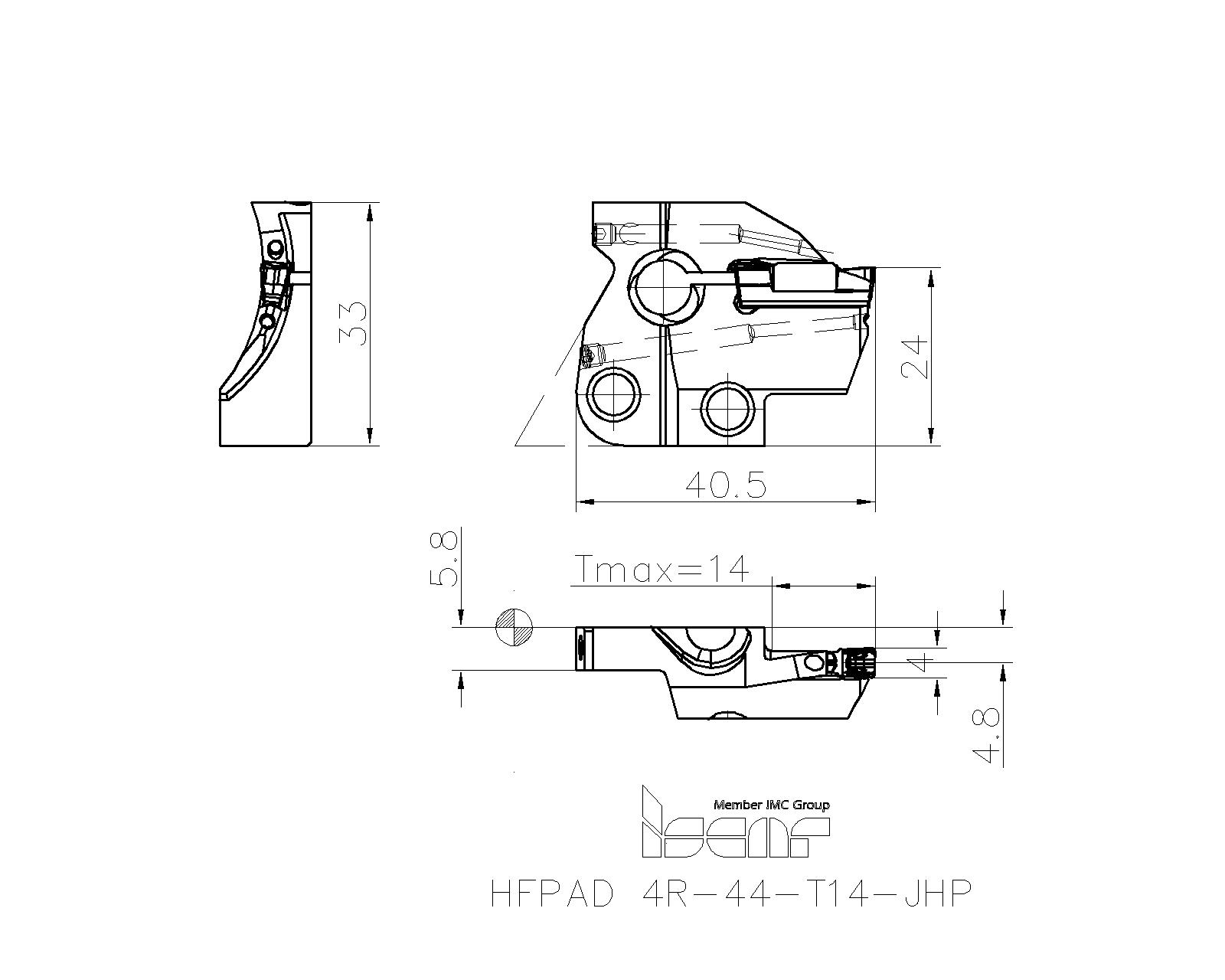

Right-hand shown

Right-hand shown

Item Designation: HFPAD 4R-44-T14-JHP
CW CDX WF WB OAL HF OAH DAXN  DAXX  HAND APMX CSP  GICATGIREMgiic
4.0014.004.805.8040.5024.033.0044.058.0R~~1~3375974 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3375974 164672<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3375974&cat=3375974&itemDesc=HFPAD 4R-44-T14-JHP"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a><a href="javascript:OpenDxf('3375974', 'HFPAD 4R-44-T14-JHP' , 'IscarDxf' , '3375974-HFPAD 4R-44-T14-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3375974&itemDesc=HFPAD 4R-44-T14-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3375974&itemDesc=HFPAD 4R-44-T14-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
WF(assembly)=WF(shank) + WF(adapter)
HGN,GRIP,DGN inserts can be used only with right-hand adapters, HGPL inserts with left-hand adapters
For insert clamping instructions, click on "More Info"
3D Representation
2D Representation
