Family Designation: HFPAD-JHP Adapters for face grooving and turning, for 40-3000mm diameter range. Part of the MODULAR-GRIP system.
Right-hand shown

Right-hand shown

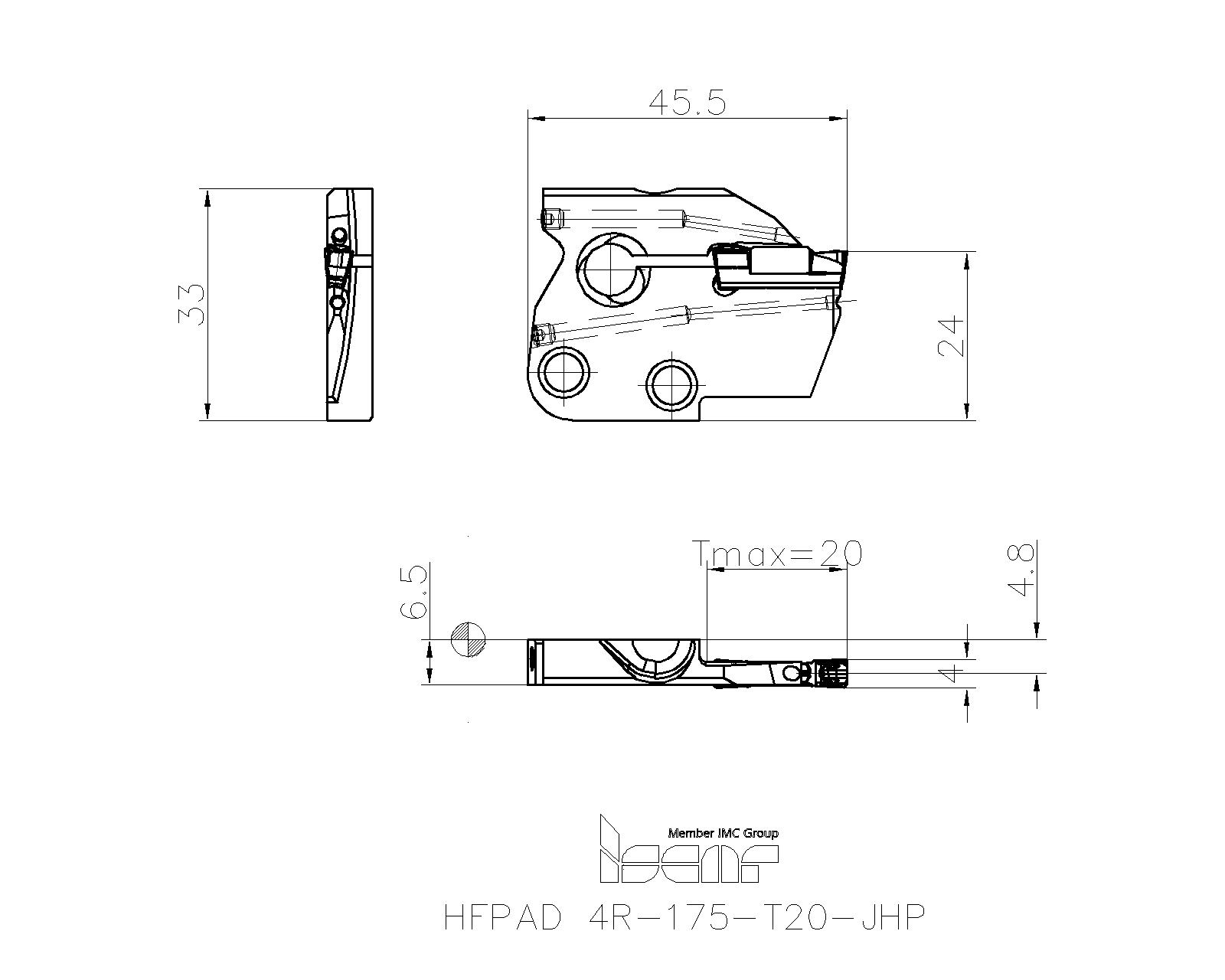

Item Designation: HFPAD 4R-175-T20-JHP
CW CDX WF WB OAL HF OAH DAXN  DAXX  HAND APMX CSP  GICATGIREMgiic
4.0020.004.806.5045.5024.033.00175.0800.0R~~1~3375976 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3375976 1022<a href="javascript:OpenDxf('3375976', 'HFPAD 4R-175-T20-JHP' , 'IscarDxf' , '3375976-HFPAD 4R-175-T20-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3375976&itemDesc=HFPAD 4R-175-T20-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3375976&itemDesc=HFPAD 4R-175-T20-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
WF(assembly)=WF(shank) + WF(adapter)
HGN,GRIP,DGN inserts can be used only with right-hand adapters, HGPL inserts with left-hand adapters
For insert clamping instructions, click on "More Info"
3D Representation
Assembly Video
2D Representation
