Family Designation: DCN C-8D

SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

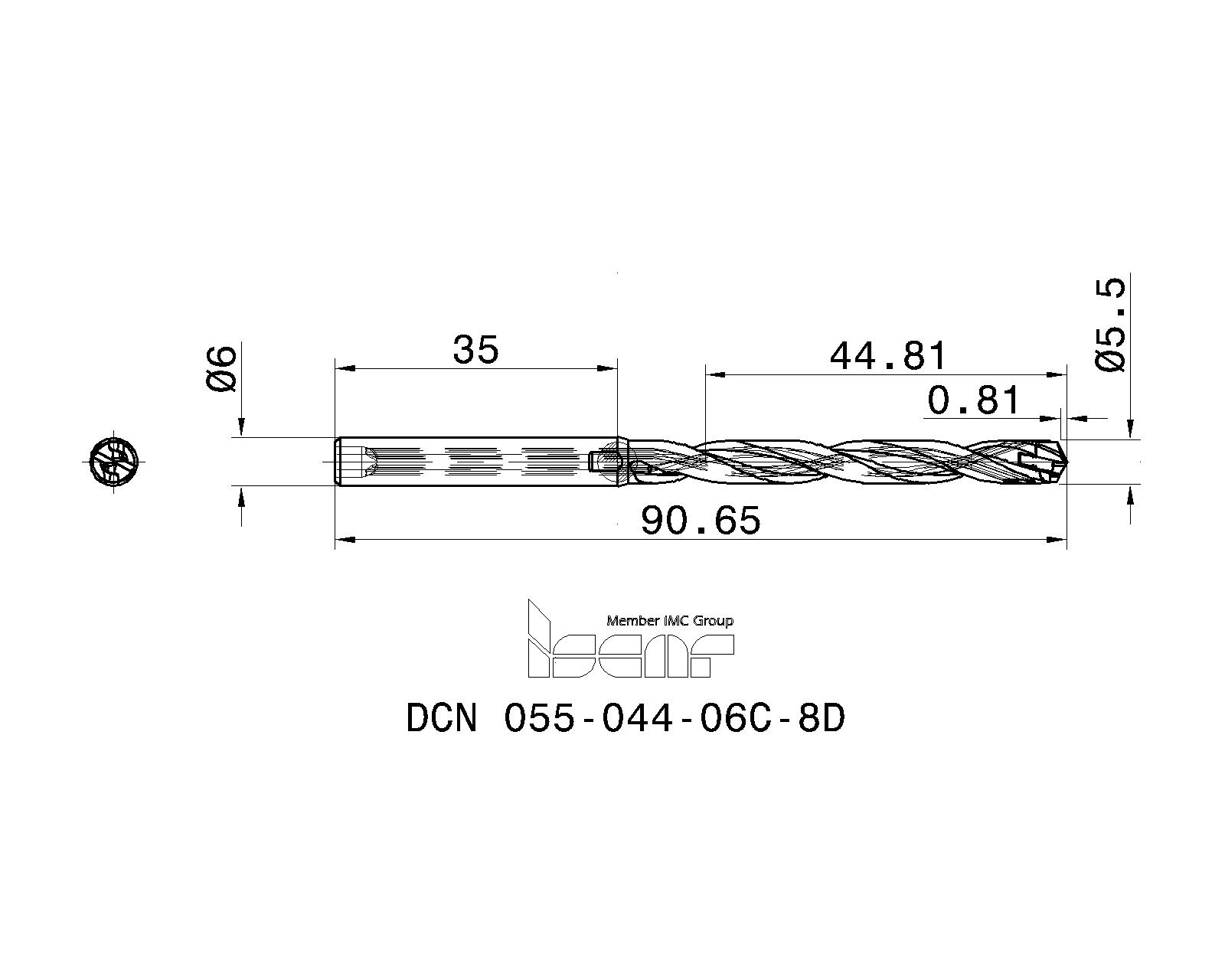

Item Designation: DCN 055-044-06C-8D

DCN	DCX	DCONMS	LU	PL	LS	OAL	SSC	ZEFF	CSP	CCMS	MIID	DC	HAND	IFS	NOF	GICAT	GIREM	giic
5.50	5.90	6.00	44.81	0.810	35.0	90.70	5.5	2~	1~	ZYL01F6000h$06~	ICP 055	5.50~	R~	~	2~	3381841		0

Catalog No	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA	StockPerUser
3381841			96	296	10				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3381841&itemDesc=DCN 055-044-06C-8D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3381841&itemDesc=DCN 055-044-06C-8D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3381841&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1
Do not mount smaller drilling heads other than the specified range of the drill body

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
