Family Designation: ECP-H4L-CFR

CHATTERFREE 4 flute solid carbide roughing endmills with 36-37° different helix and long chip splitting cutting edges for high stock removal rates. Mainly for machining stainless steel and high temperature alloys.

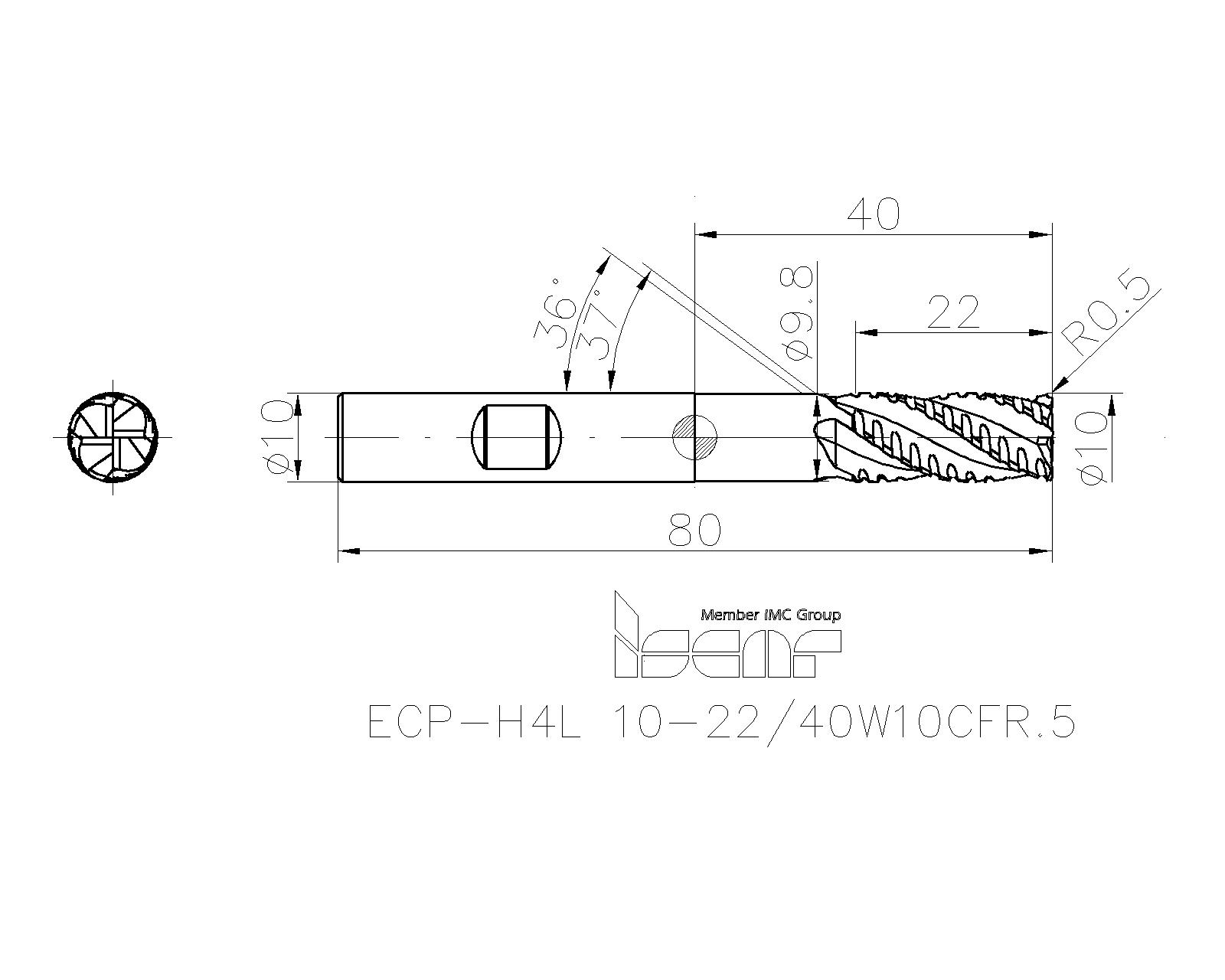

Item Designation: ECP-H4L 10-22/40W10CFR.5

DC	DCONMS	APMX	LU	OAL	NOF	Shank	RE	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	RMPX°	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
10.00	10.00	22.00	40.0	80.00	4	W	0.50	~	ZYL10G1000h$06~	~	0~	IC900 ~	R~	90.0~	5.0~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	3382178		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3382178	IC900			3	0	25			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3382178&cat=3382178&itemDesc=ECP-H4L 10-22/40W10CFR.5"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('3382178', 'ECP-H4L 10-22/40W10CFR.5' , 'IscarDxf' , '3382178-ECP-H4L 10-22 40W10CFR.5');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3382178&itemDesc=ECP-H4L 10-22/40W10CFR.5"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3382178&itemDesc=ECP-H4L 10-22/40W10CFR.5"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
