ISCAR Cutting Tools - Metal Working Tools - SCD-CVD : 3384465

Geometry Checker ×

Family Designation: SCD-CVD

Solid carbide drills with CVD coating for composite materials (CFRP) and Stack Machining

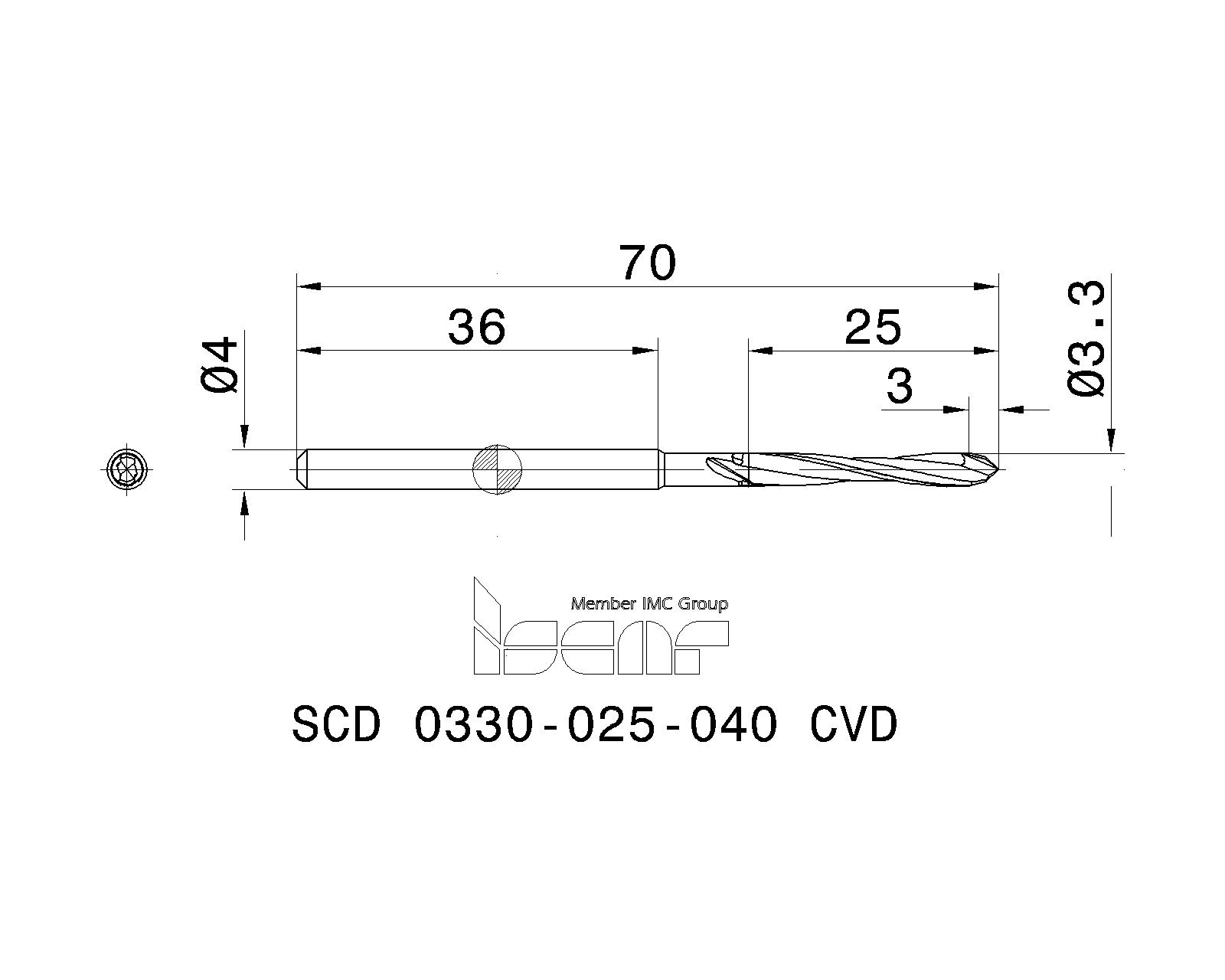

Item Designation: SCD 0330-025-040 CVD

DC	DCONMS	LU	LCF	LS	OAL	PL	CSP	HAND	NOF	CCMS	GRDMFG	GICAT	GIREM	giic
3.30	4.00	25.00	30.0	36.0	70.00	3.000	0~	R~	2~	ZYL01F4000h$06~	~	3384465		0

Catalog No	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	DXF	STP	Stock Availability US EU E. Asia	P21	ITA	StockPerUser
3384465			1	6	0			<a href="javascript:OpenDxf('3384465', 'SCD 0330-025-040 CVD' , 'IscarDxf' , '3384465-SCD 0330-025-040 CVD');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384465&itemDesc=SCD 0330-025-040 CVD"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3384465&itemDesc=SCD 0330-025-040 CVD"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3384465&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1
