Family Designation: DGN/DGNM-J/JS/JT

First choice for soft materials, parting of tubes, small diameters and thin-walled parts. General applications on low carbon, alloy and austenitic stainless steel. Low-to-medium feeds. JS - sharp corner. DGNM - single-ended.

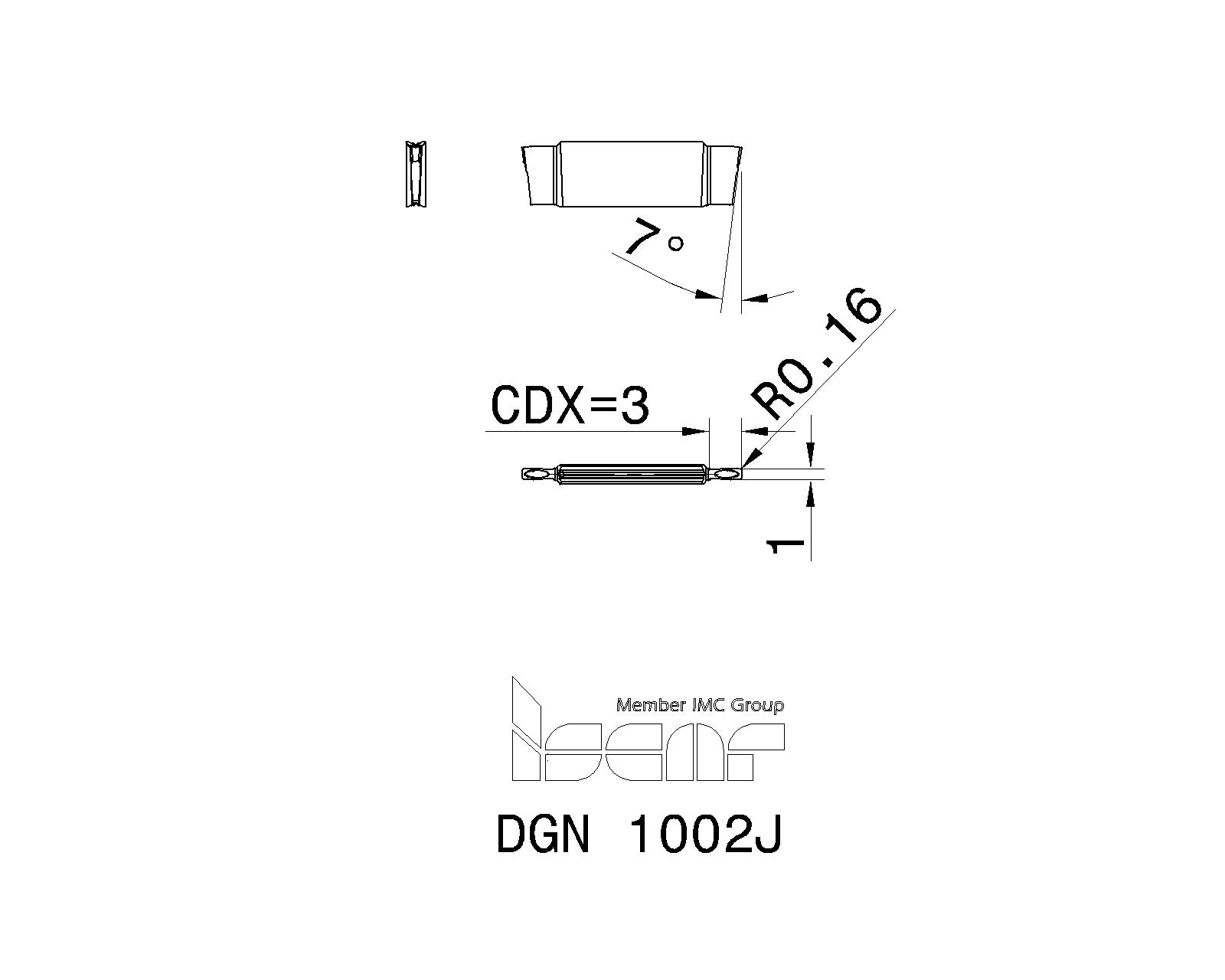

Item Designation: DGN 1002J

CW	CWTOL	RE	RETOL	CDX	INSL	HAND	S2	S1	CBMD	Semi- (Q)	CEDC	CB1	S5	fg (min)	fg (max)	NO LINK	Mod	Wi	Ri	UST	SC	ISCTMP		AN	BW	ClssID	COATP	CSP	DAXN	DAXX	DMIN	GAN	GRDMFG	GTC	GTC_2	IFS	IIC	ISCTMP_2	ISYC	LOGH	LOGL	LOGW	PDPT	PLIB2	S	S1	TCE	Utility	WEP	WF	WFA	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
1.00	0.020	0.16	0.020	3.00	21.00	N~	~	1~	~	0~	2~	M6E~	2~	0.02	0.07	2~	GR100~	1.00~	0.16~	C~	L~	TUGEDS~	0.00~	7.0~	-~	71DDA089C8D1E~	~	0~	-~	-~	-~	-~	IC1010~	INSCPRT_MIS$$DSE~	INSCPRT_MIS$$DSI~	7~	IS$$95784241132216~	TUGIDS~	202-03~	0.00~	0.00~	0.00~	-~	~	-~	-~	~	U~	0~	~	-~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~		Superalloys and titanium~	Carbide~	TiAlN ~	6003078		5

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	GTC	STP	P21
3384487	IC1010		1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3384487&cat=3384487&itemDesc=DGN 1002J"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384487&itemDesc=DGN 1002J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3384487&itemDesc=DGN 1002J"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
3384488	IC1030		1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3384488&cat=3384488&itemDesc=DGN 1002J"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384488&itemDesc=DGN 1002J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3384488&itemDesc=DGN 1002J"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
6002653	IC328	Alternative	1	1280	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6002653&cat=6002653&itemDesc=DGN 1002J"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002653&itemDesc=DGN 1002J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6002653&itemDesc=DGN 1002J"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
6002945	IC908		1	3200	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6002945&cat=6002945&itemDesc=DGN 1002J"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002945&itemDesc=DGN 1002J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6002945&itemDesc=DGN 1002J"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
6003078	IC1028	Alternative	1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6003078&cat=6003078&itemDesc=DGN 1002J"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6003078&itemDesc=DGN 1002J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6003078&itemDesc=DGN 1002J"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 10
JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
