Family Designation: DGN/DGNM-J/JS/JT

First choice for soft materials, parting of tubes, small diameters and thin-walled parts. General applications on low carbon, alloy and austenitic stainless steel. Low-to-medium feeds. JS - sharp corner. DGNM - single-ended.

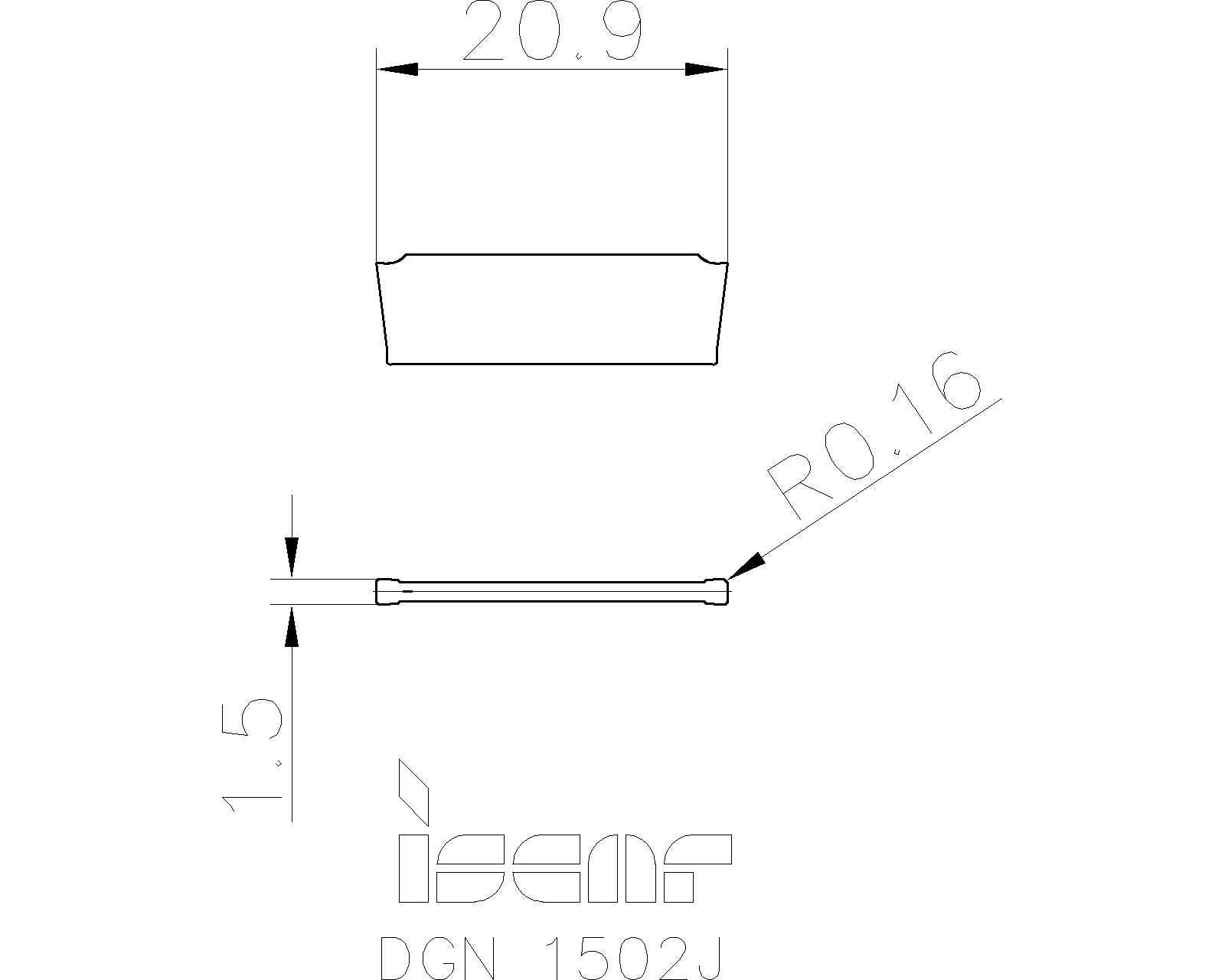

Item Designation: DGN 1502J

CW	CWTOL	RE	RETOL	CDX	INSL	HAND	CBMD	CEDC	fg (min)	fg (max)	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
1.50	0.030	0.16	0.020	18.00	20.90	N~	~	2~	0.03	0.12	L~	7.0~	~	0~	-~	-~	IC1010~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~		Superalloys and titanium~	Carbide~	TiAlN ~	6094257		5

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	AvailFarEast	DXF	STP
3384512	IC1010		1	0	732	<a href="javascript:OpenDxf('3384512', 'DGN 1502J' , 'IscarDxf' , '3384512-DGN 1502J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384512&itemDesc=DGN 1502J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>
3384513	IC1030		1	0	94	<a href="javascript:OpenDxf('3384513', 'DGN 1502J' , 'IscarDxf' , '3384513-DGN 1502J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384513&itemDesc=DGN 1502J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>
6002958	IC908	Alternative	1	5904	4196	<a href="javascript:OpenDxf('6002958', 'DGN 1502J' , 'IscarDxf' , '6002958-DGN 1502J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002958&itemDesc=DGN 1502J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>
6003086	IC1028	Alternative	1	6080	506	<a href="javascript:OpenDxf('6003086', 'DGN 1502J' , 'IscarDxf' , '6003086-DGN 1502J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6003086&itemDesc=DGN 1502J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>
6094257	IC328	Alternative	1	960	1302	<a href="javascript:OpenDxf('6094257', 'DGN 1502J' , 'IscarDxf' , '6094257-DGN 1502J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6094257&itemDesc=DGN 1502J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>

Items Per Package : 10
JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds
