ISCAR Cutting Tools - Metal Working Tools - DGAQ : 3384864 - DGAQ D52-4-2Z
Geometry Checker ×

Family Designation: DGAQ Parting and grooving square adapters carrying DO-GRIP inserts


Item Designation: DGAQ D52-4-2Z
OAL OAH CWN  CWX  WB HF CUTDIA  MIID  CSP  HAND CCMS GICATGIREMgiic
50.0050.004.004.003.2043.552.0DGN 40N~IMC10C0520$$$$~3384864 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3384864 80376<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3384864&cat=3384864&itemDesc=DGAQ D52-4-2Z"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a><a href="javascript:OpenDxf('3384864', 'DGAQ D52-4-2Z' , 'IscarDxf' , '3384864-DGAQ D52-4-2Z');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3384864&itemDesc=DGAQ D52-4-2Z"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3384864&itemDesc=DGAQ D52-4-2Z"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
When using 2 and 3mm double-sided inserts, the depth of cut is limited up to 19mm. For larger depth, use a DGNM type single-ended insert.
3D Representation

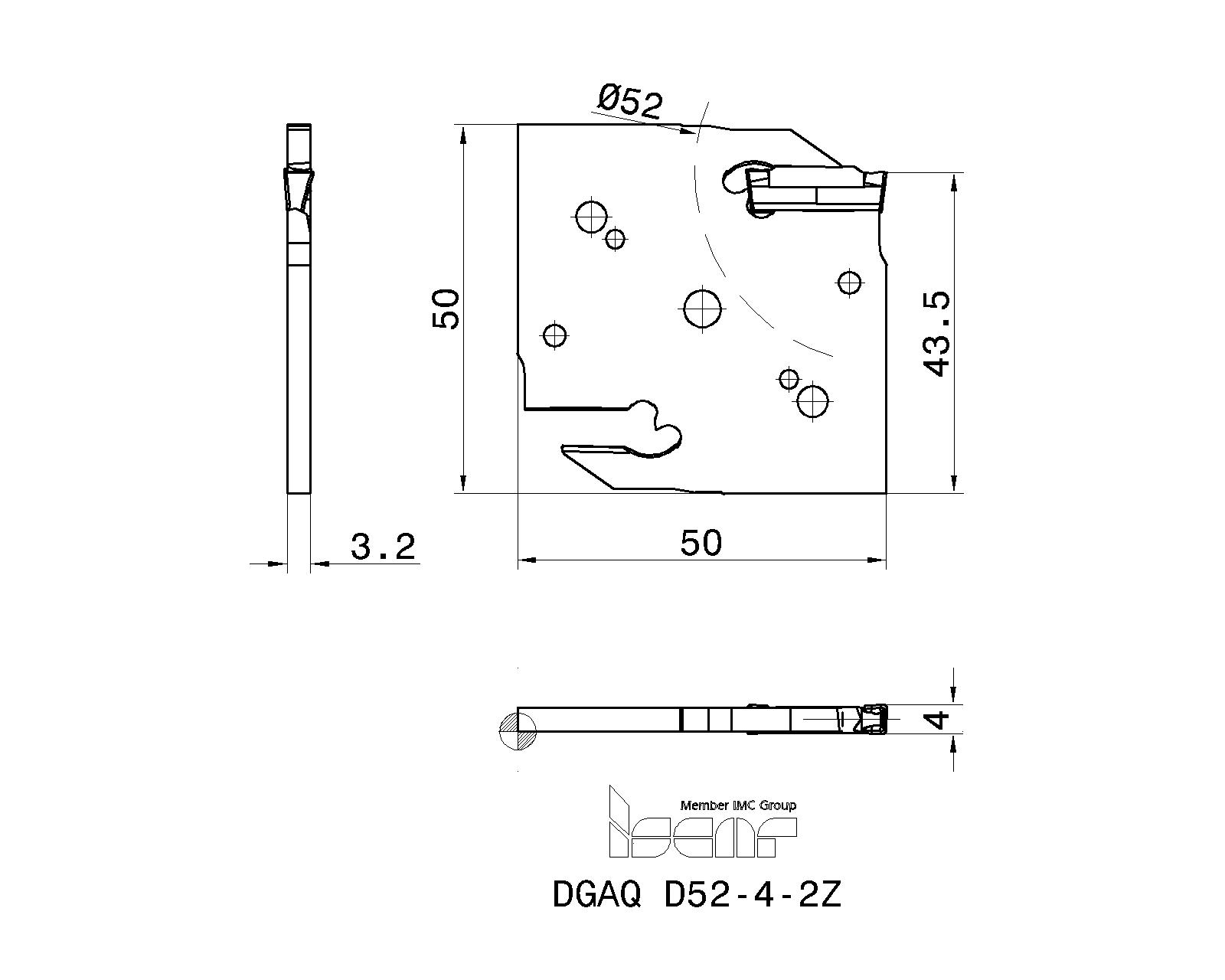

2D Representation
  Spare Parts
3365983SR ISO 14580 M4X10Clamp screw
Details
7001923EDG 33A
(Optional, should be ordered separately)		Extractor
Details
