Family Designation: HSK A-SRK-CX Thermal Shrink Chucks with HSK DIN69893 Form A tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide tools with h6 tolerance.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  G2.5/25000 RPM  COOLANT THROUGH TOOL

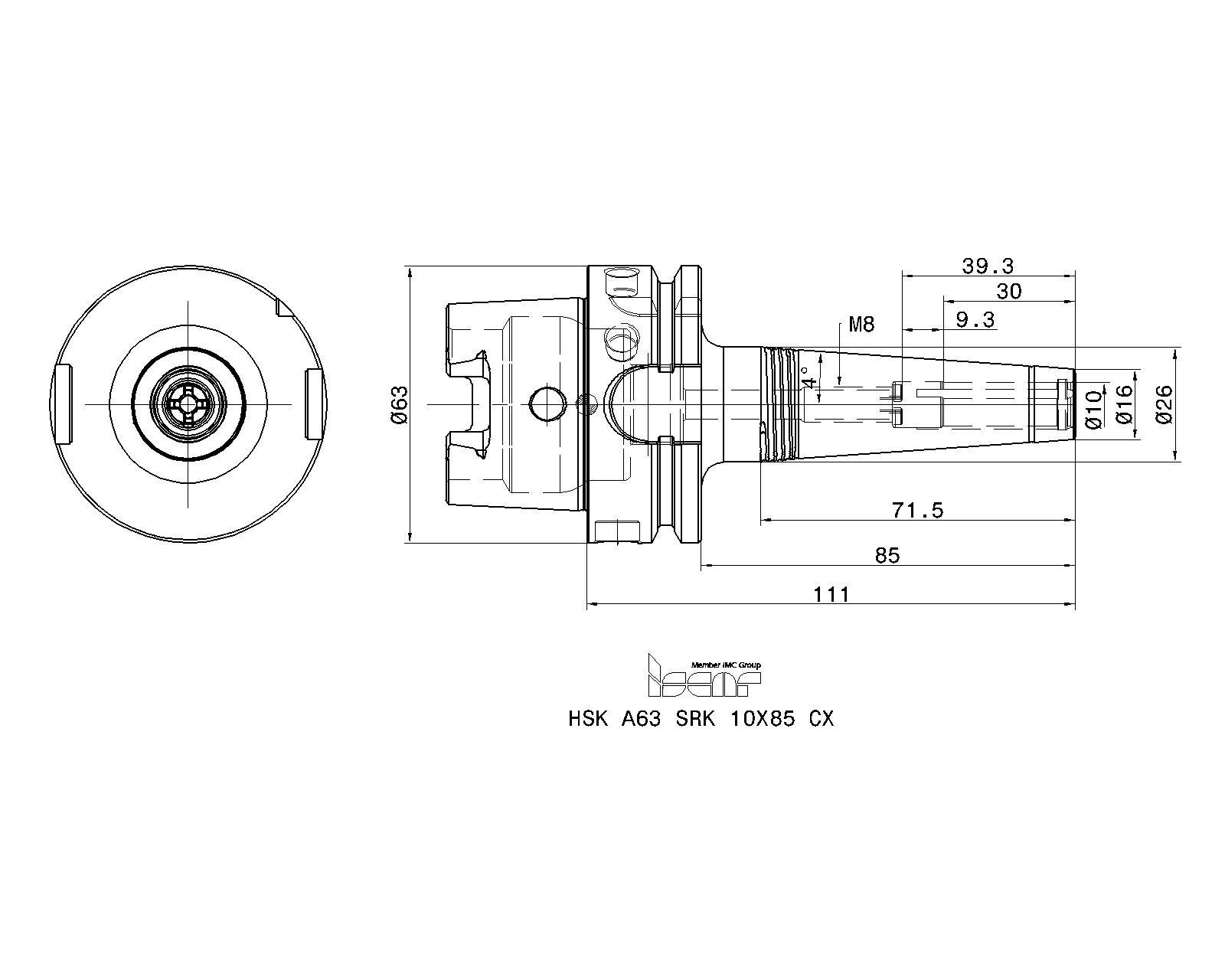

Item Designation: HSK A63 SRK 10X85 CX
DCONMS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS LSCNWS THID Key  DCP  Fig. OAL CSP  CCMS GICATGIREMgiic
63.0010.0016.0026.00111.0085.0071.509.3039.3030.00M84.00110.56~1~HSK01C0630~3387124 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
3387124 1040<a href="javascript:OpenDxf('3387124', 'HSK A63 SRK 10X85 CX' , 'IscarDxf' , '3387124-HSK A63 SRK 10X85 CX');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3387124&itemDesc=HSK A63 SRK 10X85 CX"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=3387124&itemDesc=HSK A63 SRK 10X85 CX"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (to be ordered separately).
For solid carbide tools
Preset screw CX allows supply of coolant via JET channels - not to be removed!
For shank dimensions click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
7007533PRESET CX M8X16Preset screw
Details
4561256COOLING TUBE HSK A63
(Optional, should be ordered separately)
Cooling tube
Details
4561258WRENCH COOL TUBE HSK63
(Optional, should be ordered separately)
Cooling tube wrench
Details
