Family Designation: ER-SEAL-AA-JET DIN 6499/ ISO 15488-B ER Sealed Single Diameter Collet with Special Anti-Corrosion Protection Featuring 4 Cooling Jets


 CONCENTRICITY .0002  HARDNESS 46-48  100 BAR (1450 PSI) MAX.

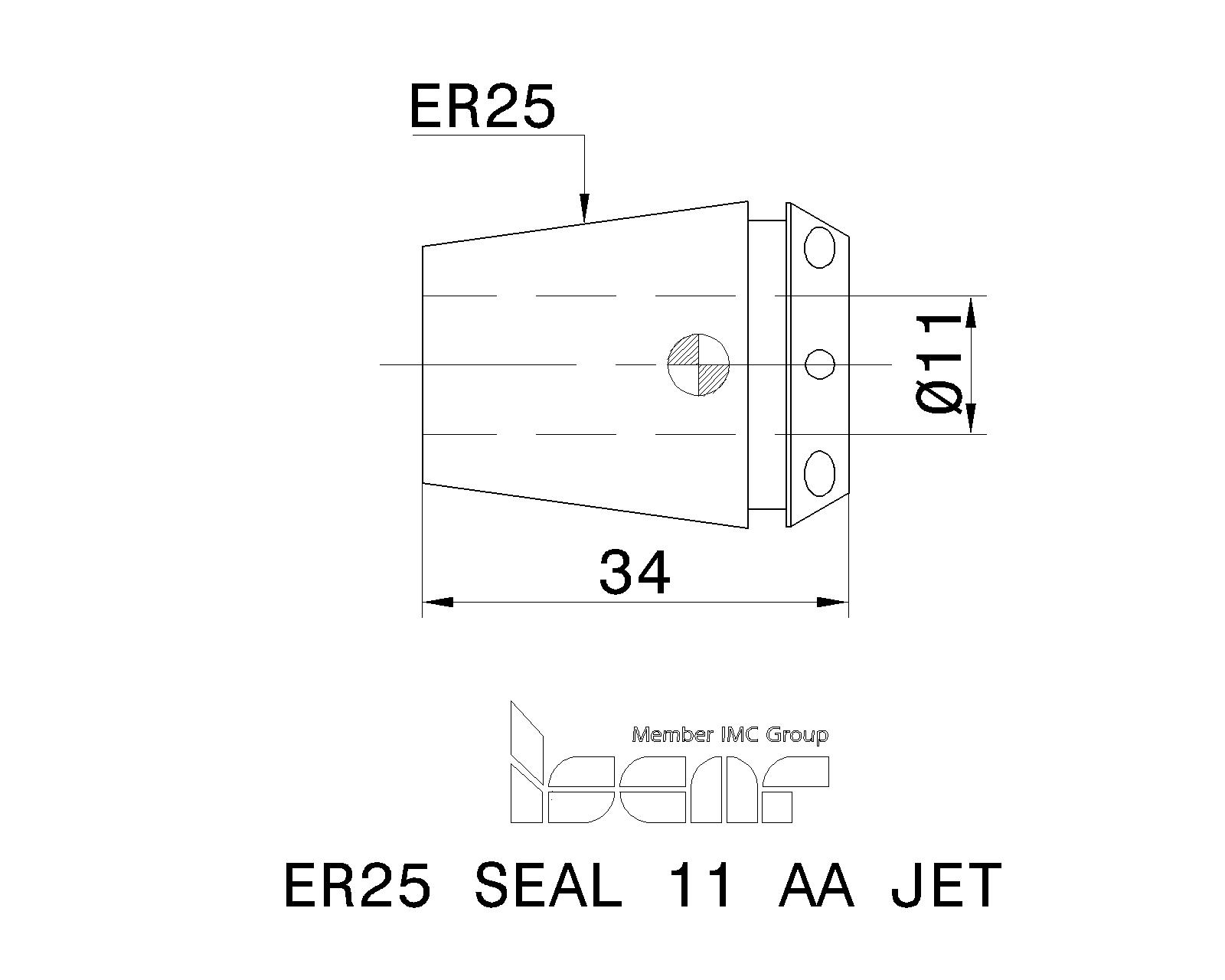

Item Designation: ER25 SEAL 11 AA JET
SS DCONWS Shank BMC OAL CCTMS CCFMS CUBPMS TCDCONMSCCMS CCTWS CCFWS CUBPWS CZCWS  TCDCONWSCCWS BD DFC ISYC ISCTMP BSC ClssID CMCS CSP  CXSC CZCMS  LTA GICATGIREMgiic
ER2511.00C~S~34.00~SZD~02~C~~SZD02C0250~ZYL~01~G~1100~~ZYL01G1100~26.00~~405-01~~0.00~0~726F59BDC3B08~2~1~4~0250~12.00~3389799 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21
3389799 300Not Available<br /><a href="javascript:openDxfRequest('2D','3389799', 'ER25 SEAL 11 AA JET' , 'M');">2D Required</a>          Not Available<br /><a href="javascript:openDxfRequest('3DL','3389799', 'ER25 SEAL 11 AA JET' , 'M');">3D Required</a><a href="FilesDownload.aspx?FileType=P&cat=3389799&itemDesc=ER25 SEAL 11 AA JET"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
Recommended for improved runout and clamping torque.
3D Representation
Assembly Video
2D Representation
Not Available 2D Required
