ISCAR Cutting Tools - Metal Working Tools - D3N R-8D : 3392188

Geometry Checker ×

Family Designation: D3N R-8D

Exchangeable head 3 flute drills with internal coolant holes and a round shank, drilling depth 8xD

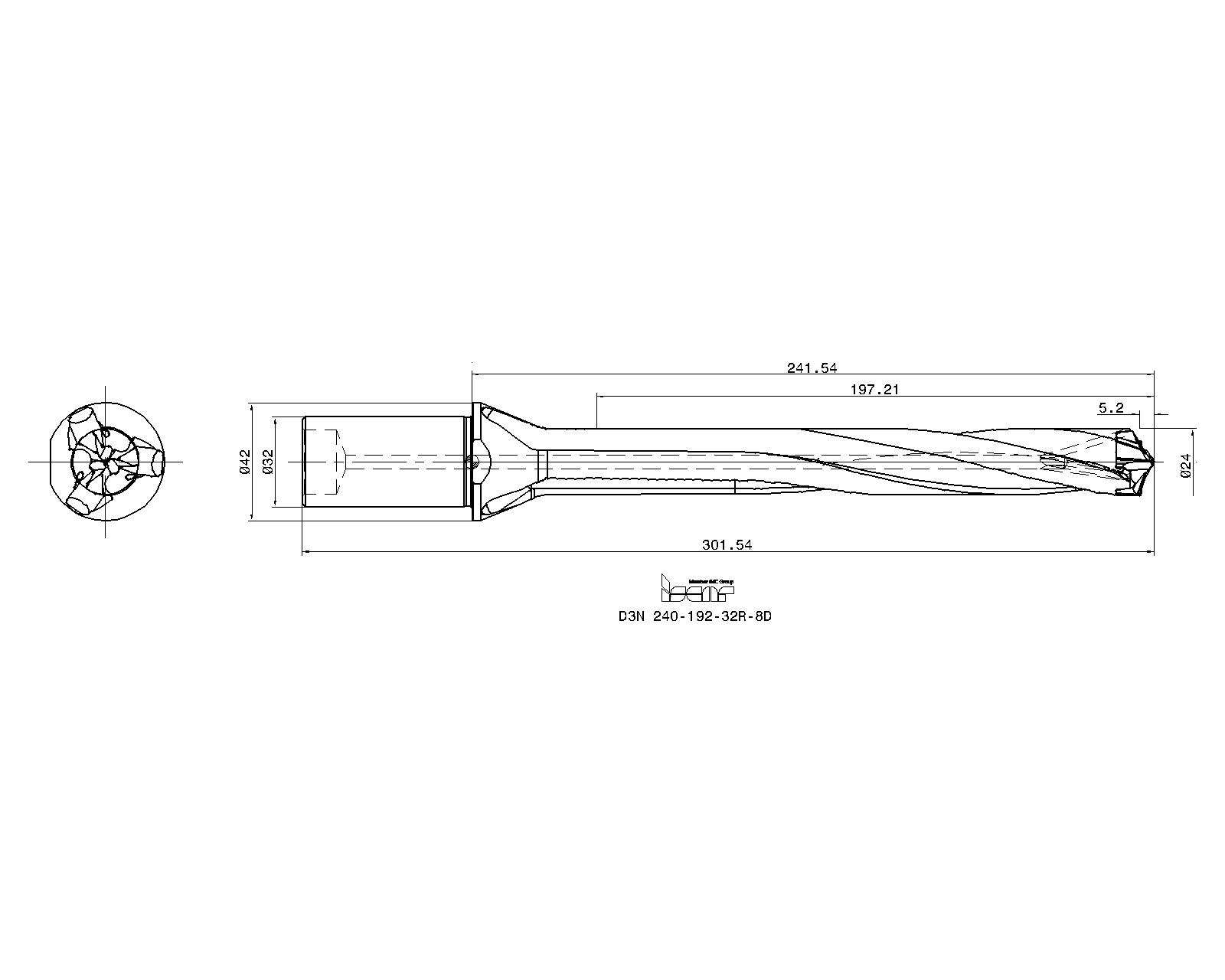

Item Designation: D3N 240-192-32R-8D

DCN	DC	DCX	DCONMS	DF	LU	LPR	PL	OAL	SSC	MIID	L/D	Zeff	CSP	MinTol	MaxTol	Mod	d	LS	L	Shank	LF	BMC	TCDCONMS	CUBPMS	CCMS	LATTH	IIC_3	IIC_4	IIC_5	IIC_6	LTA	FHA	ClssID	ISCTMP		CCFMS	CCTMS	CNSC	CNT	CRKS	CXSC	CZCMS	GAMF	GAMP	GTC	HAND	IFS	IIC	IIC_2	ISYC	LCF	LSCMS	LSCNMS	MTP	NOF	RPMX	SIG	SPI	TSYC	GICAT	GIREM	giic
24.00	24.00~	24.90	32.00	42.00	197.21	241.54	5.210	301.50	24	H3P 240-IQ	~	3~	1~	~	~	~	~	~	~	C~	~	~	~	~	-990000~	~	~	~	~	~	236.33~	~	71E01A0608FE4~	~	0.35~	~	~	~	~	~	~	0000~	~	~	~	~	~	IS$$179589074377488~	~	306-10~	~	~	~	~	~	~	~	~	~	3392188		0

Catalog No	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA
3392188			0	32	0				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3392188&itemDesc=D3N 240-192-32R-8D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3392188&itemDesc=D3N 240-192-32R-8D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3392188&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1
Do not mount smaller drilling heads other than the specified range of the drill body

Spare Parts
	3346631	K D3N 24-25.99	Clamping key
