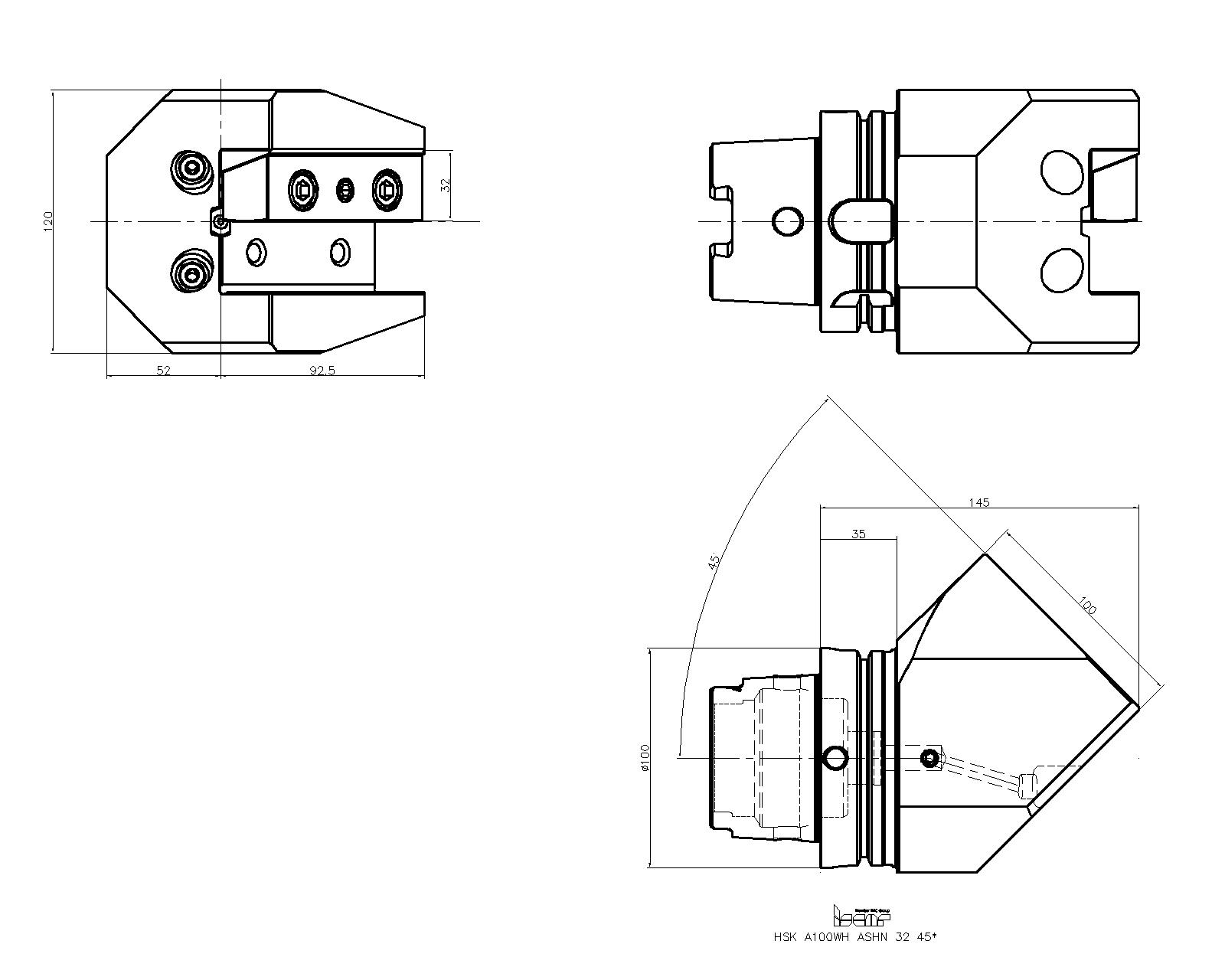

Family Designation: HSK A-WH-ASHN-45 Square shank tool adapters with HSK exchangeable shanks for 45° mounting on turn-mill machines (right-or-left hand tools can be used).
Representative Image
Right-hand shown

Representative Image
Right-hand shown

 100 BAR (1450 PSI) MAX.
Item Designation: HSK A100WH ASHN 32 45*
DCONMS H WSC LPR LSCWS L5 OAL HAND CSP  DCP  GICATGIREMgiic
100.0032.032.0145.00100.0035.00~N~1~13396222 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3396222 3048<a href="javascript:OpenDxf('3396222', 'HSK A100WH ASHN 32 45*' , 'IscarDxf' , '3396222-HSK A100WH ASHN 32 45 ');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3396222&itemDesc=HSK A100WH ASHN 32 45*"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=3396222&itemDesc=HSK A100WH ASHN 32 45*"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
For using left-hand toolholder, the position of the clamping spacer must be changed
Complies with ICTM standard (ISO 12164-3)
For shank dimensions, click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
