Family Designation: Y-SDJCR-S

Y-axis screw lock integral tools carrying 7° clearance 55° rhombic inserts for Swiss-Type machines.

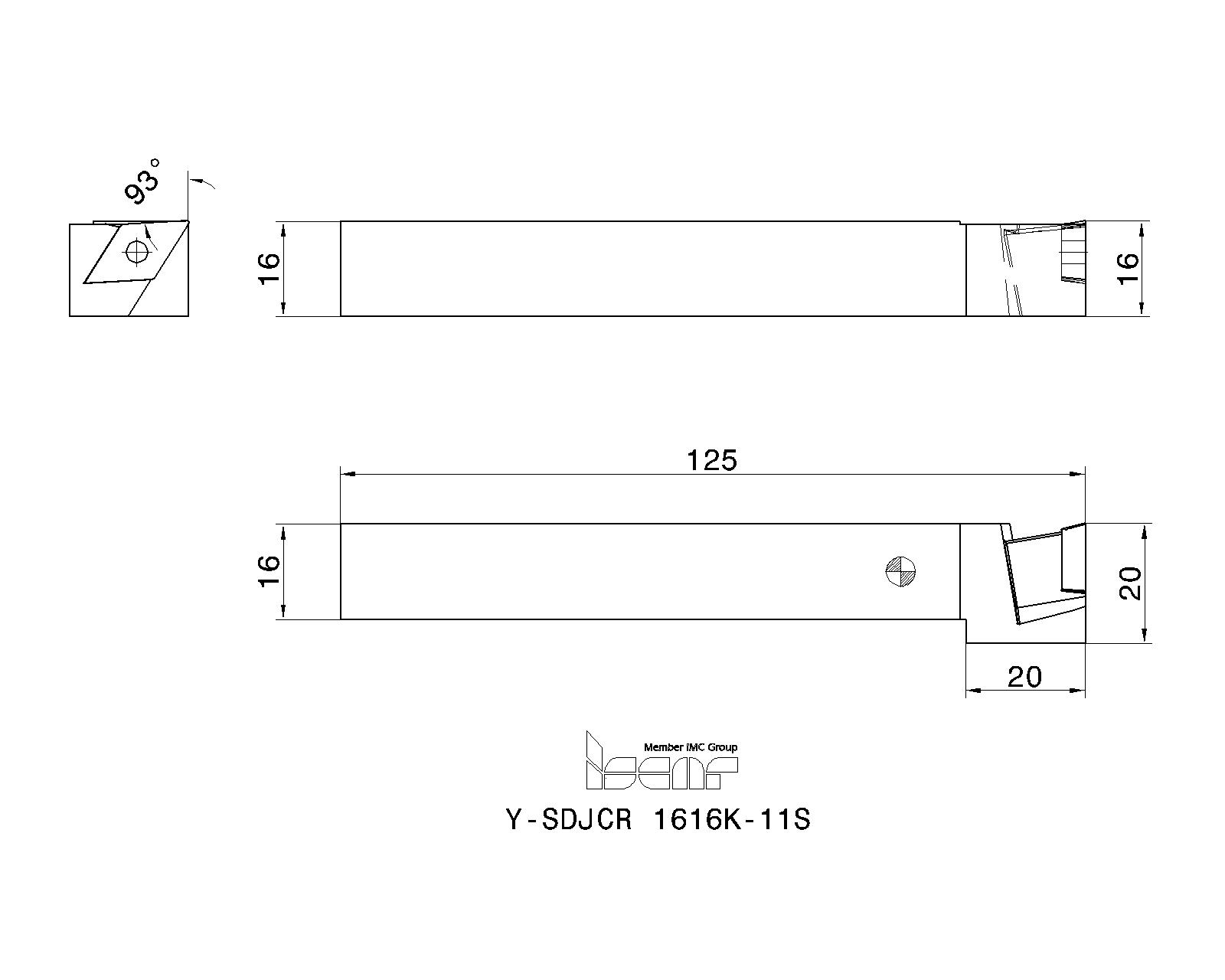

Item Designation: Y-SDJCR 1616K-11S

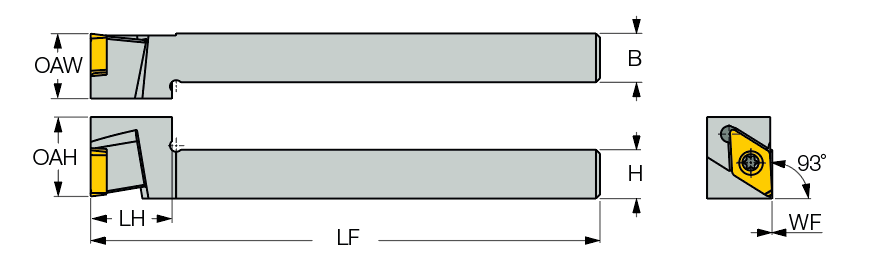

H	B	LF	LH	OAH	OAW	WF	Insert	CCMS	CSP	GICAT	GIREM	giic
16.0	16.0	125.00	21.0	20.00	16.00	0.00	DCMT 11T3..	~	0~	3396235		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3396235		3	0	56				<a href="javascript:OpenDxf('3396235', 'Y-SDJCR 1616K-11S' , 'IscarDxf' , '3396235-Y-SDJCR 1616K-11S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3396235&itemDesc=Y-SDJCR 1616K-11S"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3396235&itemDesc=Y-SDJCR 1616K-11S"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

Spare Parts
	7005582	SR 35080I	Torx screw	Details
	7000265	T-15/5	Torx key flag	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
