Family Designation: NQCH-SDACR/L-S-JHP Screw Lock JETCUT Modular Heads Carrying 7° Clearance 55° Rhombic Inserts for Swiss-Type Machines
Right hand tool shown

Right hand tool shown

 140 BAR (2000 PSI) MAX.

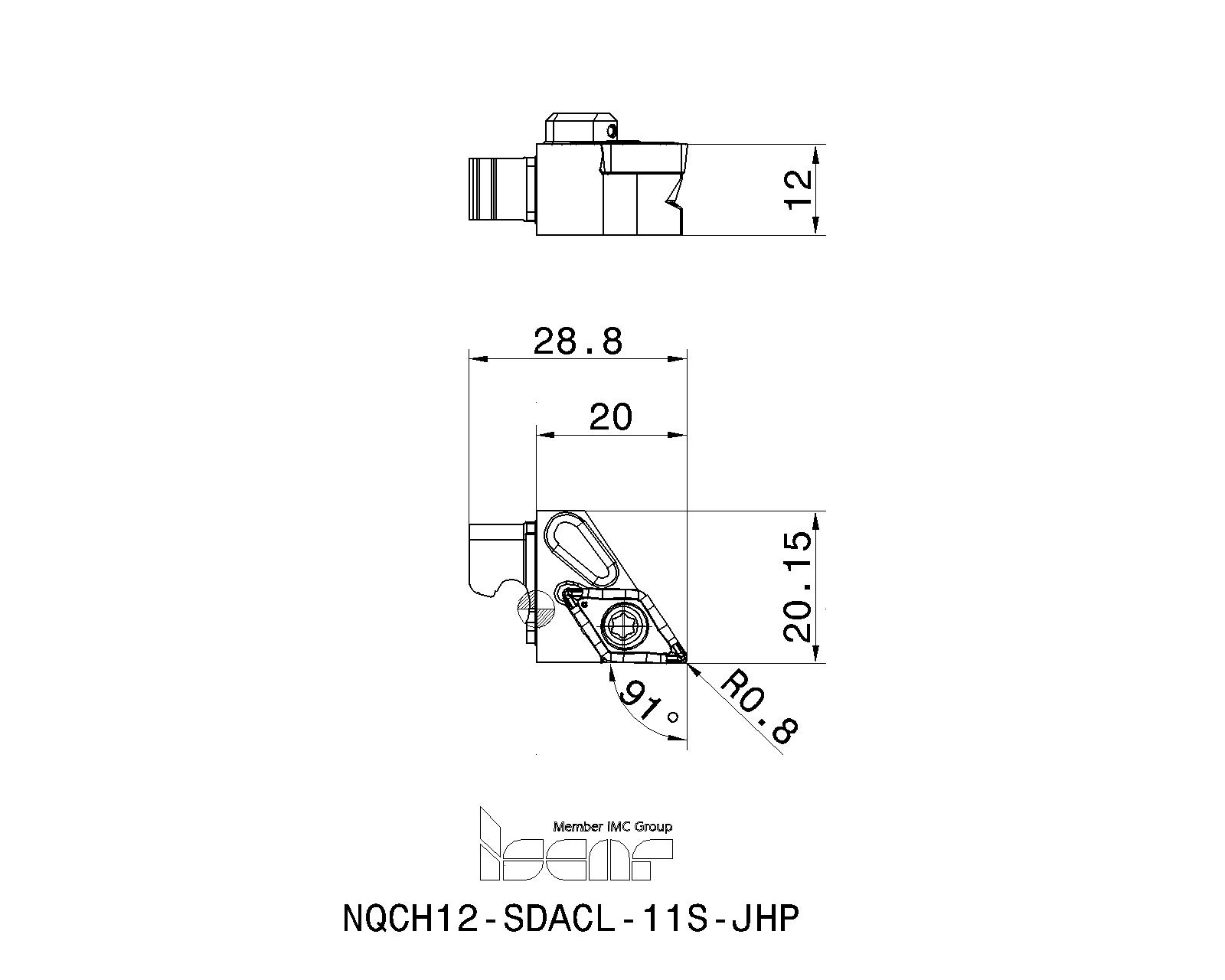

Item Designation: NQCH12-SDACL-11S-JHP
WF HF LH OAL OAW MIID  CSP  HAND CCMS GICATGIREMgiic
12.1512.020.028.8020.15DC.. 11T31~L~~3397172 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
3397172 1112184<a href="javascript:OpenDxf('3397172', 'NQCH12-SDACL-11S-JHP' , 'IscarDxf' , '3397172-NQCH12-SDACL-11S-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3397172&itemDesc=NQCH12-SDACL-11S-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=3397172&itemDesc=NQCH12-SDACL-11S-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
3D Representation
Assembly Video
2D Representation
  Spare Parts
7000225SR 16-236 PTorx screw
Details
General recommendation for tightening torque:3 N*m
7000265T-15/5Torx key flag
Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
