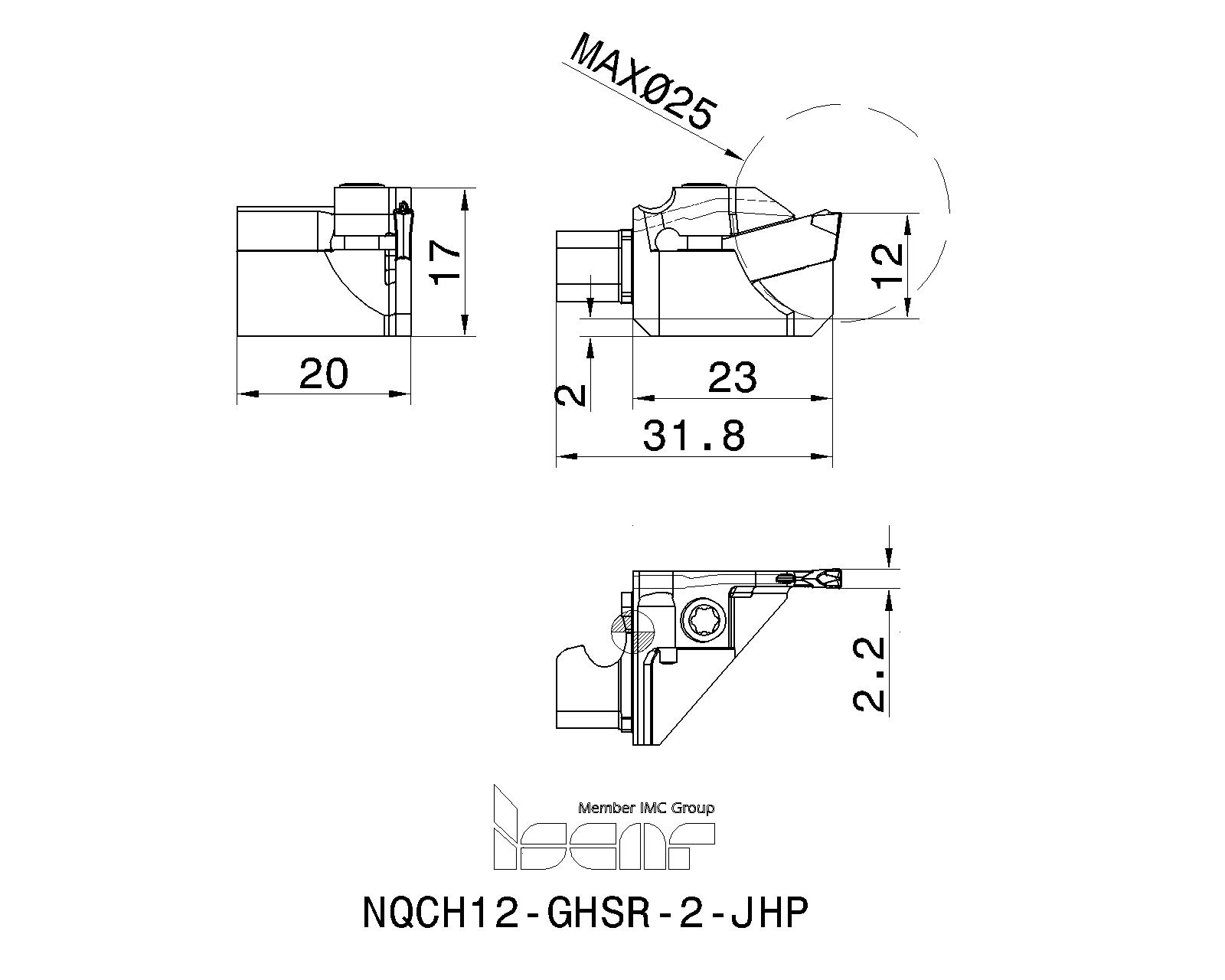

Family Designation: NQCH-GHSR/L-JHP

Screw Lock JETCUT Modular Heads Carrying CUTGRIP Inserts for Grooving and Turning on Swiss-Type Machines

Right hand tool shown

Item Designation: NQCH12-GHSR-2-JHP

HF	OAW	LB	OAH	HBH	OAL	HBL	CWN	CWX	CUTDIA	MIID	IC	HAND	CSP	GICAT	GIREM	giic
12.0	20.00	26.00	17.00	2.0	32.80	24.0	2.20	3.00	25.0	GIP 2	~	R~	1~	3397226		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3397226		1	4	32				<a href="javascript:OpenDxf('3397226', 'NQCH12-GHSR-2-JHP' , 'IscarDxf' , '3397226-NQCH12-GHSR-2-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3397226&itemDesc=NQCH12-GHSR-2-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3397226&itemDesc=NQCH12-GHSR-2-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

Spare Parts
	7000225	SR 16-236 P	Torx screw	Details
General recommendation for tightening torque:3 N*m
	7000264	T-15/3	Torx hand driver	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
