Family Designation: NQCH-SDACR/L-S-JHP

Screw Lock JETCUT Modular Heads Carrying 7° Clearance 55° Rhombic Inserts for Swiss-Type Machines

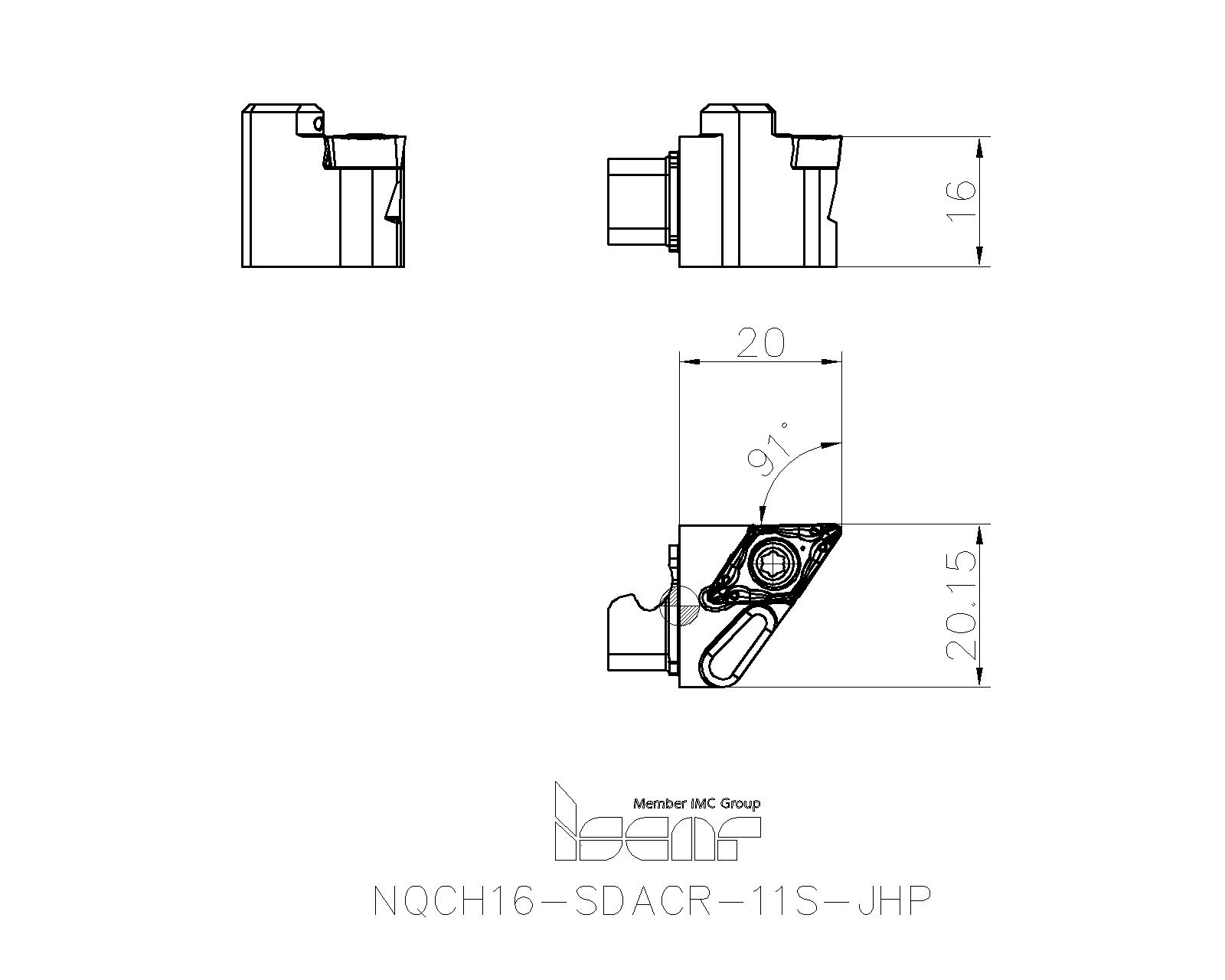

Right hand tool shown

Item Designation: NQCH16-SDACR-11S-JHP

WF	HF	CSI	LH	OAL	OAW	GAMP	GAMF	SFMT	Insert	MIID	di	CSP	CP	HAND	e	BMC	UST	ISO STD	MINI	CCFMS	CCMS	CCTMS	ClssID	CNSC	CUBPMS	CXSC	CZCMS	GTC	IIC	ISYC	KAPR S	LTA	TCDCONMS	WTA	GICAT	GIREM	giic
16.15	16.0	16~	20.0	28.80	20.15	0.0~	0.0~	~	DC.. 11T3~	DC.. 11T3	9.52~	1~	140~	R~	~	S~	~	Y~	Main Spindle~	~	~	~	71E01A0EAF067~	~	~	~	~	~	~	309-14~	~	20.00~	~	16.15~	3397237		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3397237		1	32	0				<a href="javascript:OpenDxf('3397237', 'NQCH16-SDACR-11S-JHP' , 'IscarDxf' , '3397237-NQCH16-SDACR-11S-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3397237&itemDesc=NQCH16-SDACR-11S-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3397237&itemDesc=NQCH16-SDACR-11S-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

Spare Parts
	7000225	SR 16-236 P	Torx screw	Details
General recommendation for tightening torque:3 Nm (26.5 lbfin)
	7000265	T-15/5	Torx key flag	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
