Family Designation: TGTBQ-JHP-RIB

Tool blocks for square TANG-F-GRIP and DO-F-GRIP parting and grooving adapters with high-pressure coolant, for machining next to spindle.

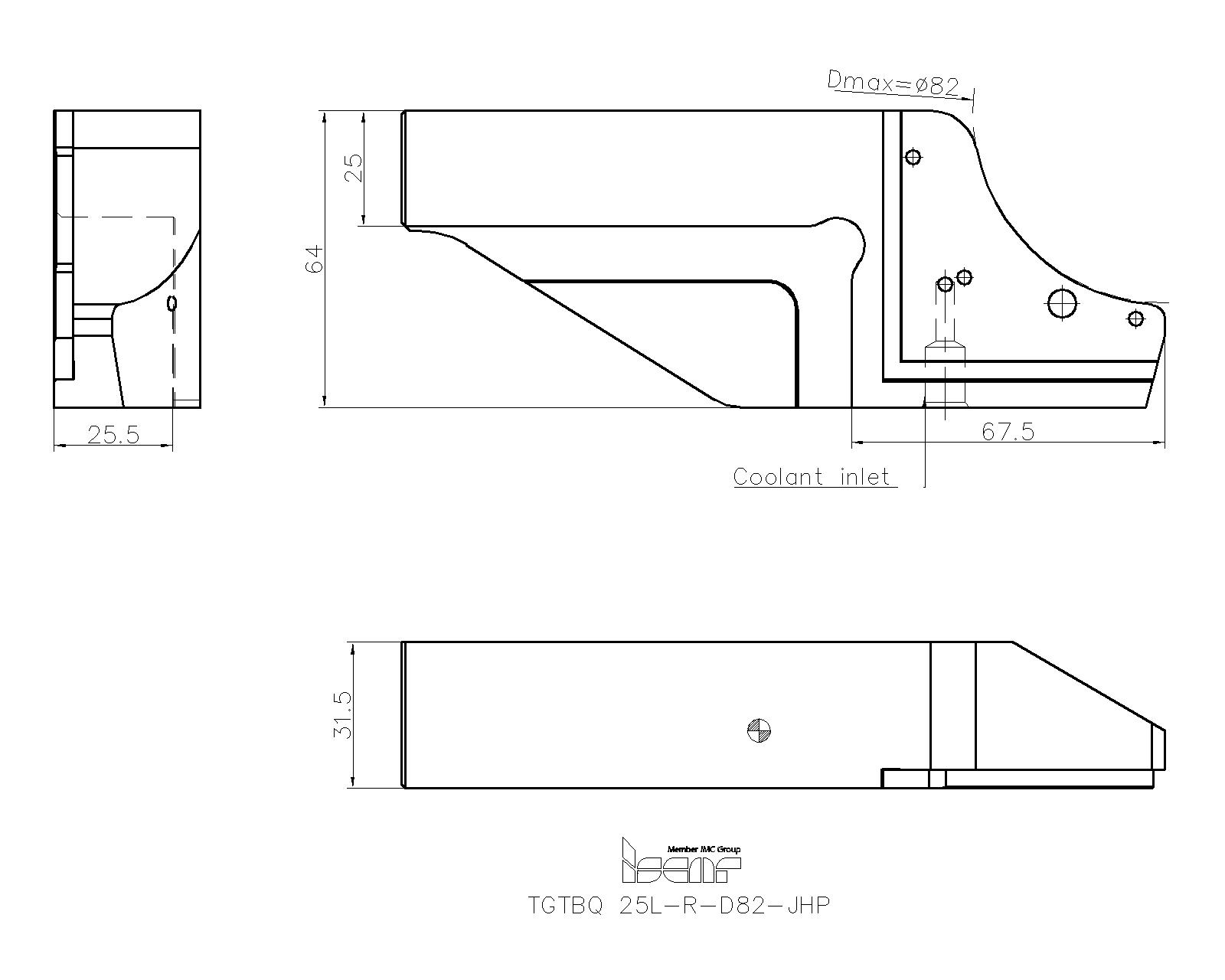

Item Designation: TGTBQ 25L-R-D82-JHP

OAH	H	B	OAW	OAL	LB	CUTDIA	HAND	CSP	GICAT	GIREM	giic
64.00	25.0	25.5	31.50	165.00	68.00	82.0	L	1~	3401018		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3401018		1	32	8				<a href="javascript:OpenDxf('3401018', 'TGTBQ 25L-R-D82-JHP' , 'IscarDxf' , '3401018-TGTBQ 25L-R-D82-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3401018&itemDesc=TGTBQ 25L-R-D82-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3401018&itemDesc=TGTBQ 25L-R-D82-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

Spare Parts
	3365983	SR ISO 14580 M4X10	Clamp screw	Details
	7006583	SIDE THRUST PIN 3mm	Pin	Details
	3368387	SR M4X9-SEAL-JHP	Torx screw	Details
	7002090	BLD T20/S7	Torx blade	Details
For limiting torque, use optional 7007026 BLD 6 T20 blade & 7007221 TSA 6 5-14 handle.
	7002244	SW6-SD	Handle	Details
	0600446	O-RING 10X2 NBR	O-ring	Details
	7006324	JHP COPPER SEAL 1/8"	Seal washer	Details
