ISCAR Cutting Tools - Metal Working Tools - SCD-ACP3FL (3XD) : 3411544

Geometry Checker ×

Family Designation: SCD-ACP3FL (3XD)

Solid carbide drills with coolant holes, drilling depth 3xD (available in North America only)

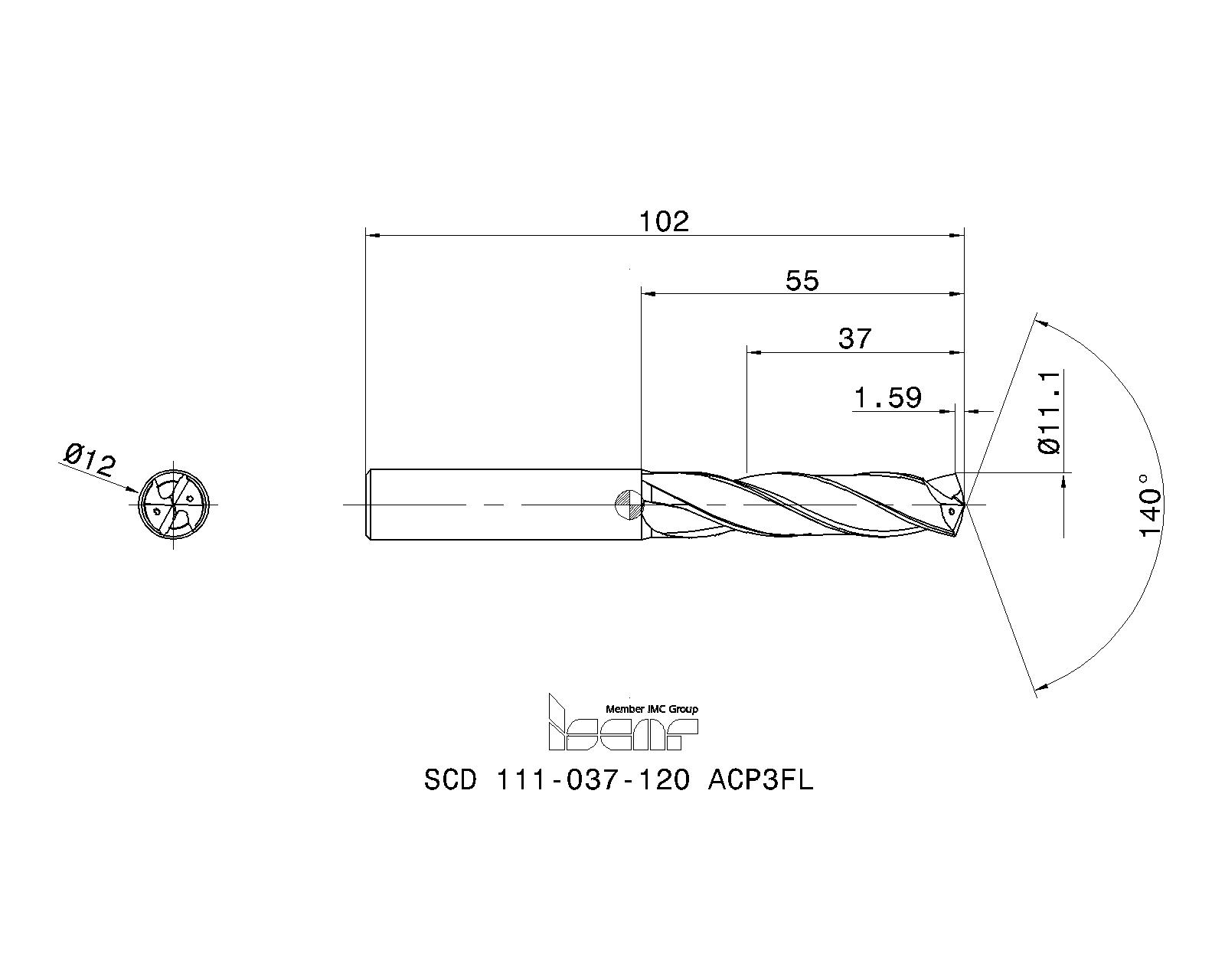

Item Designation: SCD 111-037-120 ACP3FL

DC	DCONMS	OAL	LU	LCF	PL	LS	CSP	HAND	NOF	CCMS	GRDMFG	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
11.10	12.00	102.00	37.00	55.0	1.590	47.0	1~	R~	2~	ZYL01G1200h$06~	IC608 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiCrSiN ~	3411544		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3411544	IC608			8	208	0				<a href="javascript:OpenDxf('3411544', 'SCD 111-037-120 ACP3FL' , 'IscarDxf' , '3411544-SCD 111-037-120 ACP3FL');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		Not Available<br /><a href="javascript:openDxfRequest('3DL','3411544', 'SCD 111-037-120 ACP3FL' , 'M');">3D Required</a>	<a href="FilesDownload.aspx?FileType=P&cat=3411544&itemDesc=SCD 111-037-120 ACP3FL"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Based on DIN 6537 standard
