Family Designation: SDJCR/L Screw lock tools carrying 55° diamond inserts with 7° clearance angle.

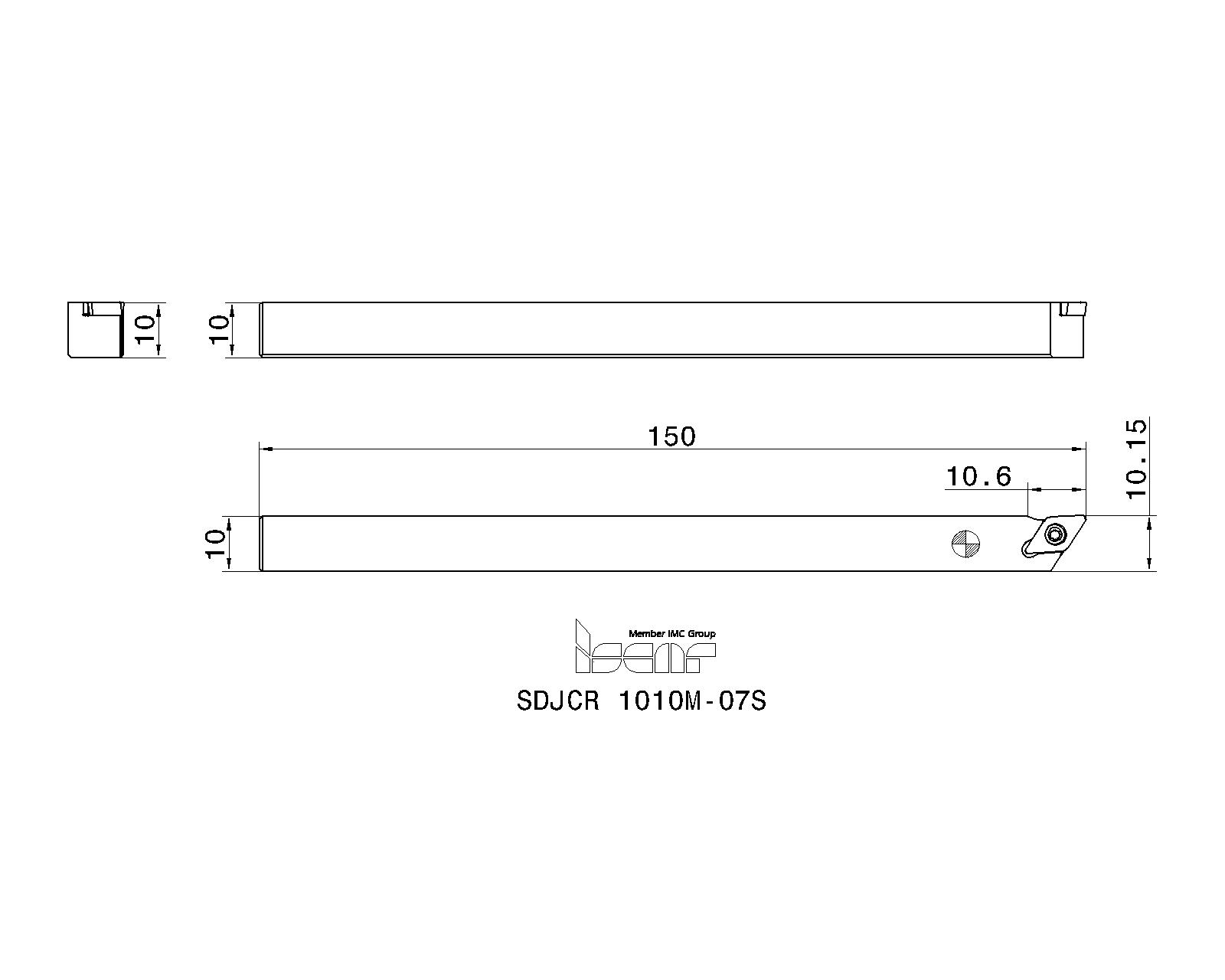

Right-hand shown

Right-hand shown

Item Designation: SDJCR 1010M-07S
IC H HF B LF LH WF GAMP GAMF HAND KAPR  CCMS CSP  MIID  GICATGIREMgiic
6.35~10.010.010.0150.0010.610.150.00.0R~93.0~---~~DCMT 070202-SM3419654 For Swiss-type machines 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3419654 6480200<a href="javascript:OpenDxf('3419654', 'SDJCR 1010M-07S' , 'IscarDxf' , '3419654-SDJCR 1010M-07S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3419654&itemDesc=SDJCR 1010M-07S"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3419654&itemDesc=SDJCR 1010M-07S"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
For Swiss-type machines
Items Per Package : 1
3D Representation
Assembly Video
2D Representation
  Spare Parts
7000217SR 14-548Torx screw
Details
Recommended tightening torque:0.9 N*m
7000271T-7/5Torx key flag
Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
