Family Designation: SC-HYDRO-HP Sealed reduction sleeves for hydraulic chucks.


 CONCENTRICITY 0.003 MM (.00012  85 BAR (1230 PSI) MAX.

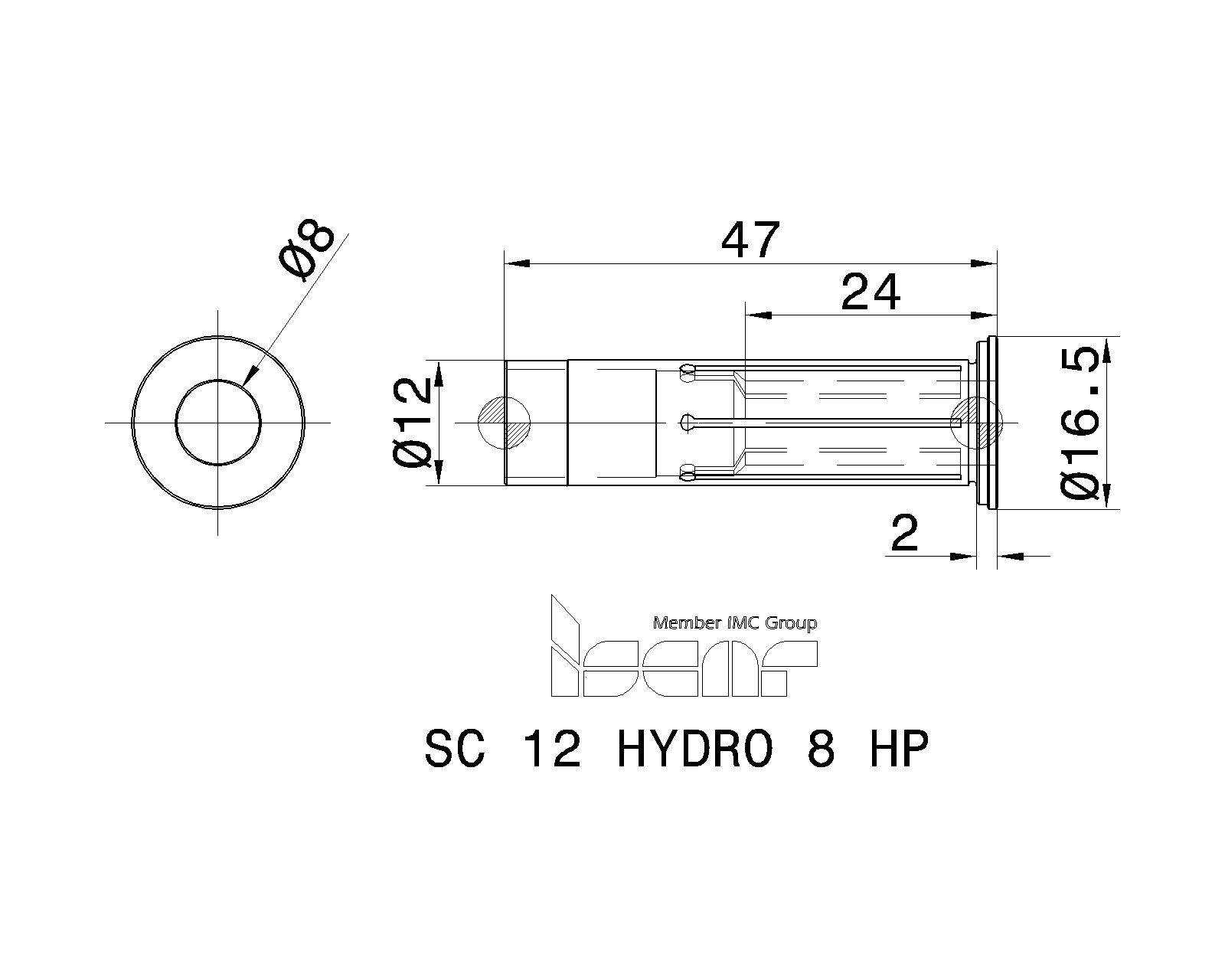

Item Designation: SC 12 HYDRO 8 HP
DCONMS DCONWS LSCWS OAL BD LB CSP  GICATGIREMgiic
12.008.0025.547.0016.502.01~3425535 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3425535 6039<a href="javascript:OpenDxf('3425535', 'SC 12 HYDRO 8 HP' , 'IscarDxf' , '3425535-SC 12 HYDRO 8 HP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3425535&itemDesc=SC 12 HYDRO 8 HP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3425535&itemDesc=SC 12 HYDRO 8 HP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
Any cylindrical, Weldon shanks only 6-20 mm may be clamped to the sleeves
3D Representation
Assembly Video
2D Representation
